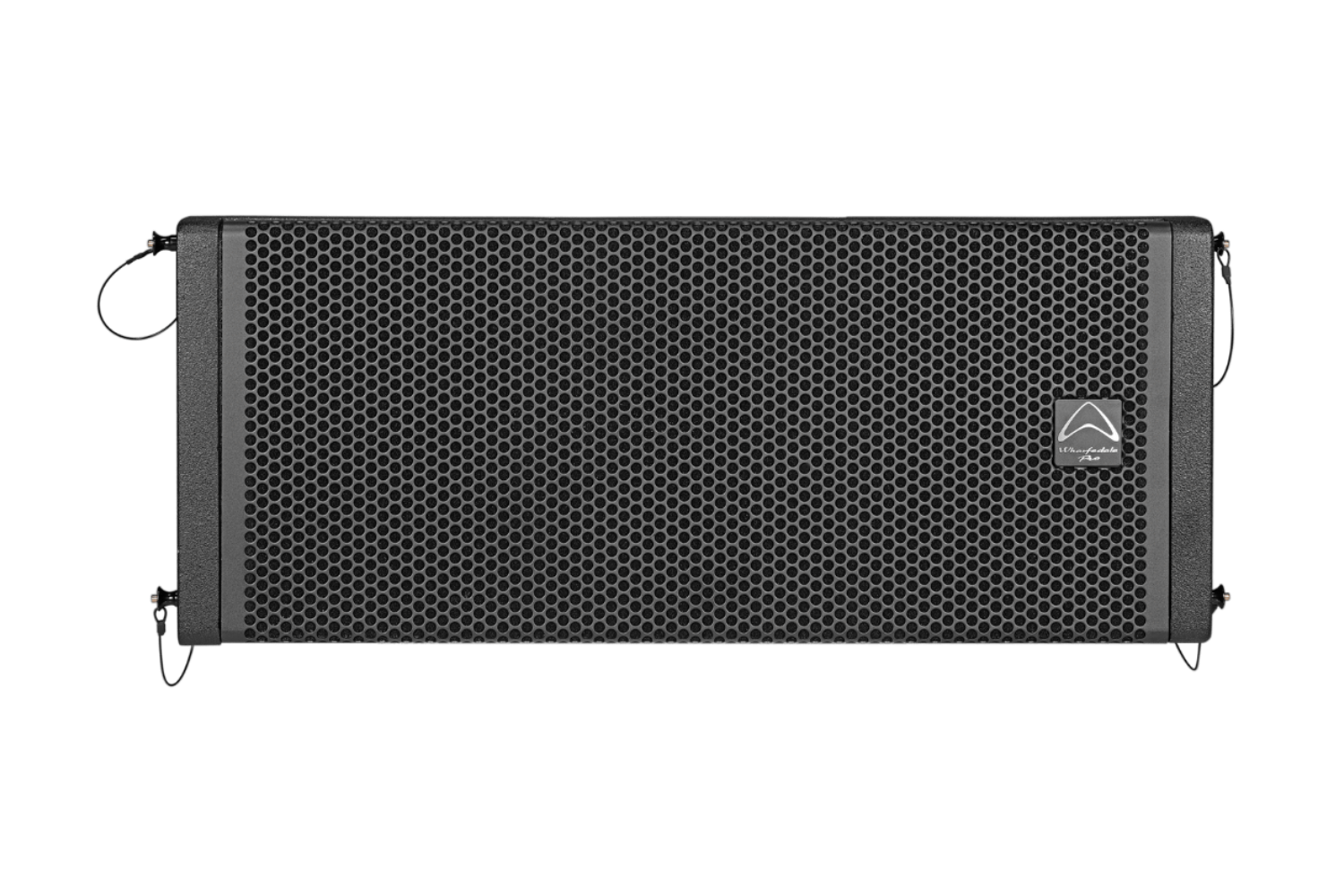

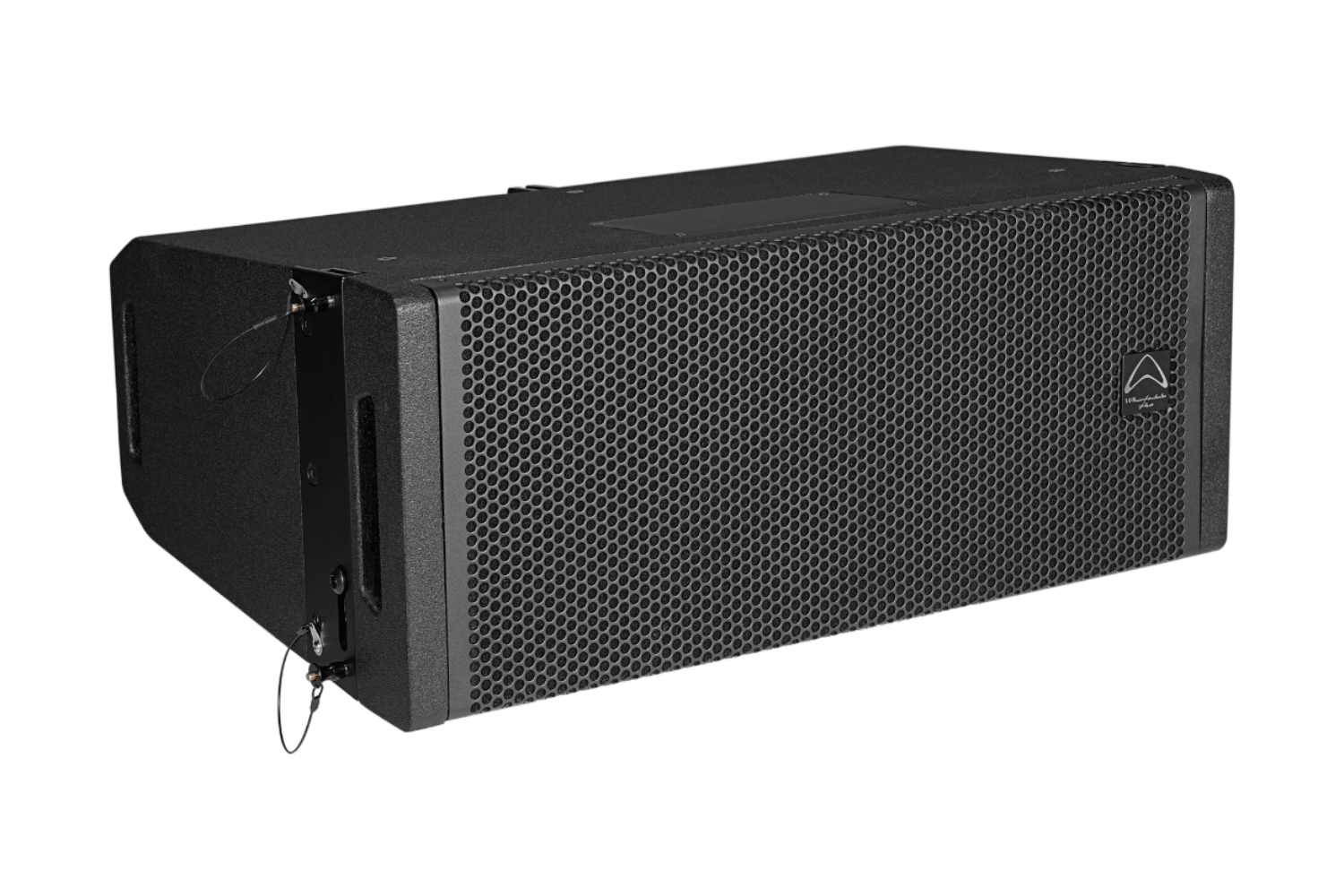

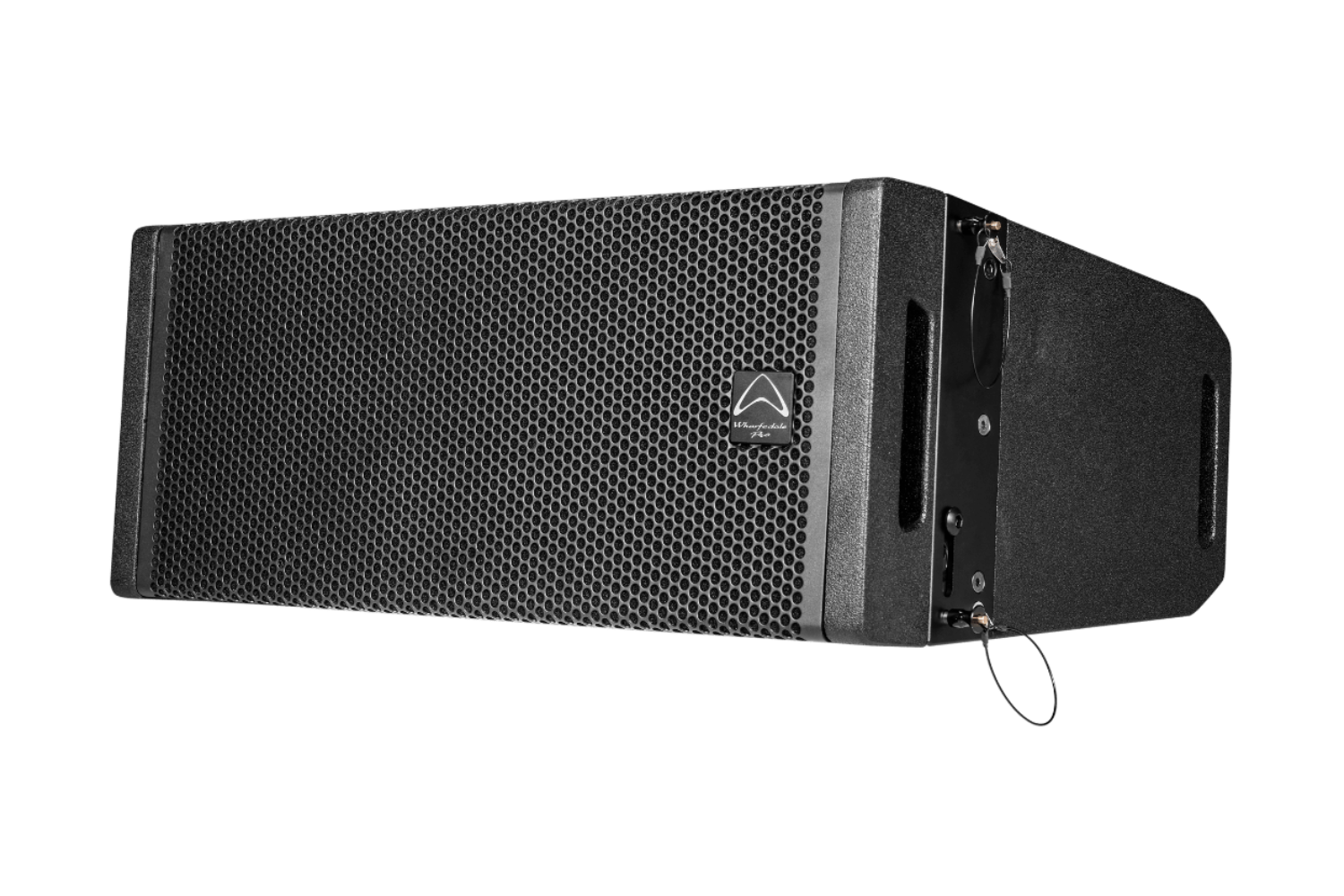

The WLA-210XP combines two 10-inch low-frequency drivers with a 3-inch voice-coil high-frequency compression driver. Its EVO-Fold waveguide provides controlled coverage, while the birch enclosure and rigging system support use in a properly designed line array.
Key features
- Two 10-inch LF drivers and titanium-diaphragm HF compression driver
- Passive or bi-amp operation
- 800 W continuous / 1600 W programme / 3200 W peak in passive mode
- 100-degree horizontal coverage
- Birch plywood enclosure with integrated three-point rigging
Technical details
- Nominal impedance: 8 ohm in passive mode
- Frequency response: 58 Hz-20 kHz (+/-3 dB)
- Maximum SPL: 138 dB at 1 m
Sold as one passive array element. Requires suitable external amplification and system processing. Fly frame and other rigging accessories are sold separately.
