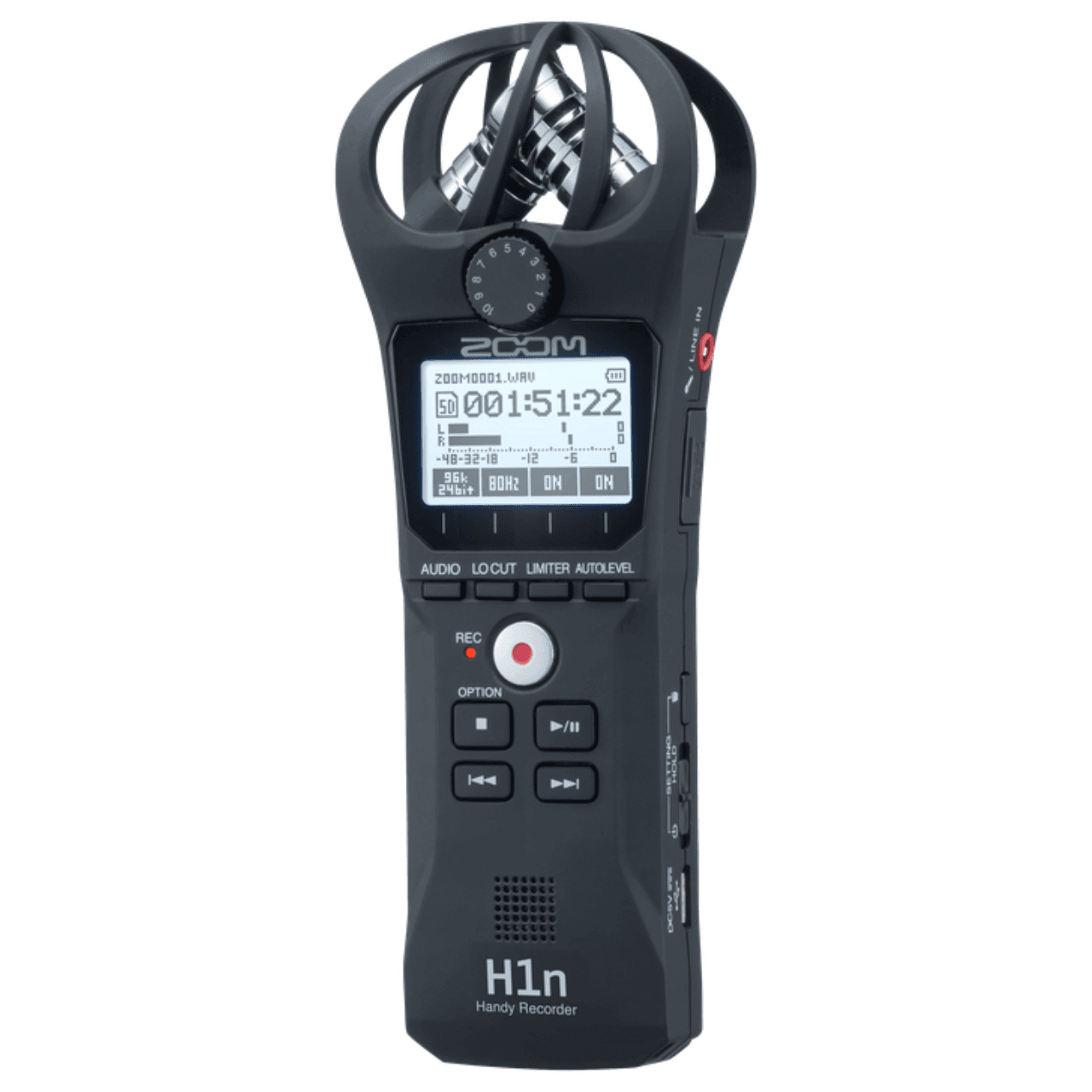

The H1n-VP

The World’s Most Popular Recorder Now Includes Everything!

Key Features

• One-touch button controls
• 1.25” monochrome LCD display
• Intuitive menus for easy operation

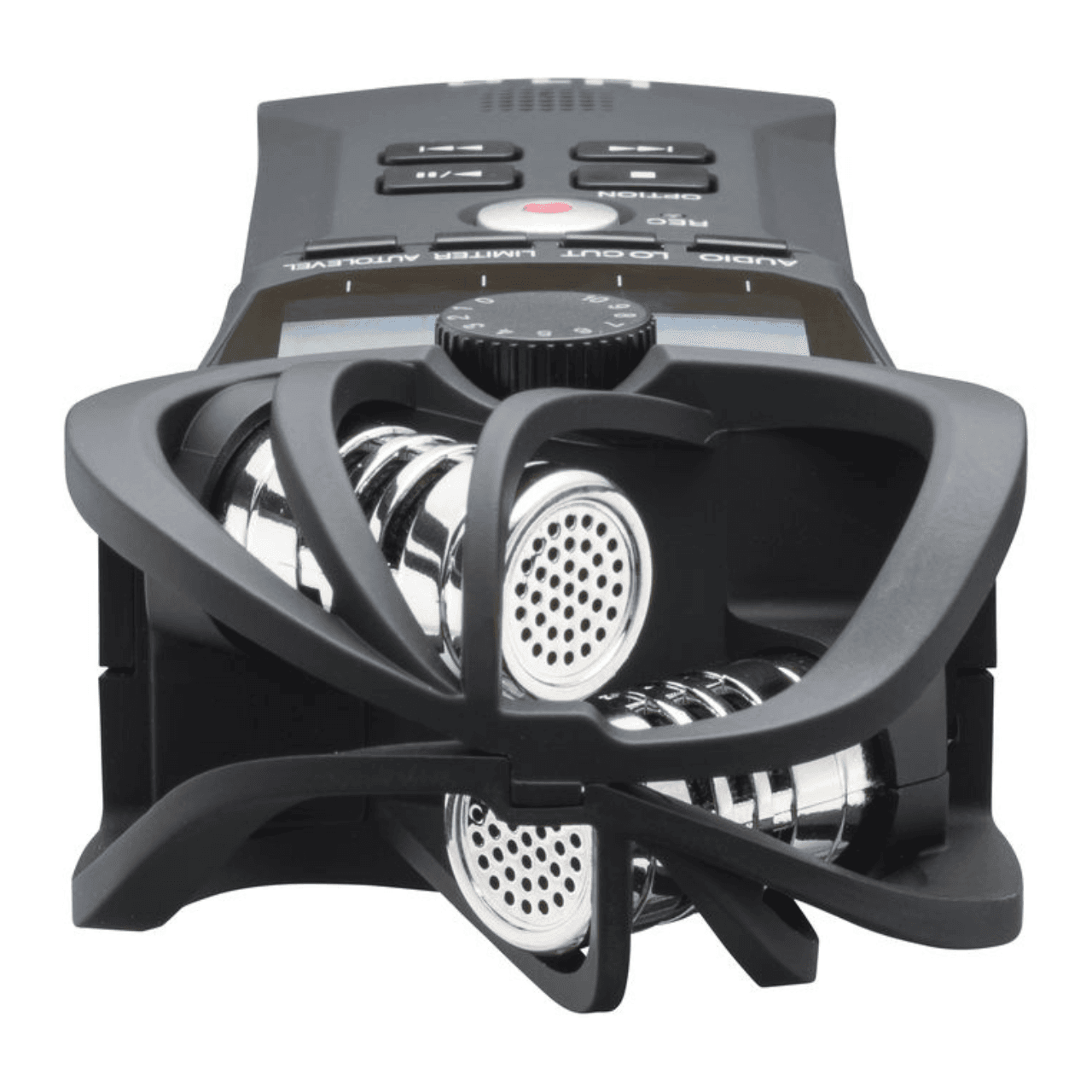

• Stereo X/Y 90˚microphones handle up to 120 dB SPL
• Stereo ⅛” Mic/Line In mini phone jack
• Stereo ⅛” Phone/Line Output jack with dedicated volume control
• Limiter button for input signal up to 120 dB SPL
• Playback Speed Control, Voice Emphasize Filter, and Stereo Bounce functions
• Auto-Record, Pre-Record, and Self-Timer functions
• Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
• Tone generator for filmmaking use with DSLR and video cameras
• Records directly to SD and SDHC cards up to 32 GB
• Micro USB port for data exchange to and from computer and use as an audio interface
• Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
• Up to 10 hours of operation with alkaline batteries

More Value for Creators

The H1n is loved by musicians, podcasters and filmmakers because of its incredible audio, ease of use and small size. Now the H1n-VP includes a padded shell case, micro USB cable, AD-17 Power Adapter and foam windscreen, offering creators more value than ever before.

Zoom’s Flagship Sound

The H1n is the ultimate take-anywhere recorder for every creator’s gear bag. Its X/Y microphones capture high-quality stereo sound, supporting up to 24-bit/96 kHz.

Just Press Record

One-touch button controls make it simple to record songs, audio-for-film, lectures, podcasts and more. Its monochromatic 1.25” LCD display is easy to read even in the brightest lighting conditions.

Get Loud

An advanced onboard limiter offers distortion-free recording up to 120 dB SPL– the same volume as a jet engine during take off. A low-cut filter helps eliminate pops and unwanted low frequency rumble.

Unlimited Overdubbing

The H1n is the perfect song-writing companion, allowing you to build compositions and layer audio with the overdub function.

Transcription Made Easy

The H1n playback speed adjustment helps you transcribe music, interviews and other types of recordings without altering pitch.

Don’t Miss the Moment

You can set the H1n to auto-record, pre-record and use the self-timer to make sure you always capture the moment.

Mark and Sync

The built-in tone generator makes it easy to calibrate your H1n and camera audio levels.

The Connections You Need

• An ⅛” stereo mic/line input lets you record external microphones or other sound sources. Connect the H1n via USB when recording and streaming on PC, Mac and iOS devices.
• Connect headphones via the ⅛” headphone output with dedicated volume control. You can also use the H1n’s built-in speaker to listen to your recordings.

What’s In The Box

• H1n Handy Recorder
• Windscreen
• AD-17 AC adapter
• USB cable
• Padded-shell case

General Specifications

• Simultaneous Playback Tracks:  2
• Simultaneous Recording Tracks:  2
• Functions
  • Lo-cut Filter, Limiter, Test Tone, Slate-Tone, Voice Emphasize
  • Filter, Playback Position Skipping, Playback Speed Control, A-B Repeat, Auto REC Level, Marker, Auto-Record, Pre-Record, Self-Timer, Overdubbing
• Recording Formats
  • WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96
  • kHz/24-bit
• A/D Conversion:  24-bit, 128x oversampling
• D/A Conversion:  24-bit, 128x oversampling
• Signal Processing:  32-bit
• Recording Media
  • microSD/microSDHC cards (Class 4 or higher, up to 32
  • GB
• Display:  1.25″ monochrome LCD (96 x 64)
• Built-In Stereo Mic
  • Unidirectional condenser, 90° XY stereo format
  • Gain: -∞ dB to +39 dB
  • Maximum sound pressure level: 120 dB SPL
• Inputs
  • 1/8″ stereo phone jack
  • Rated Input Level: -∞ dB to -39 dBm
  • Input Impedance: 2 kΩ
  • Plug-in power supported (2.5 V)
• Built-In Speaker
  • Built-in 500 mW mono speaker
  • Output impedance: 8 Ω
• Outputs
  • 1/8″ stereo phone jack (combined line/headphones)
  • Rated Output Level: 20 mW + 20 mW into 32Ω load
  • Output Impedance: 10 kΩ or more
• USB
  • Micro USB port
  • Mass Storage Class Operation: USB 2.0 high speed
  • Audio Interface Operation: 44.1/48kHz sampling rate, 16-bit depth, 2-in/2-out
  • Transfer Method: asynchronous
• Power Requirements
  • 2 AAA batteries (alkaline, nickel-metal hydride rechargeable,
    or lithium)
  • AC adapter (ZOOM AD-17): DC 5V/1A
  • USB bus power
• Battery Life (Alkaline Batteries)
  • Approximately 10 hours (continuous recording time using built-in mic, 44.1 kHz/16-bit)
• Dimensions (WxDxH):  50mm X 137.5mm X 32mm / 1.9″ X 5.4″ X 1.2″
• Weight:  60g (without batteries) / 0.13lbs
