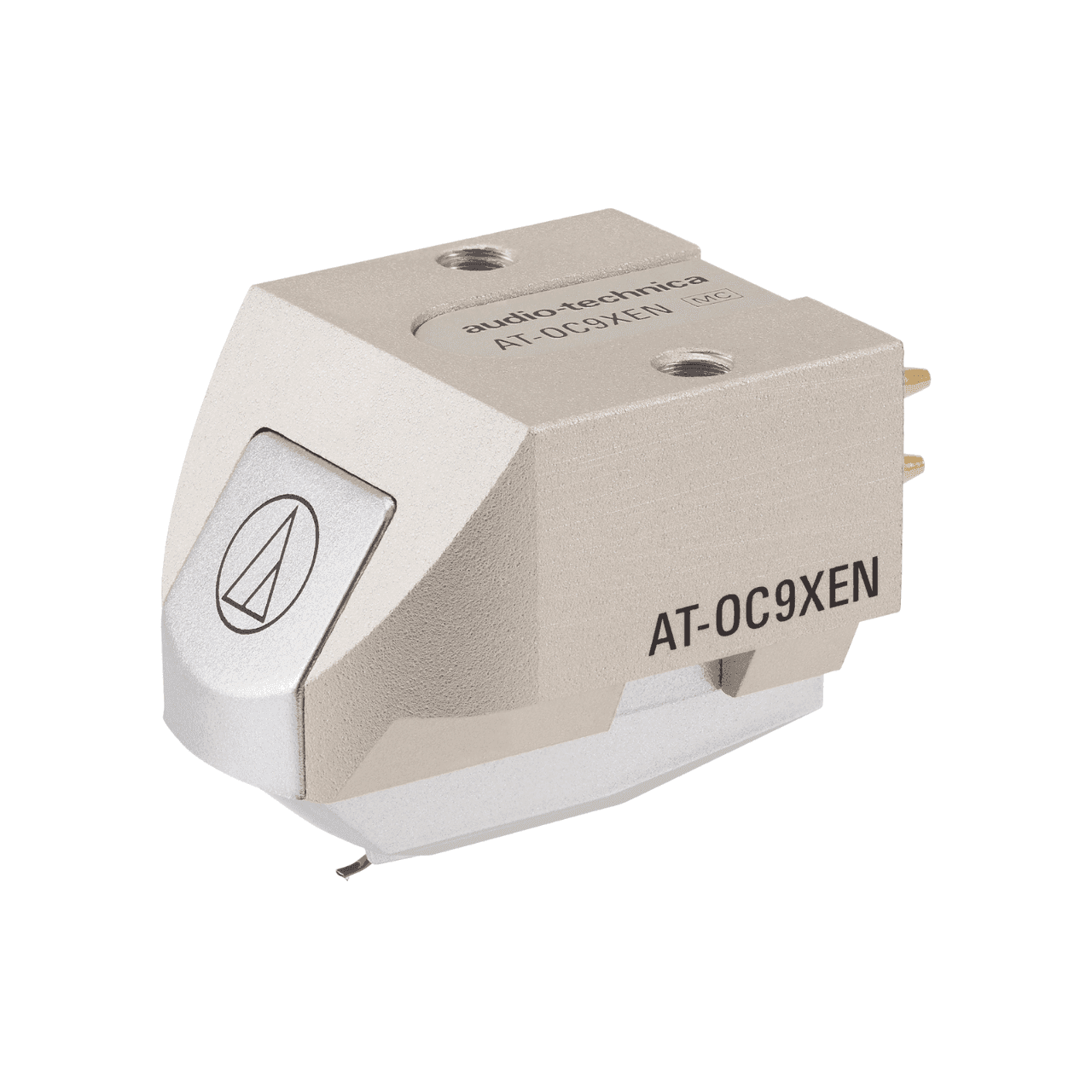

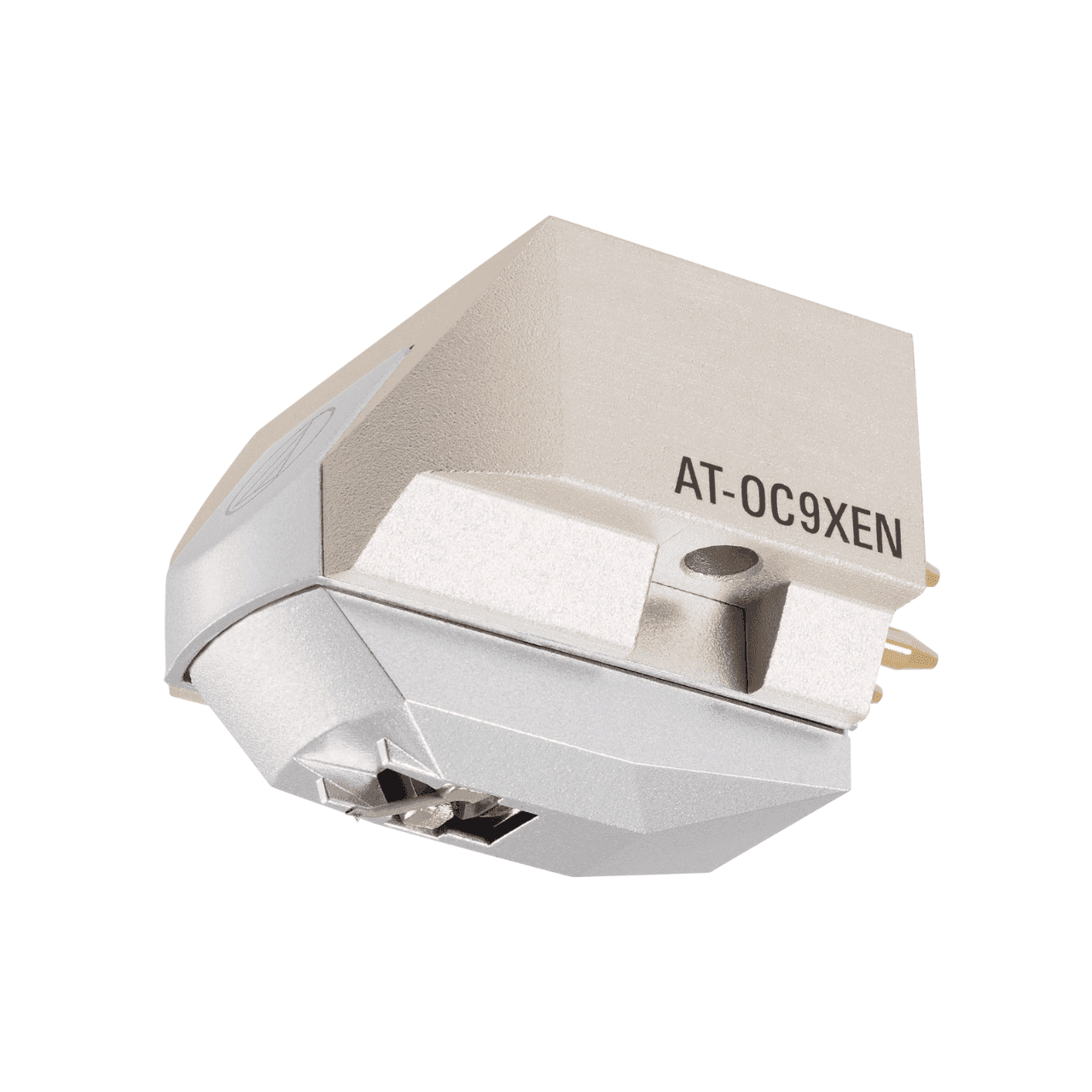

Audio Technica AT-OC9XEN Dual Moving Coil Cartridge

0 customer reviews
Check stock before ordering
View details

R6,665.00


Audio Technica AT-OC9XEN Dual Moving Coil Cartridge with Nude Elliptical Stylus



Availability: Out of stock

Add to quote
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Categories: Brand:

Product Description

AT-OC9XEN

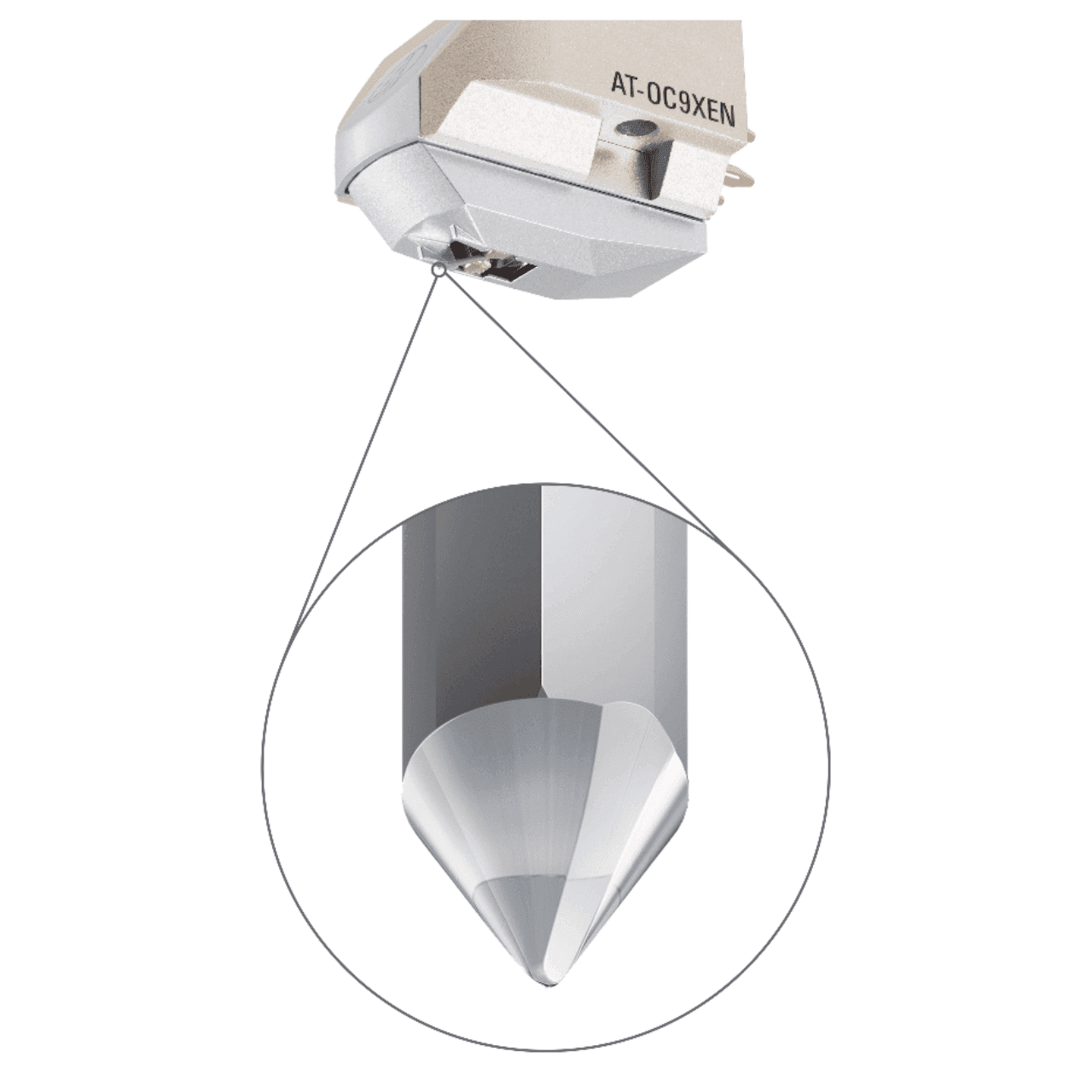

The AT-OC9XEN Dual Moving Coil cartridge with nude elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and pure iron yoke that increase the magnetic energy, and the low-mass nude elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

General Specifications

  • Frequency Response:  20 – 30,000 Hz
  • Channel Separation:  25 dB (1 kHz)
  • Vertical Tracking Angle:  20°
  • Vertical Tracking Force:  1.8-2.2 g (2.0 g standard)
  • Stylus Construction:  Nude square shank
  • Recommended Load Impedance:  Min 100 Ohms
  • Coil Impedance:  12 Ohms (1 kHz)
  • DC Resistance:  12 Ohms
  • Coil Inductance:  25 μH (1 kHz)
  • Output Voltage:  0.35 mV (@ 1 kHz, 5 cm/sec)
  • Output Channel Balance:  1.5 dB (1 kHz)
  • Stylus Shape:  Elliptical Nude
  • Cantilever:  Aluminium Pipe
  • Static Compliance:  20 x 10 – 6 cm / dyne
  • Dynamic Compliance: 9 x 10 – 6 cm / dyne (100 Hz)
  • Mounting:  1/2” centre  / Threaded inserts
  • Cartridge Weight:  7.6g
  • Dimensions (WxLxH):  16.8mm X 25.7mm X 17.3mm
  • Accessories Included: 1 non magnetic screw driver; 1 brush; 2 washers; 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm; 1 plastic protector
  • Body Material:  Aluminum
  • Model: AT-OC9XEN
  • Stylus Size: 0.3 x 0.7 mil
  • Terminal Pins:  Brass
  • Wire Used for Coil:  PCOCC (Copper by Ohno Continuous Casting process.)
