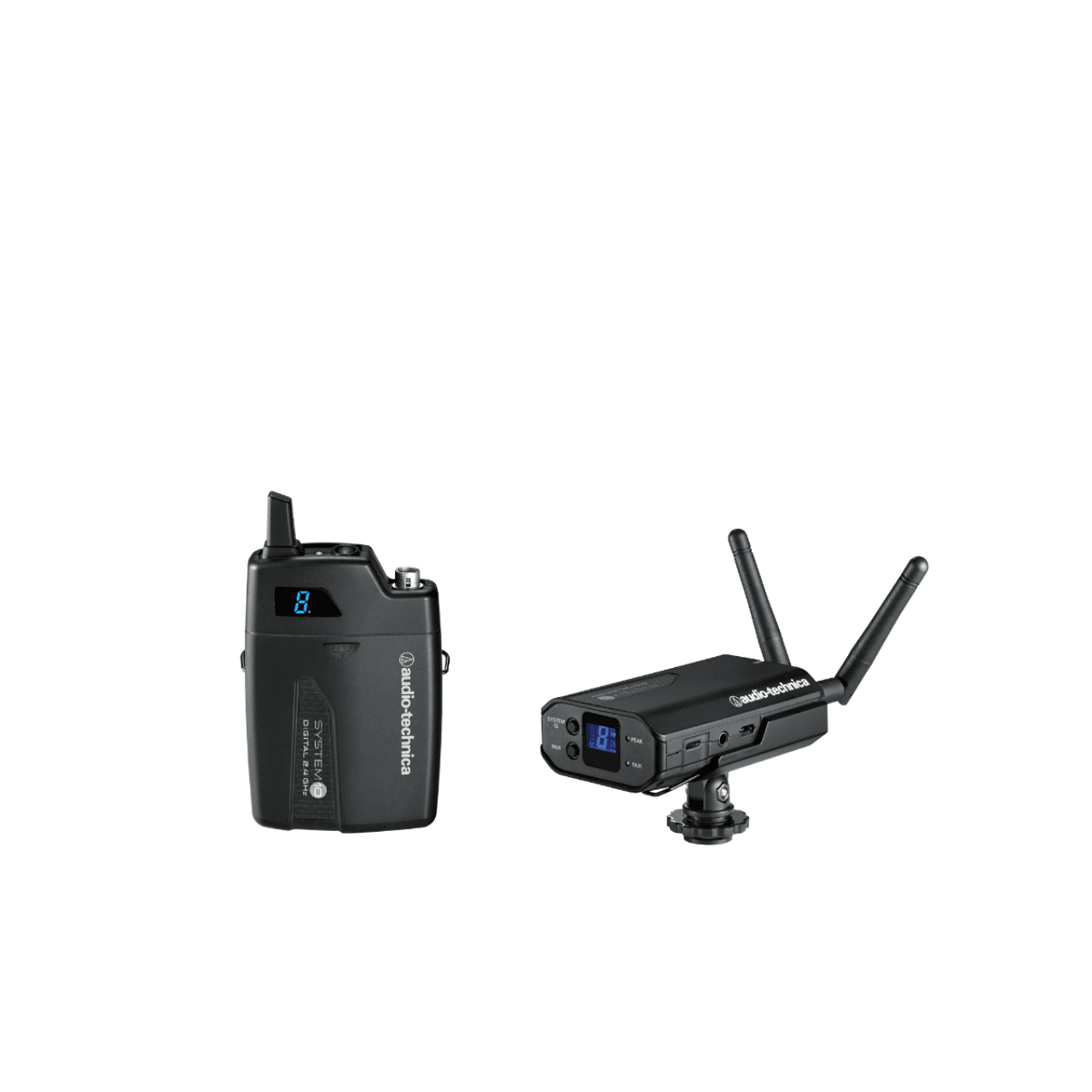

ATW-R1700 receiver and ATW-T1001 body-pack transmitter. Select a microphone or cable with a cW-style locking 4-pin connector to complete the system

General Specifications

• Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
• Frequency Response: 20 Hz to 20 kHz Depending on the microphone type
• Operating Range: 30 m (100′) radius, 60 m (200′) diameter typical – Open-range environment with no interfering signals
• Total Harmonic Distortion: <0.05% typical
• Operating Temperature Range: 0° C to +40° C (32° F to 104° F) – Battery performance may be reduced at very low temperatures
• Audio Sampling: 24 bits / 48 kHz

Handheld Transmitter

• RF Power Output: 10 mW
• Spurious Emissions: Following federal and national regulations
• Battery Type: Two 1.5V AA not included
• Battery Life: >7 hours (alkaline) Depending on battery type and use pattern
• Dimensions: 254.8 mm (10.03″) long, 50.0 mm (1.97″) diameter
• Net Weight: 280 grams (9.9 oz) without batteries
• Accessories Included: AT8456a Quiet-Flex™ stand clamp

Body Pack

• RF Power Output: 10 mW
• Battery Life: >7 hours (alkaline) Depending on battery type and use pattern
• Battery Type: Two 1.5V AA not included
• Dimensions: 70.2 mm (2.76″) W x 107.0 mm (4.21″) H x 24.9 mm (0.98″) D
• Input Connections: Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
• Net Weight: 100 grams (3.5 oz) without batteries
• Spurious Emissions: Following federal and national regulations

Receiver

• Receiving System: Diversity (frequency/time/space)
• Maximum Output Level: 3.5 mm (1/8″), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
• Power Supply: 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
• Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
• Dimensions: 56.0 mm (2.20″) W x 91.4 mm (3.60″) H x 27.8 mm (1.09″) D
• Weight: 105 grams (3.7 oz)
• Accessories Included: Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8″) stereo cable
• Battery Current/Life
  • 12 hours – Depending on environmental conditions
  • Battery Charging Time: 4 hours 30 minutes – Depending on environmental conditions
  • Charging Temperature Range: 5° C to +35° C (41° F to 95° F)
• Battery Type Internal Battery
  • 3.7V rechargeable Li-ion battery
  • Battery Rating: 5.5 Wh
  • 1,460 mAh
