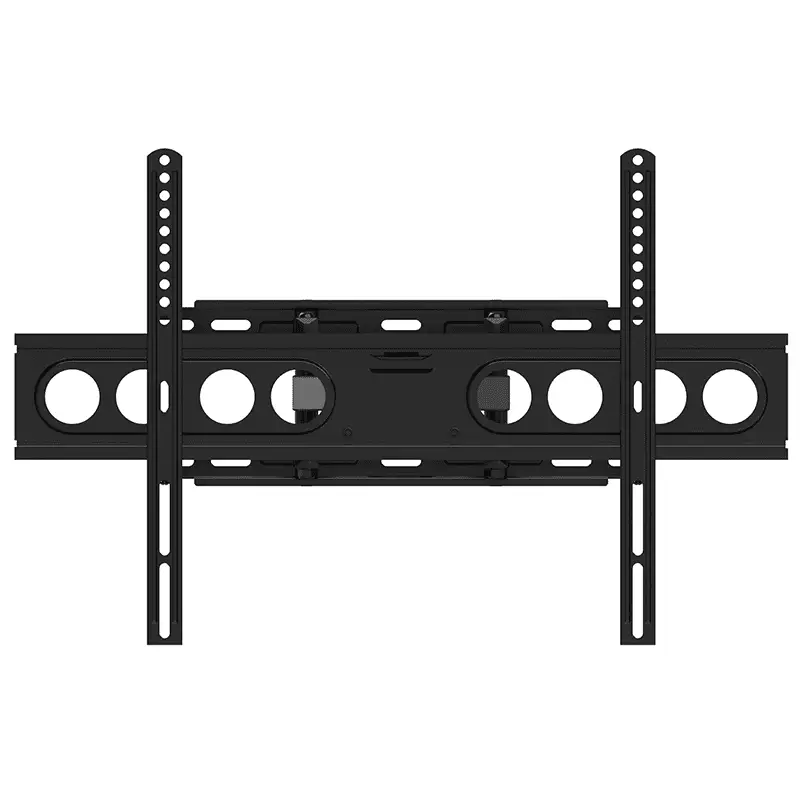

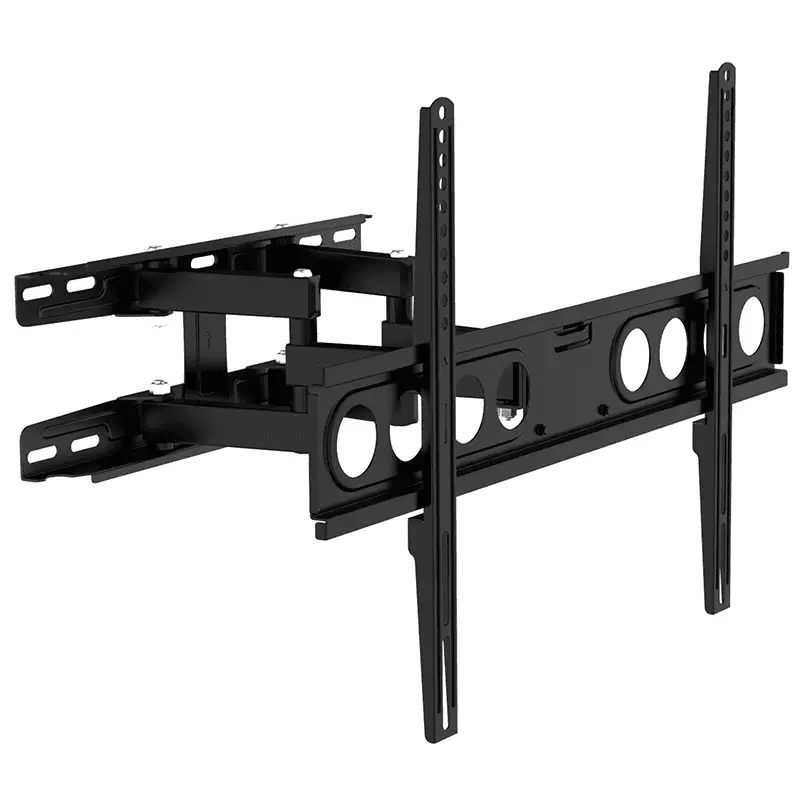

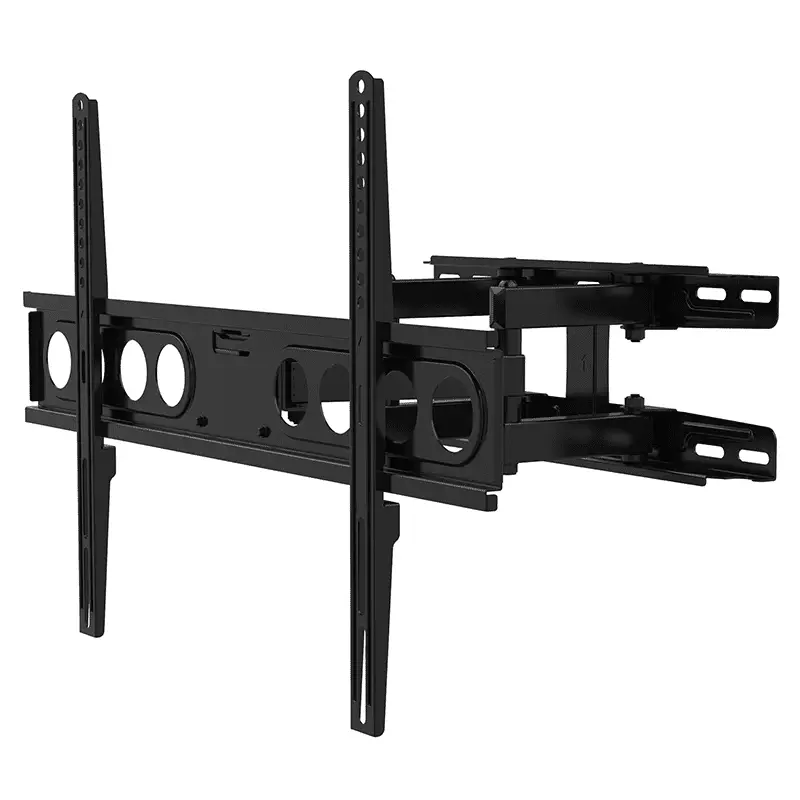

AVLINK FML600 TV WALL BRACKET CANTILEVER 32INCH – 75INCH

Full motion double arm design with a larger wall fixing plate for more secure installations on studded and concrete walls and compatible with TV’s up to 35kg in weight and with VESA hole patterns up to 600 x 400. Easy to extend, tilt and swivel this versatile bracket provides the optimum viewing angle from any seat in the room and comes supplied with a wide range of fixings for many applications.

FEATURES:

• Larger wall fixing plate for more secure installations on studded and concrete walls
• Compatible with VESA hole patterns up to 600 x 400
• Maximum weight load 35kg
• -5° to 15° tilt mechanism
• 90° Swivel range
• Wide range of fixings supplied

SPECIFICATIONS:

• Screen size: 32in to 75in
• Max. VESA: 600 x 400
• Max. weight load: 35kg
• Distance from wall: 68-300mm
• Tilt range: -5°~15°
• Swivel: 45° to -45°
• Wall plate dimensions: 430 x 158mm (W x H)
• Dimensions: 654 x 420mm (W x H)
• Weight: 3.6kg
