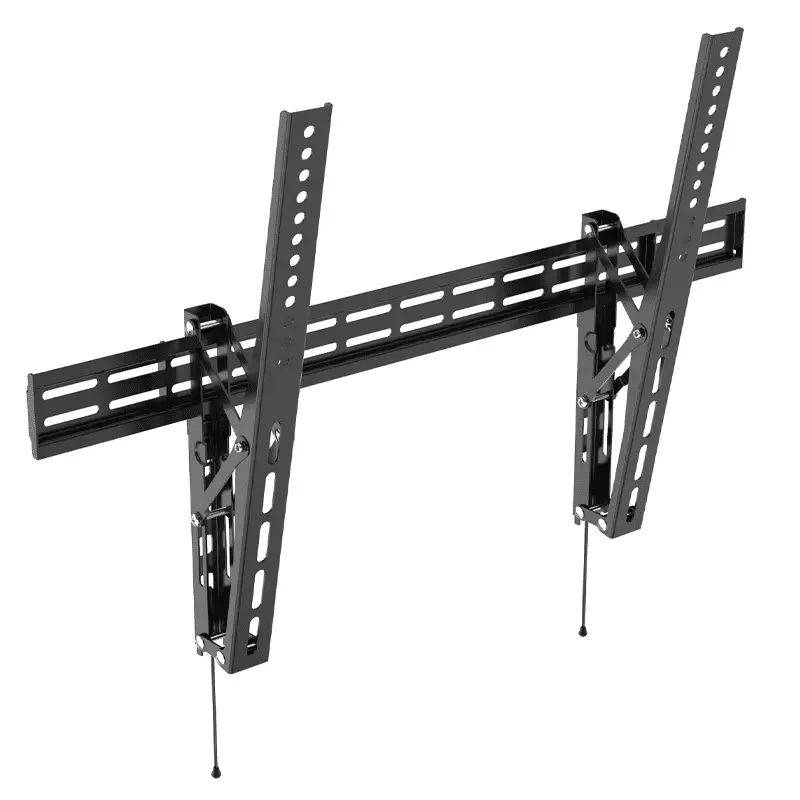

AVLINK LPTL600 TV WALL BRACKET TILT 32INCH – 70INCH

Easy to assemble and install this professional tilting wall mounting is specifically designed for todays lighter and slimmer TVs up to 70″ in screen size. The self-locking mechanism can be opened by simply pulling on 2 drawstrings that hang either side of the unit making removal of the TV quick and hassle free. The smooth, accurate tilting mechanism provides an additional 12° tilt angle should your mounting position require it.

FEATURES:

• Specifically designed for todays slimmer and lighter TVs from 32″ to 70″
• Automatic self locking mechanism
• Low profile design sits only 36mm from the mounting surface
• Maximum weight load 35kg
• Maximum 600×400 VESA compatible
• Up to 12° tilt angle adjustment if required
• Wide range of fixings supplied

SPECIFICATIONS:

• Max. VESA: 600×400
• Max. weight load: 35kg
• Screen size: 32″ to 70″
• Distance from wall: 36mm
• Tilt angle adjustment: 0° to 12°
• Dimensions: 666 x 437mm (W x H)
• Weight: 1.6kg
