CITRONIC QTX-U-PAD MUSIC MIXER USB

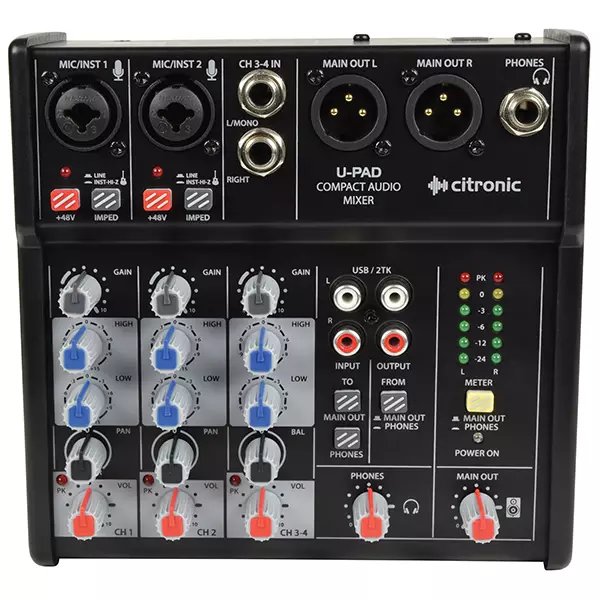

Compact audio mixer with 2 mono inputs and a stereo line input. Both mono channels have a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR connector. High/Low EQ and Pan controls are present on all mono and stereo input channels and a digital input from USB can be routed to main output or phones for monitoring. Analogue output is delivered on a pair of balanced XLR connectors and digitally to the USB for recording. When powered from a laptop USB port, the U-PAD offers high quality recording capability in any environment, even on location.

FEATURES:

• High quality digital stereo input and output via USB
• Studio quality balanced analogue inputs & outputs
• Individually switchable +48V phantom power

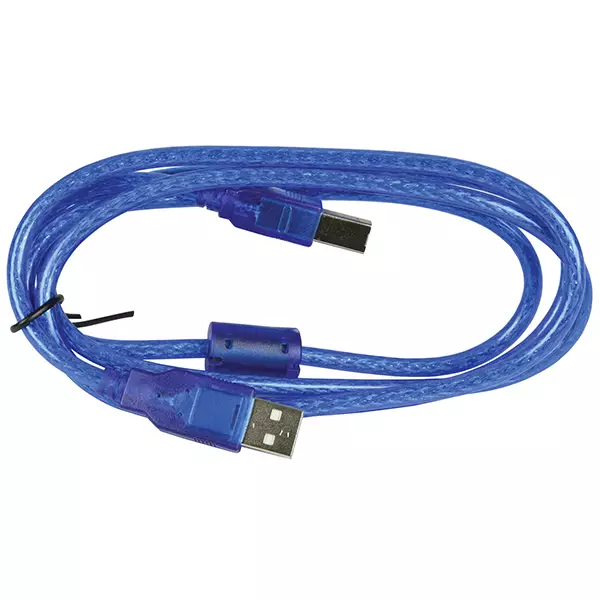

• Supplied with USB lead for power and PC/Mac connection

SPECIFICATIONS:

• Power supply: 5.5Vdc (USB)
• Gain: -14 to +40dB
• EQ: low: ±15dB @ 80Hz
• EQ: high: ±15dB @ 12kHz
• Phantom power: +48V individually switchable (XLR inputs only)
• Input impedance : mic: 2k Ohms
• Input impedance : instrument: 1M Ohms
• Input impedance : line: 20k Ohms
• Frequency response: 20Hz – 20kHz (±0.5B)
• USB computer interface: Duplex stereo in/out AD/DA
• Sampling format: 24-bit, 96kHz max
• THD: +N<0.03% @ 1kHz
• Dynamic range: 102dB
• Crosstalk : stereo: 92dB
• Output: Left + Right balanced XLR (analogue)
• Output impedance: 120 Ohms

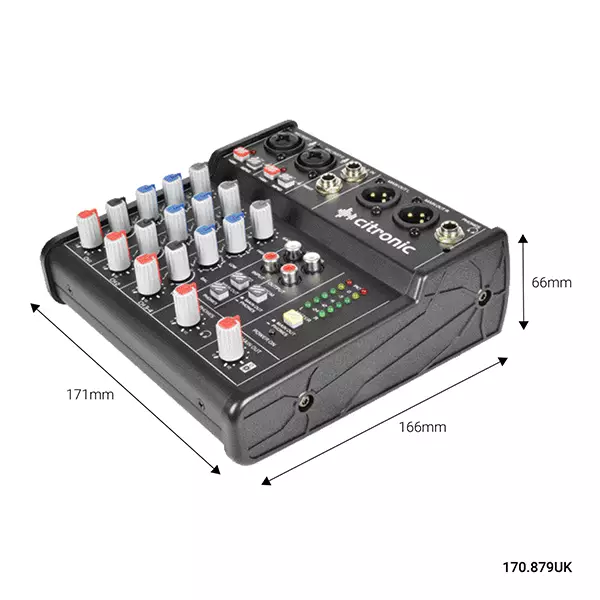

• Dimensions: 171 x 166 x 66mm
• Weight: 900g
