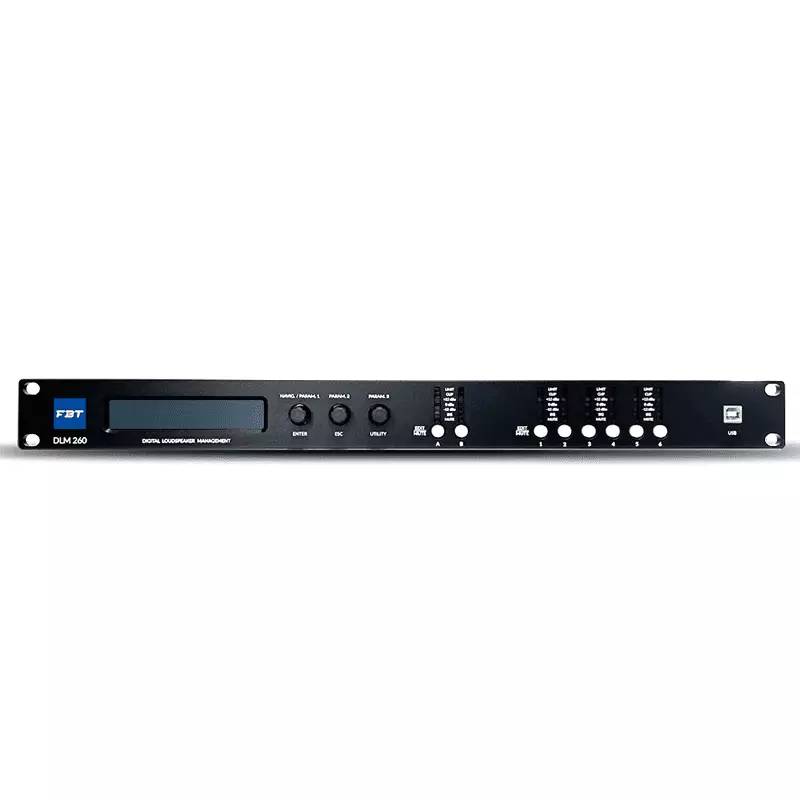

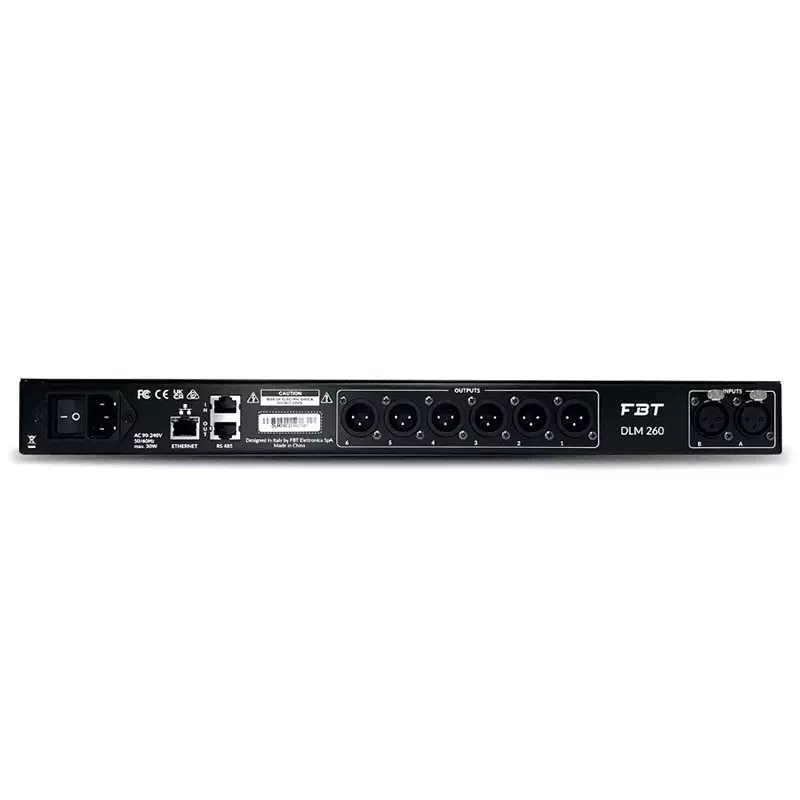

The DLM 260 is a DSP based 2 inputs x6 output digital loudspeaker management processor, ideally suited for fixed installation and live events. The front panel control with LCD display offers users an intuitive interface designed for ease of use and efficiency. The menu system allows for seamless navigation through various settings and options, providing users with a user-friendly experience. When it comes to networking options for DLM 260, users can choose between Ethernet or RS 485 for larger systems. It combines the functions of many conventional products in a compact 1 U unit with extensive PC remote control capabilities. Routing is freely assignable from the two inputs to the six outputs. Input-output equalization is available with a choice of 16 filter options.

FEATURES:

• Professional 2-input, 6-output system processor
• Comprehensive processing options including EQ, Gate, Delay, Dynamic EQ
• Fully assignable matrix routing of both inputs to any output
• IIR, FIR and Linear Phase crossover
• RMS and Peak limiter
• 3-level customizable user modes with individual password protection
• 32 user Presets to store system configurations
• Front panel USB port for quick and easy PC connection

SPECIFICATIONS:

• Input Impedance: 20K Ohm balanced
• Output Impedance: 100 Ohm
• Max. Input Level: +20dBu
• Max. Output Level: +18dBu
• Crosstalk: < -95dB
• Sample Rate: 48kHz
• Signal to Noise Ratio: > 116dB (A weighted)
• Noise Floor: < -95dB (A weighted)
• Common Mode Rejection Ratio: 60dB
• Frequency Response: 20Hz – 20kHz +0.3dB
• THD (+4dBu 1kHz): < 0.003%
• Mains Voltage Range: 90 – 240Vac / 50-60Hz
• Nominal Power Consumption: 30W
