Hybrid PB12A-DSP

12″ Active full range speaker

The Hybrid PB12A-DSP is a powerful 2-way active PA speaker system featuring a Class D amplifier delivering 200 + 50 watts of continuous power. Designed for professional performance, it boasts a robust enclosure, a high-output 12” woofer for deep bass, and a 1.35″ titanium diaphragm tweeter for crisp high frequencies. With dual professional speaker and 1/4” connectors, savable scenes for user EQ and input settings, and a sleek, refined design, it delivers excellent sound quality and durability for any live or installed sound application.

System type: 12″ Active full range speaker
RMS power: 200w + 50w, Bi-amp Class-D, DSP
Woofer: 12″ 60 Oz 3″ Voice coil, 4Ω
Tweeter: 1 X 1.35″ Ti. Diap. Driver, 8Ω
Sensitivity (SPL): 121dB
Frequency range: 50Hz-20kHz
Sound cover range: 90° x 60°
Crossover: 1.5kHz
DSP and AD/DA: 28/56-bit float point; 24-bit AD/DA
DSP presets: Flat, Music, Bass, Sub
Bluetooth: Bluetooth 5.3
Stereo in /Bluetooth control: Pair; Level

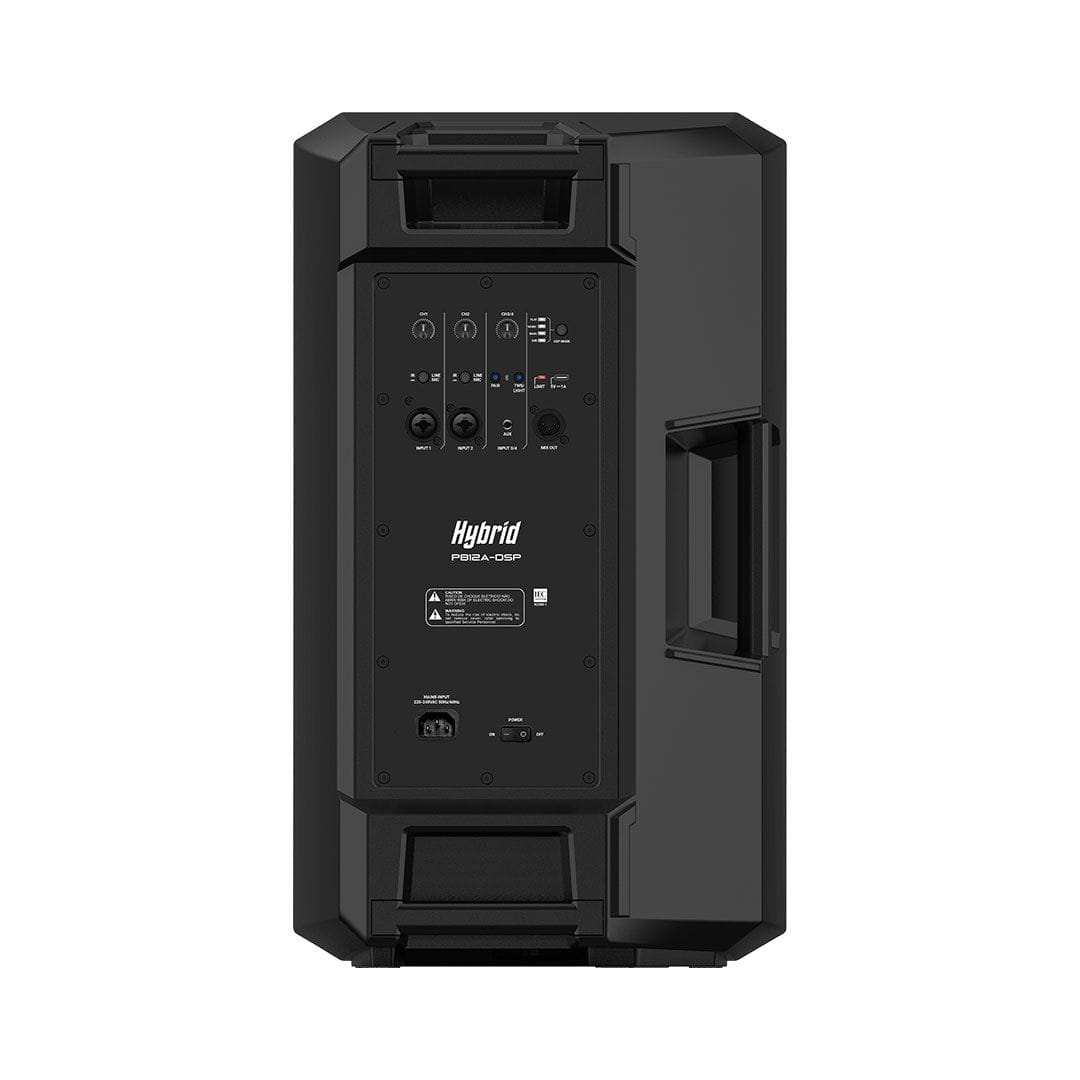

Input: 2 combo XLR/6.35 Jack Mic/Line input; 3.5mm AUX/BT/TWS
Output: XLR
Power supply: 220-240VAC, 50/60Hz
Fuse rating: F5A
Dimensions (H x W x D): 616 x 354.9 x 351.5mm
Weight: 15.2kg
