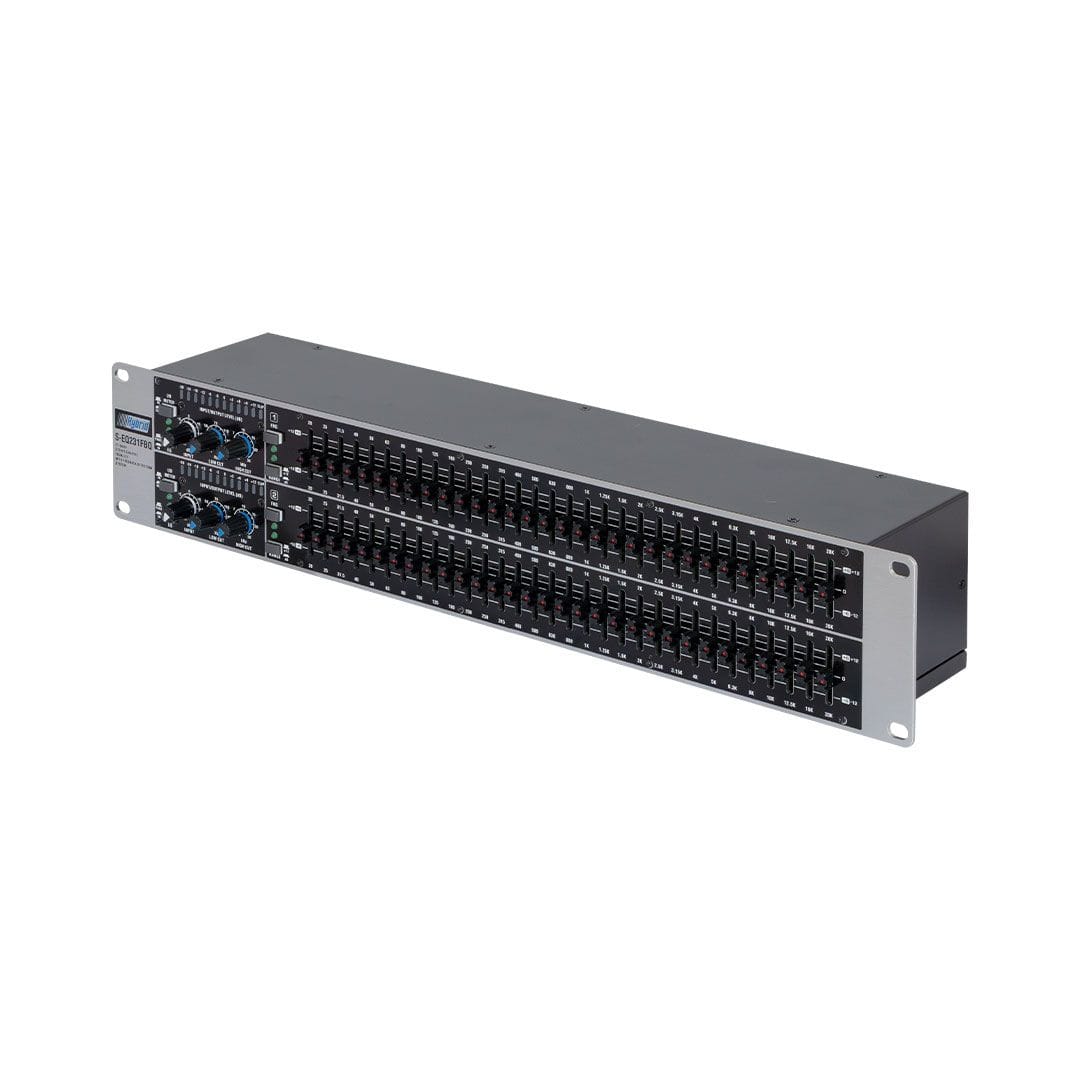

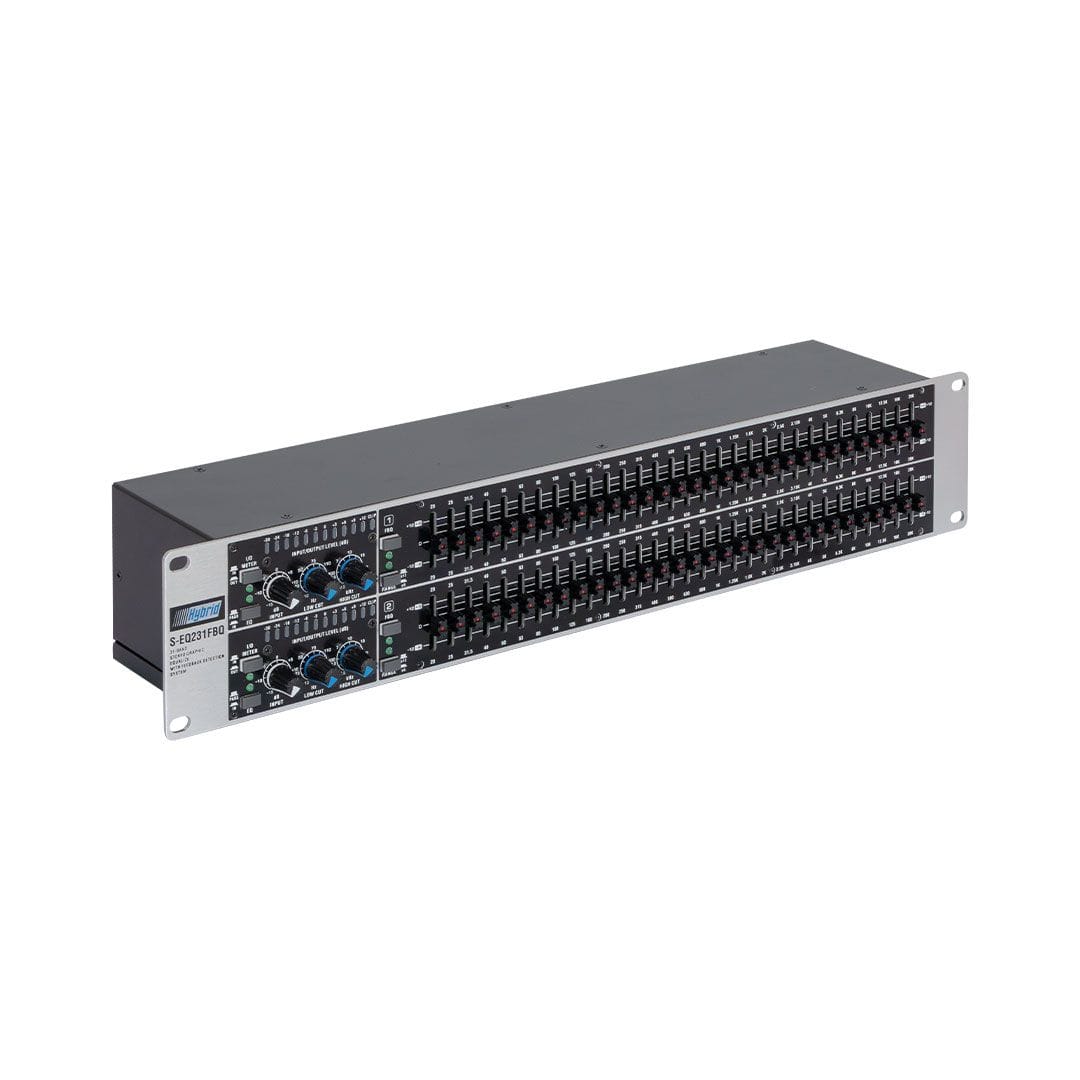

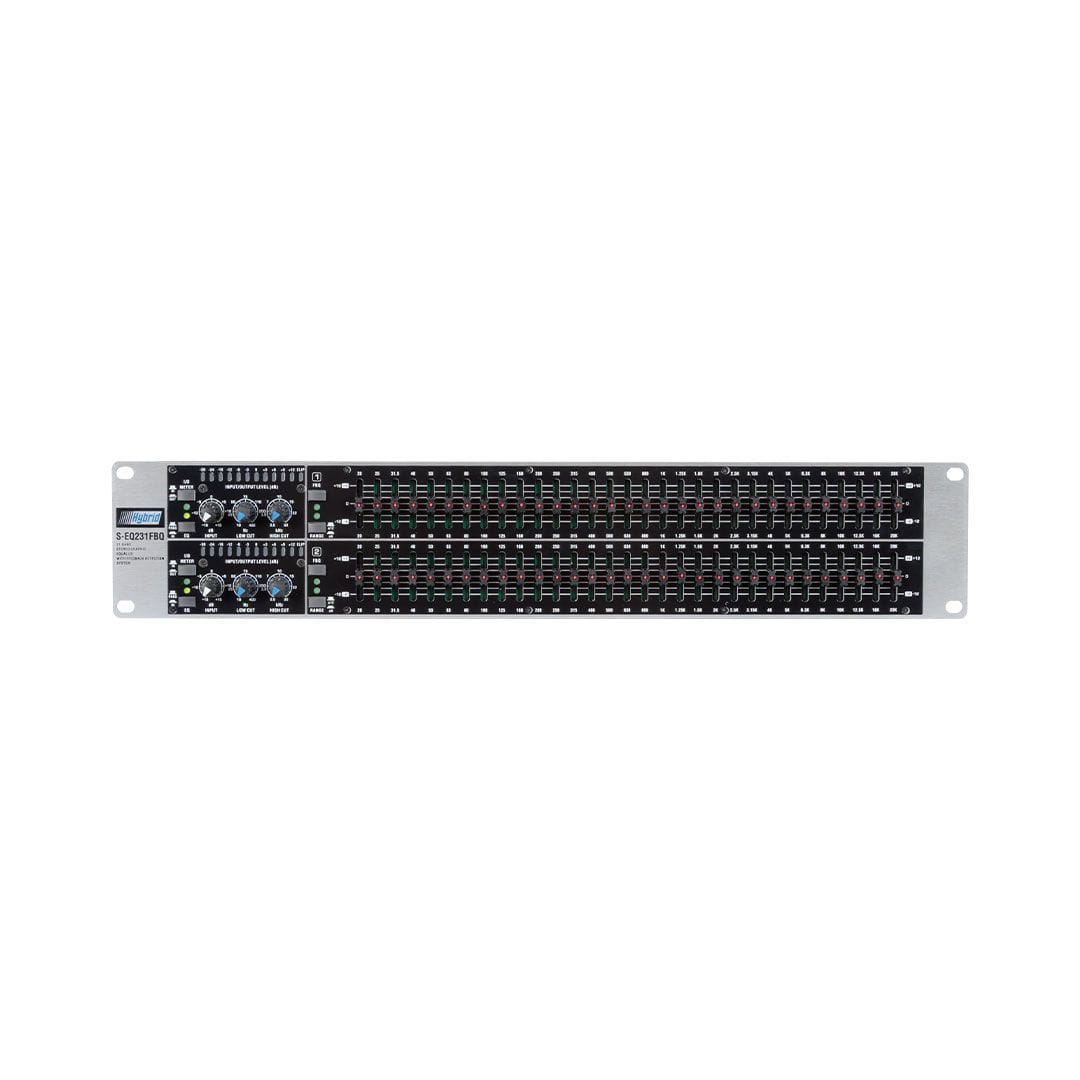

Hybrid S-EQ231FBQ Dual Channel 31-Band 1/3 Octave Graphic Equaliser

The HYBRID S-EQ231FBQ is a professional dual-channel 31-band 1/3 octave graphic equaliser designed for precise audio control and real-time feedback management. Featuring adjustable gain ranges (±6 dB or ±12 dB), low and high-cut filters, and an advanced feedback detection system with LED indicators, it ensures clean, balanced sound in any environment. With both balanced and unbalanced inputs and outputs, as well as a dedicated sub output with adjustable crossover, it seamlessly integrates into a wide range of audio systems. The S-EQ231FBQ delivers reliable performance, flexibility, and exceptional sound shaping capabilities.

Key Features

Dual-Channel Design
Independent controls per channel including:
- Input gain control (-15 dB to +15 dB)
- Bypass switch
- 12 segment LED Real-time input & output monitoring (Switchable)
31-Band EQ (Per Channel)
- 20mm faders covering 20 Hz – 20 kHz
- Constant Q design for precise, stable adjustments
- Switchable gain range: ±6 dB or ±12 dB
Feedback Detection System (FBQ)
- FBQ activated on the front panel
- LED indicators on faders show feedback frequencies
- LEDs turn off once gain is sufficiently reduced
- Also indicates highest peak frequency in normal mode
Adjustable Filters
- Low Cut Filter (High pass filter): 10 Hz – 400 Hz
- High Cut Filter (Low pass filter) : 2.5 kHz – 30 kHz
- Sub Output Crossover: 30 Hz – 200 Hz (adjustable)

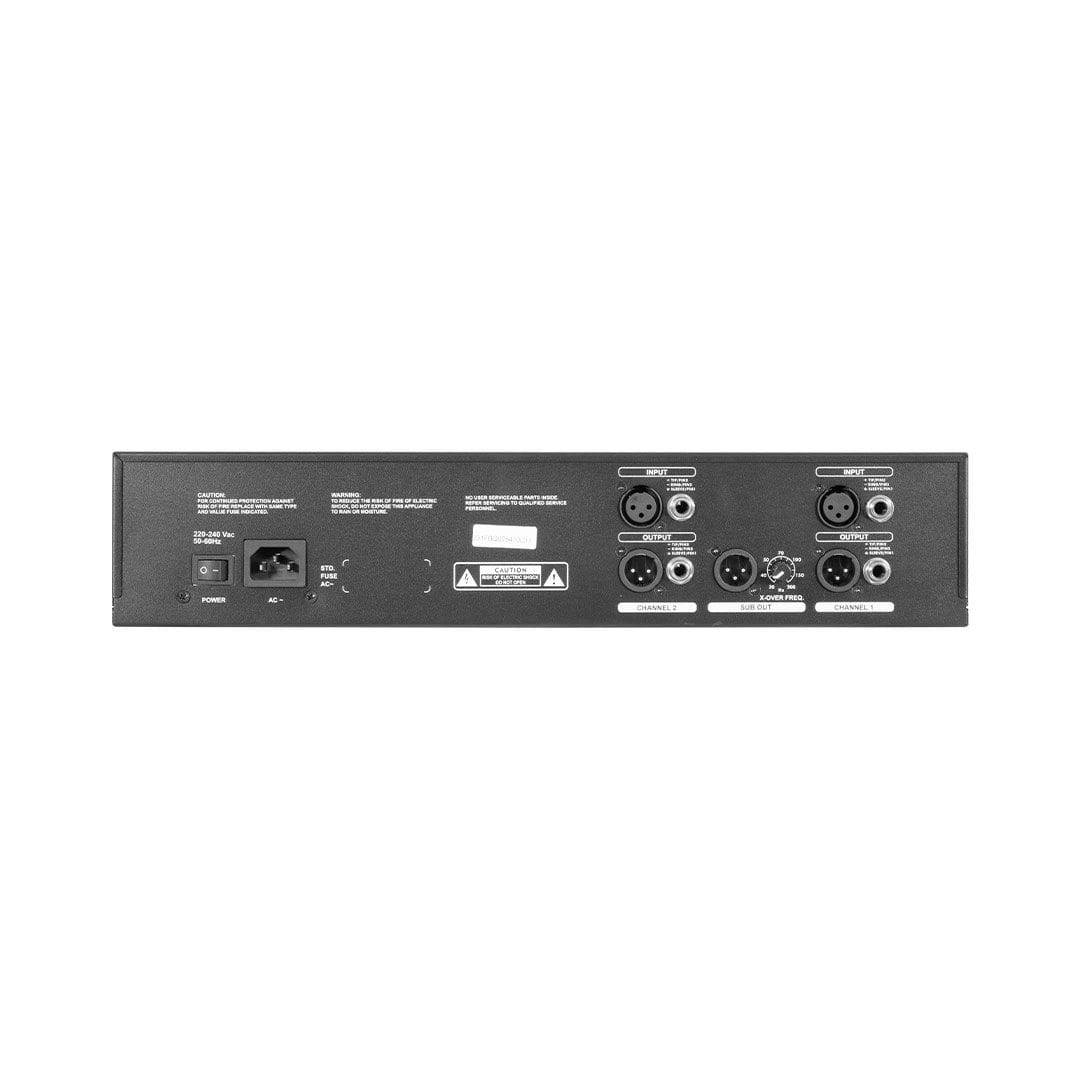

I/O & Connectivity
- Inputs: Balanced XLR & 1/4″ TRS Jack (parallel)
- Outputs: Balanced XLR & 1/4″ TRS Jack (parallel)
- Sub Out: XLR
Bypass Function
- One-touch EQ bypass on front panel

Technical Specifications

Input Impedance: 40 kΩ (balanced/unbalanced)
Input Level: 0 dB rated, +20 dB max
Frequency Response: 10 Hz – 30 kHz (±3 dB)
S/N Ratio: >94 dB @ +4 dB (22 Hz – 22 kHz)
THD: <0.05%
Filter Ranges:
- Input Gain: -15 dB to +15 dB
- Low Cut: 10 Hz – 400 Hz
- High Cut: 2.5 kHz – 30 kHz

Power & Physical

Power Supply: 220–240 VAC, 50–60 Hz
Power Consumption: <18W
Weight: 1.75 kg
Dimensions: 480 x 96 x 97 mm
