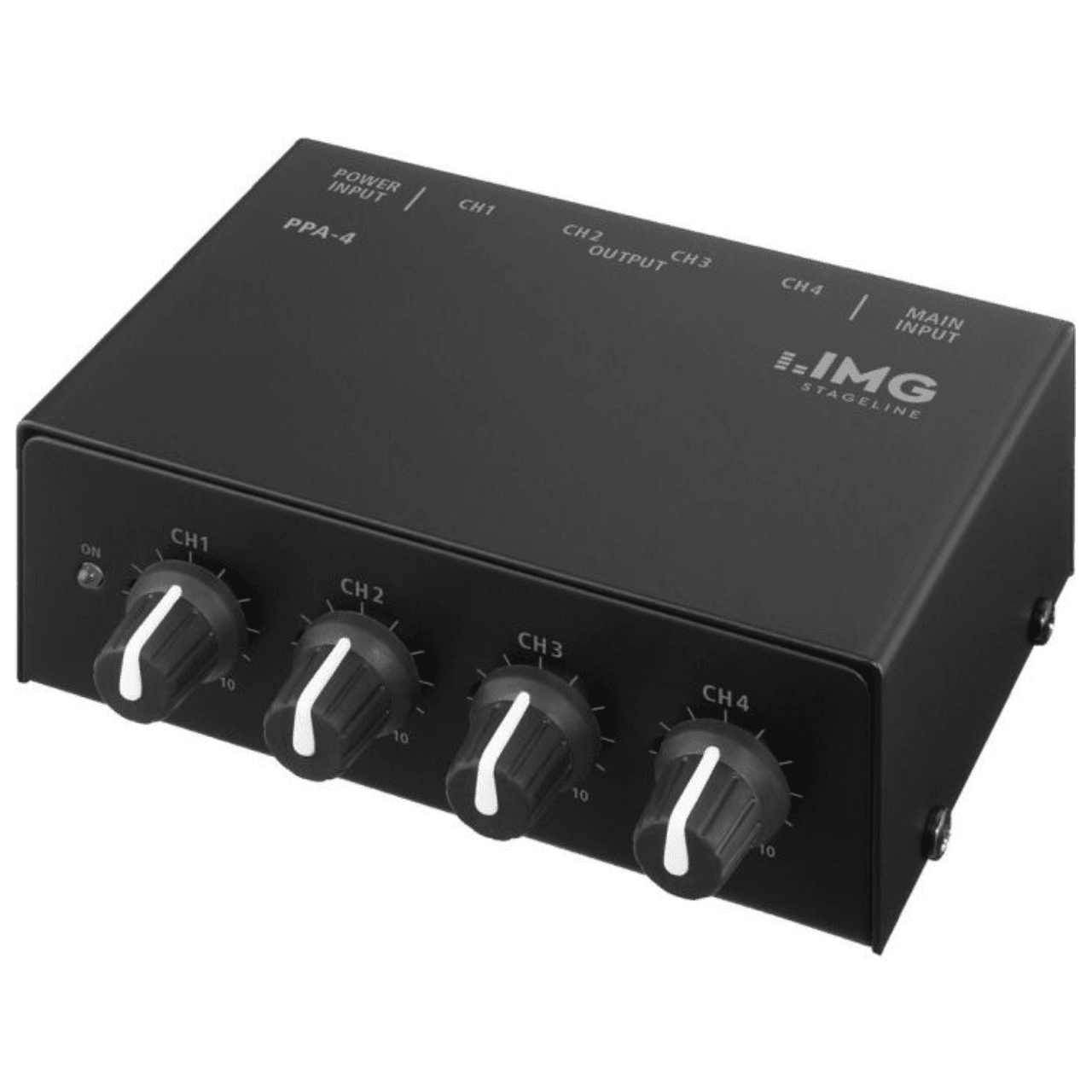

IMG Stageline PPA-4

PPA-4

Stereo headphone amplifier

Key Features

• 4 separate headphone amplifiers in one housing
• 1 level control each per amplifier
• 6.3 mm stereo input
• 6.3 mm stereo outputs

General Specifications

• Description:  Headphone Amplifier
• Frequency Range:  20-20,000 Hz
• Input Signal:  300 mV
• Output Signal
  • 2X 16 mW/8 Ω
  • 2X 35 mW/32 Ω
  • 2X 15 mW/600 Ω (per headphone)
• S/N Ratio:  >60 dB
• Channel Separation:  64 dB
• THD:  0.1%
• Admiss. Ambient Temperature:  0-40 °C
• Power Supply:  Viaencl. plug-in power supply
• Inputs:  1X 6.3mm jack
• Outputs:  4X 6.3mm jack
• Dimensions:  117mm X 93mm X 40mm
• Weight:  560g
