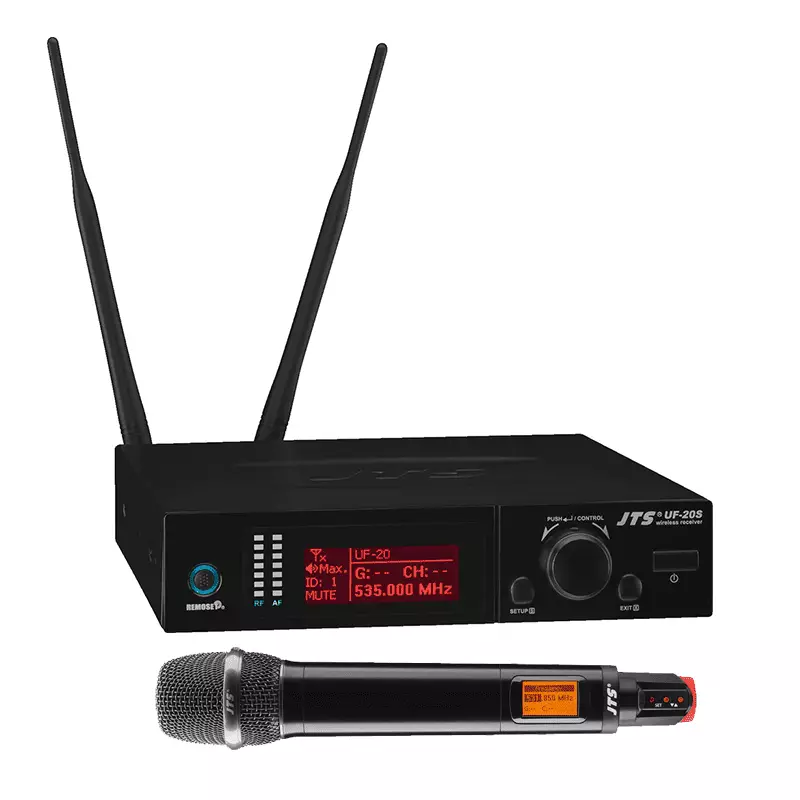

Perfect solution for stage applications of high requirements due to an excellent flexibility and reliability.
The device impresses with a convenient setup function, REMOSET technology, 75 MHz bandwidth, 3,000 frequencies which can be selected as desired and additional professional features, e.g. active carrier analysis method.

FEATURES:

• Bandwidth: 75 MHz
• 15 groups, each with 63 compatible preset channels
• 64 channels in 6 groups from 3,000 selectable individual frequencies can be stored in user presets
• RF output and mains voltage output for easily cascading up to 10 x UF-20R/5 receiver without additional splitter
• REMOSET technology for receiver/transmitter synchronisation
• Auto-scan function
• Pilot tone and noise squelch
• Equalizer function
• LED for indicating RF level and AF level
• Backlit display for indicating battery status of the transmitter, frequency setup, active antenna

SPECIFICATIONS:

• Carrier frequency range: 530-605 MHz
• Audio frequency range: 50-18,000 Hz
• Channels: 1
• THD: < 0.5%
• Dynamic range >: 108 dB
• Admiss. ambient temp.: 0-40 °C
• Audio signal receiver: 100 mV XLR
• Power supply receiver: via encl. power supply
• Width receiver: 212 mm
• Height receiver: 44 mm
• Depth receiver: 214 mm
• Weight receiver: 1.4 kg
