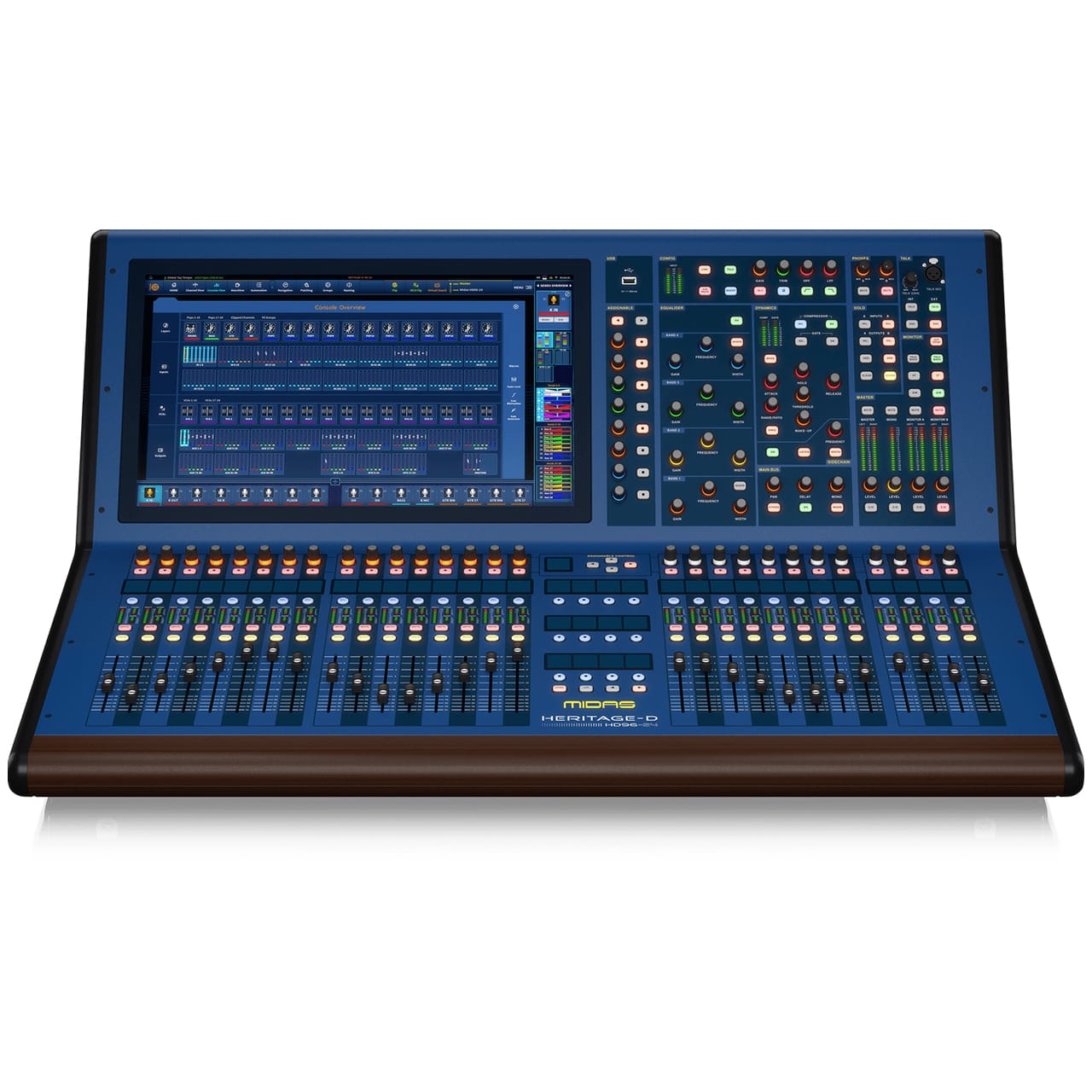

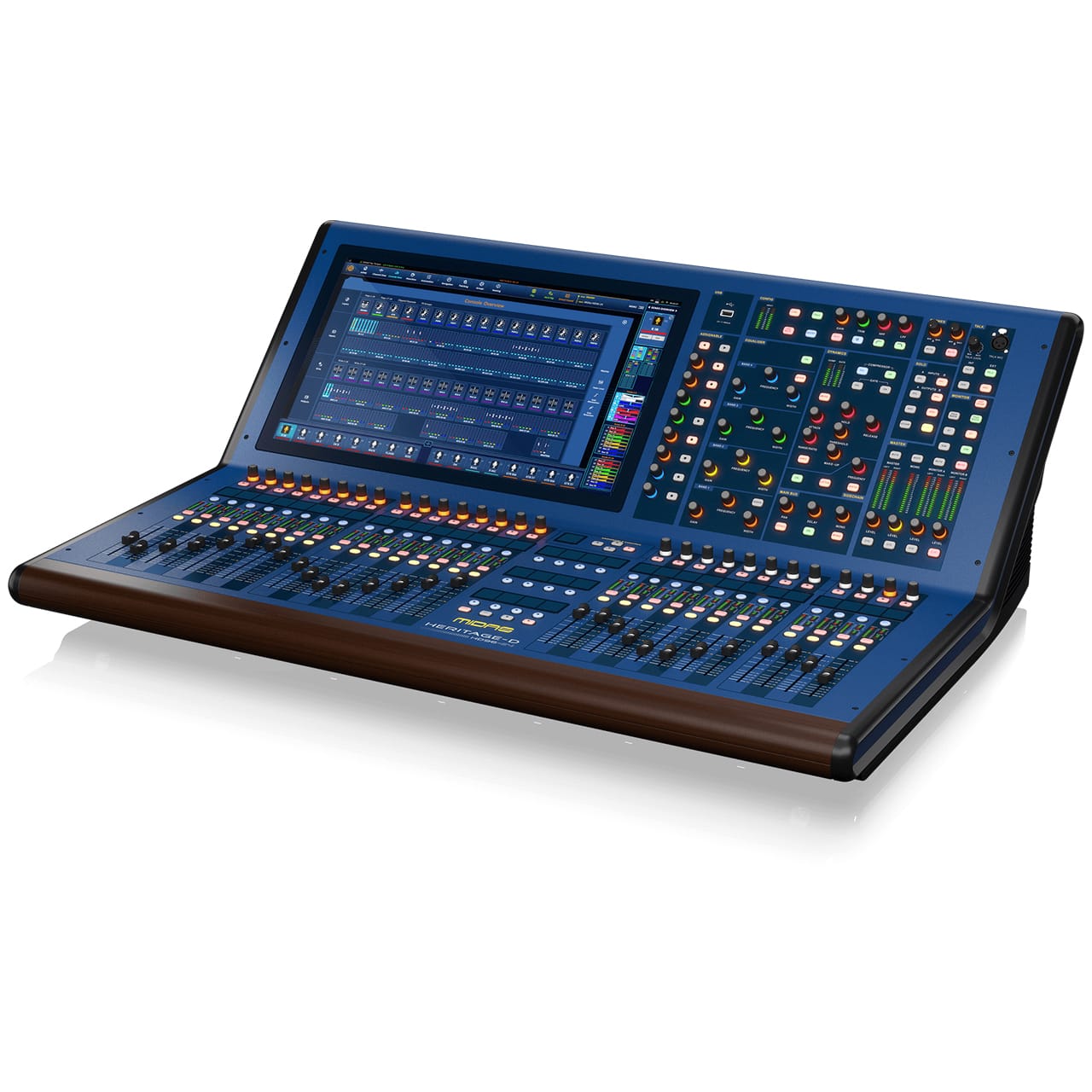

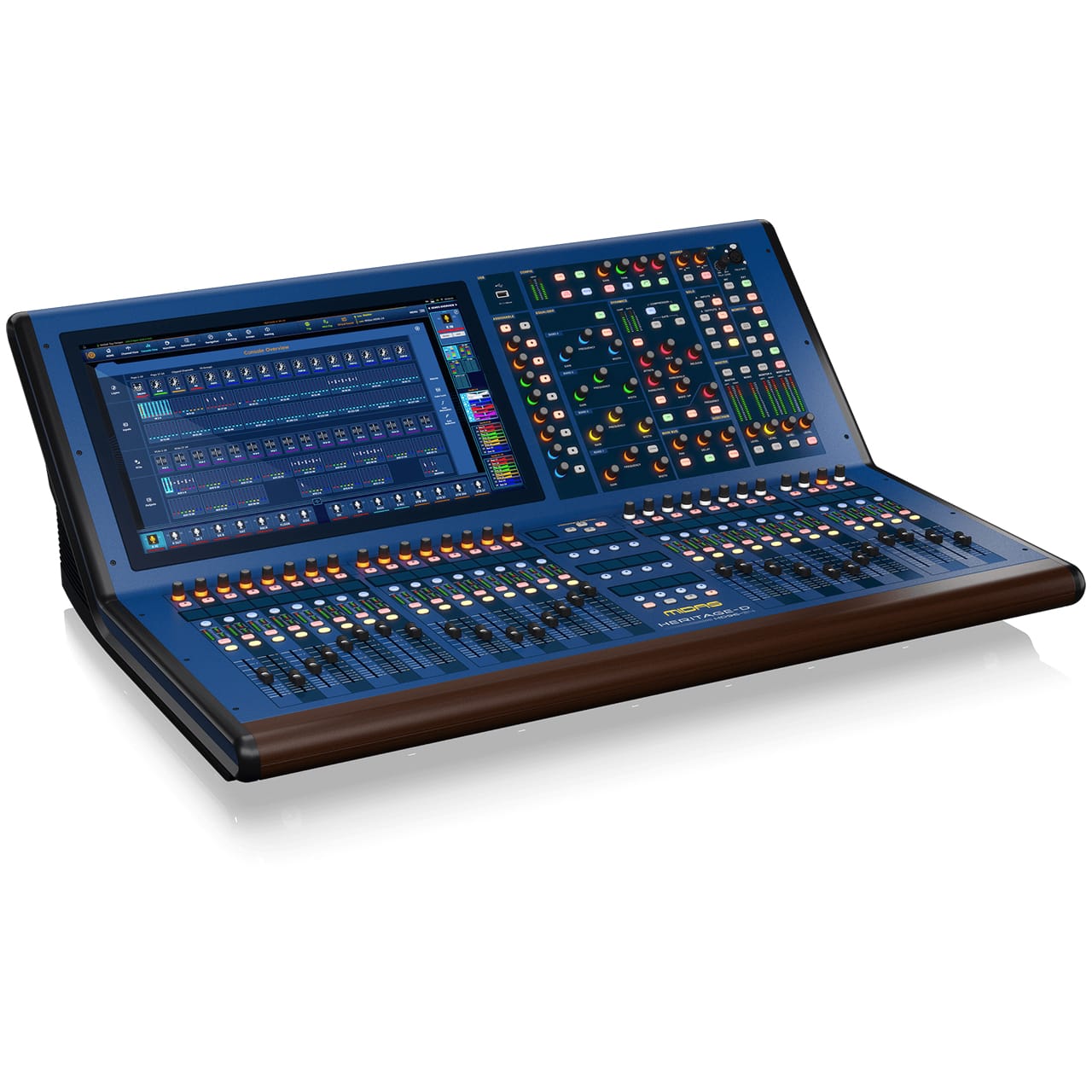

Live performance digital control centre with up to 144 simultaneous input channels and 96 kHz sample rate
123 time-aligned and phase-coherent mix buses
21″ full colour TFT display screen with capacitive touch sensing
Advanced and multi gesture, touchscreen user interface
Award-winning Midas microphone preamplifiers
HyperMAC and AES50 networking allows up to 480 inputs and 480 outputs @ 96 kHz sample rate
Dual Network Bridge Format Converter with up to 128 Bidirectional Channels and Asynchronous Sample Rate Conversion
24 VCA (variable control association) groups, and 24 POPulation groups
Up to 48 assignable 1/3 octave Klark Teknik DN370 graphic equalisers
Up to 24 multi-channel digital signal processing effects engines
Integrated Bluetooth and wireless transceiver module
Dual ULTRANET Ports providing 32 additional digital outputs
28 MIDAS PRO motorised 100 mm faders
Fully interpolated touch sensitive controls
Optional wireless remote control with remote application

Dual redundant auto-ranging universal switch-mode power supplies

Processing

Input processing channels	144 flexi channels
Output processing channels	96 flexi aux outputs, 24 matrices, stereo bus, mono bus
Point-to-point routing matrix	622 x 652
Signal processing	64-bit floating point
D/A converter	24-bit, 96 kHz and 128 times oversampling
A/D converter	24-bit, 96 kHz and 128 times oversampling
Sampling frequency	96 kHz
I/O latency (surface input to output)	1.34 ms
Input audio processing	Dual-slope high and low-pass filters True phase filter control 4-band parametric EQ with 3 shelf modes 4-mode creative input compressors Input gates or ducker Insert point on/off with processing order change Direct output with adjustable level and processing pick of point Delay-compensated aux return mode on inputs 5 x tap-off points per send
Output audio processing	Output 4-band parametric EQ with shelving/HP/LP options 4-mode creative output dynamics Insert point on/off with processing order change Direct input with adjustable level and processing tap-off point
Mixing control assistance	12 x talk groups 12 x mute groups 24 x surface POPulation groups 24 x VCA associated population groups Scene snapshot automation

Heritage History

The Heritage 3000 (H3K) was first introduced in 1999. Its famous purple colour and features made it so distinctly Midas. It soon established itself as the world wide industry standard for live sound applications. The H3K proved to be a huge winner from day one.

The striking colour scheme wasn’t the only thing that made waves within the industry. With a new pre-amp design bettering that of the iconic XL4, large channel and aux counts plus the flexible aux switching system, it’s no wonder the H3K appeared on everyone’s spec as the console of choice.

Living up to the reputation of the H3K is undeniably a hard task; the H3K set a new standard in live mixing.

Naming the Heritage D after such an iconic mixing console was indeed a bold move. However, this product is bold and visionary whilst keeping the legendary sound quality and raising the bar on what a digital mixing console can achieve.

Building on the prolific history of the H3K and PRO Series consoles, the new Heritage D now reinvents the workflow of the sound engineer. Finally, a Midas you can touch. Featuring a powerful 21” HD touch screen and formidable ultramodern Graphic User Interface (GUI) control all at your fingertips. Heritage D is a vision of the future with thought provoking new features such as Channel AI (yes, Artificial Intelligence).

This platform is designed for the future and will continue to grow and develop over many years with an impressive Midas team that are eager to improve and constantly add new features. Your investment in the Heritage D is safe.

The Graviton Mk 2 Processing Engine

At the heart of every mixing console is the most important part – Audio. Overlooked by other manufacturers, we have always put sound at the top of our priority list.

It was hard, almost impossible, but we improved on the legendary Midas digital sound with our new 64-bit summing mix engine with increased dynamic range. Driving a Midas has never been easier.

The key to the Midas sound is in giving ultimate flexibility while still being delay compensated. Avoiding the dreaded comb filtering effect is so very important. Many other consoles simply ignore this crucial part of the audio signal path.

Flexi-Aux

The Flexi-Aux system gives the ability to send aux to aux for group or stem style mixing. Now you can smash a whole drum kit with parallel compression and feed it to an artists in ear mix.
