PDM PD524 QUAD HANDHELD MICROPHONE UHF 500-530MHZ

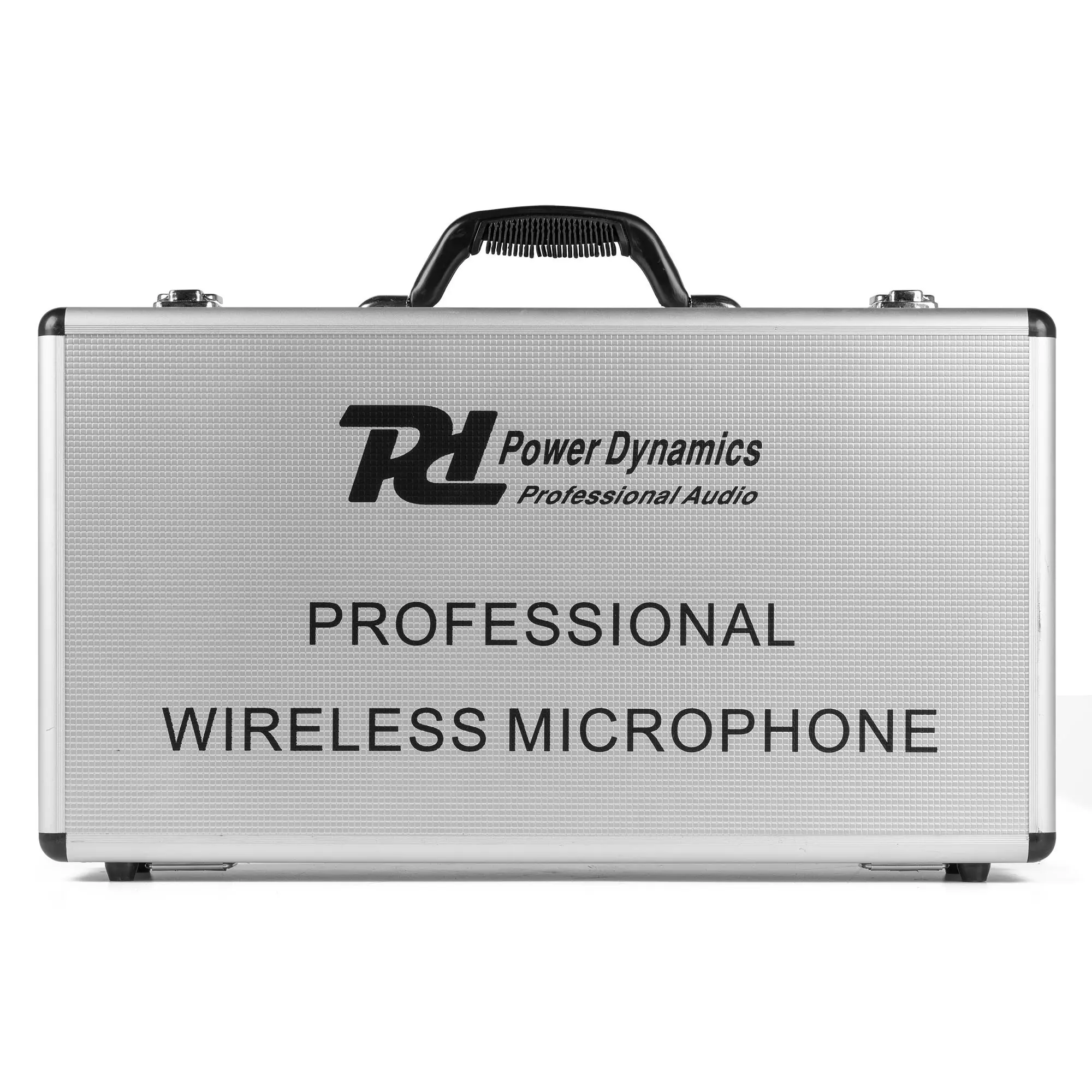

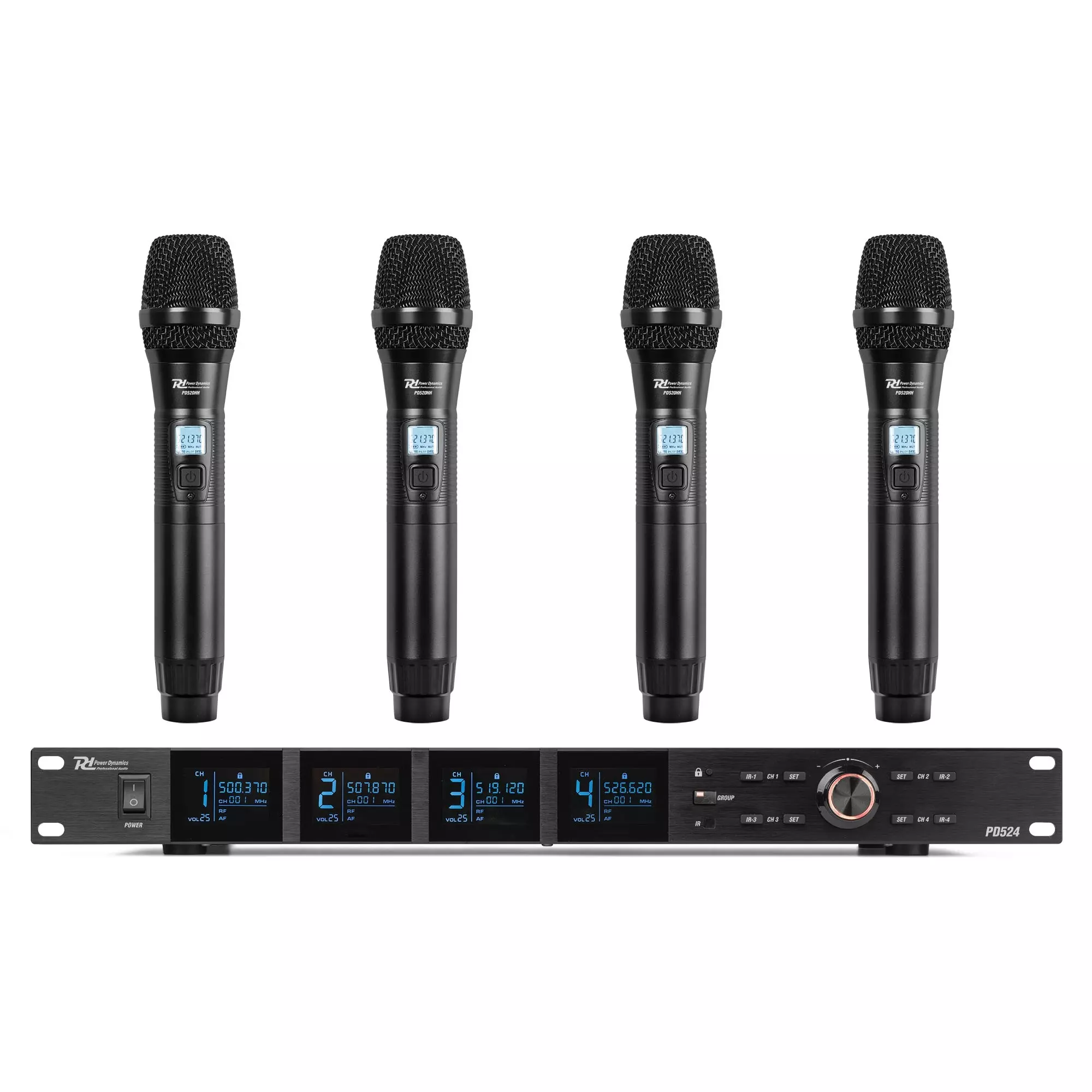

The PD524 is a professional wireless microphone system equipped with 4x 100 channels and is designed for larger performances or events. The receiver with clear dynamic LCD displays ensures interference free transmission, together with the high-quality squelch and the PLL synthesizer. The PD524 microphone system operates in the 500-530 MHz band and is suitable for vocals, presentations, training and other PA-applications. This set comes with a UHF 4 channels receiver, four handheld microphones with rechargeable Li-ion battery, two removable BNC antennas, two extender cables for front-mounting the antennas, a power adapter and an Aluminium case. Four USB cables for charging the wireless microphones are also included.

FEATURES:

• Professional UHF wireless microphone system
• Receiver with 4x 100 Selectable non-interfered UHF channels

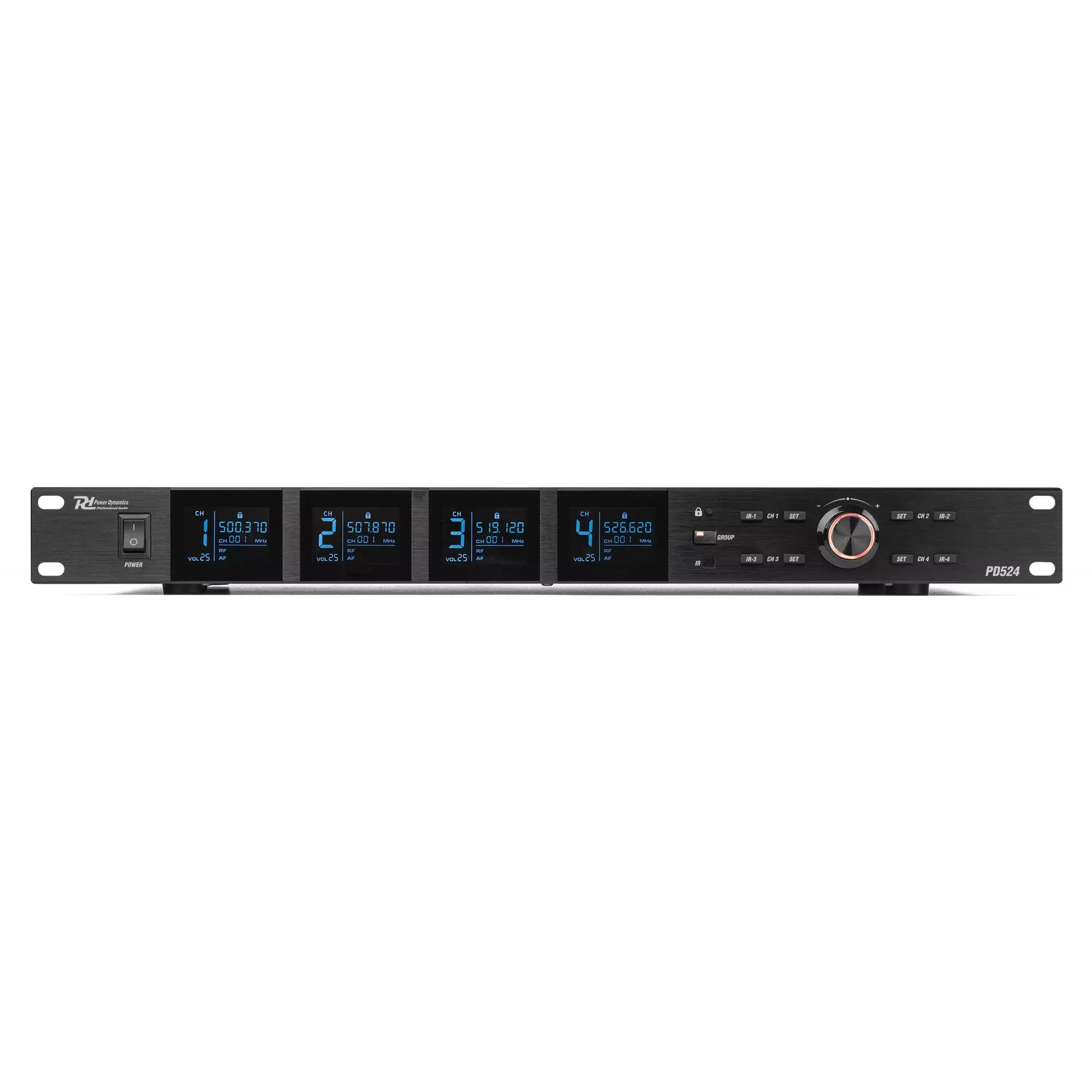

• LCD display showing RF level, AF level, Channel Frequency and mute status
• Built-in USB power supply for charging the microphone batteries

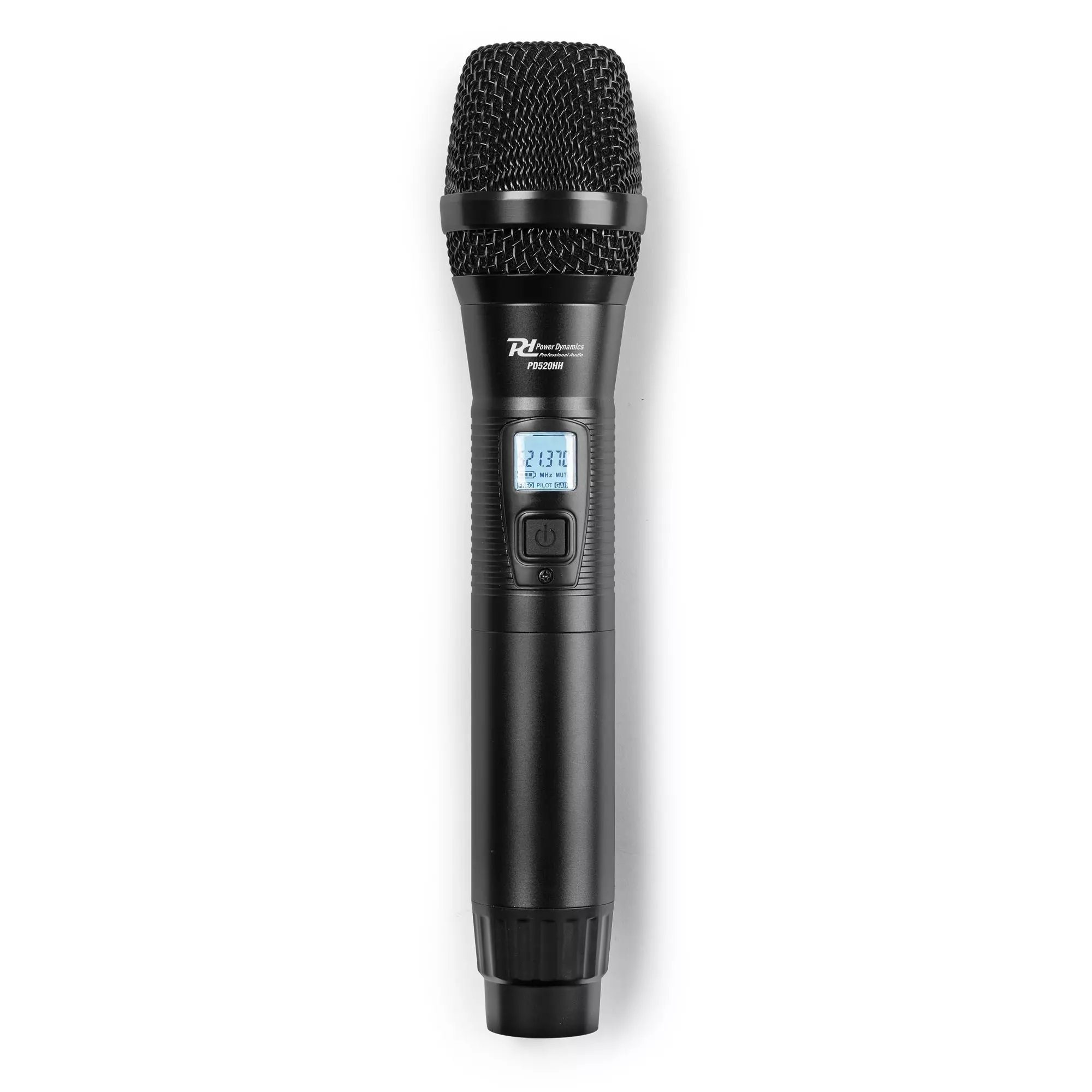

• 4 Handheld microphones with dynamic LCD display and mute function
• Microphones including rechargeable battery
• IR data transmission for channel selection
• CPU controlled
• FM modulation
• HD Audio processing

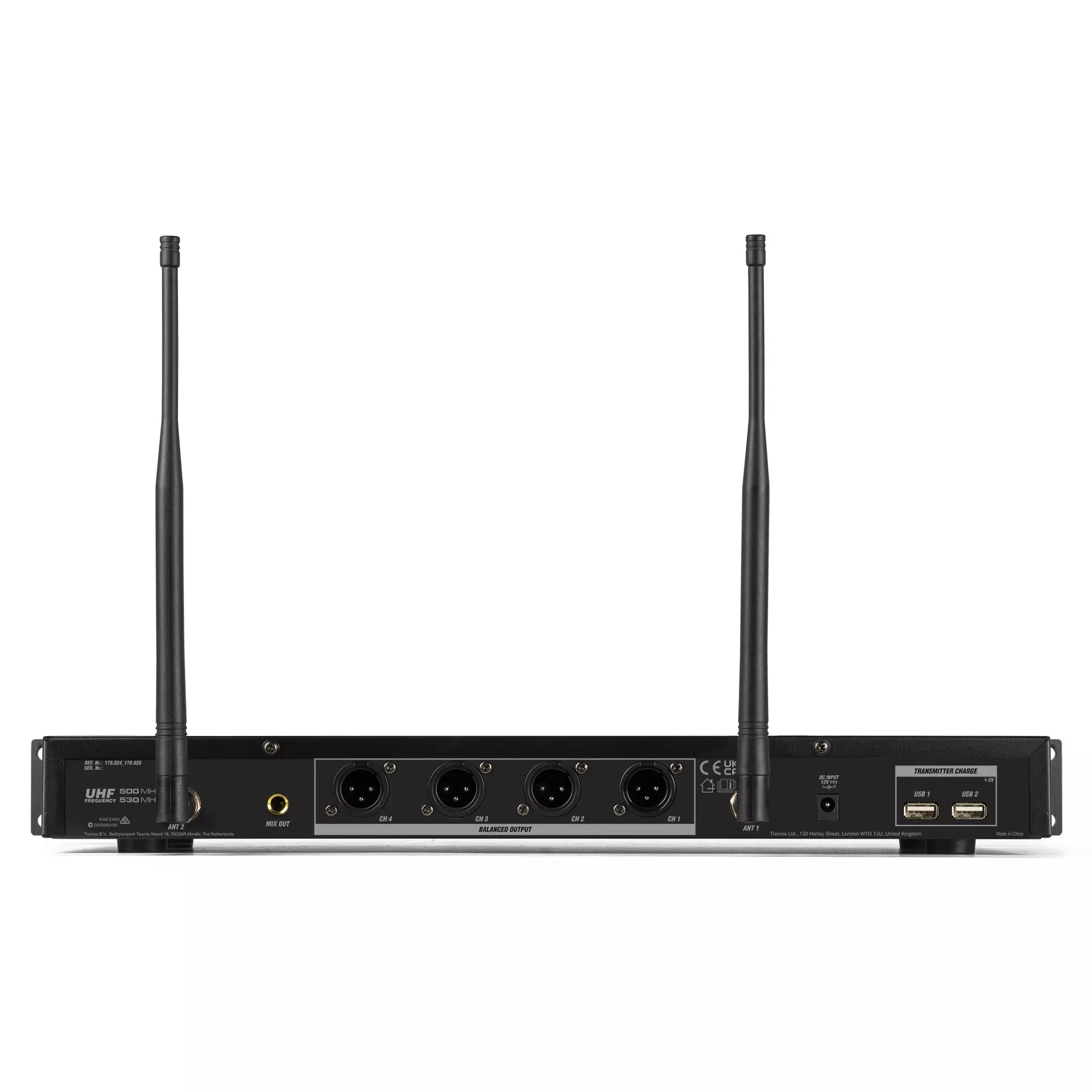

• 4x balanced XLR outputs and mixed out
• PLL oscillator

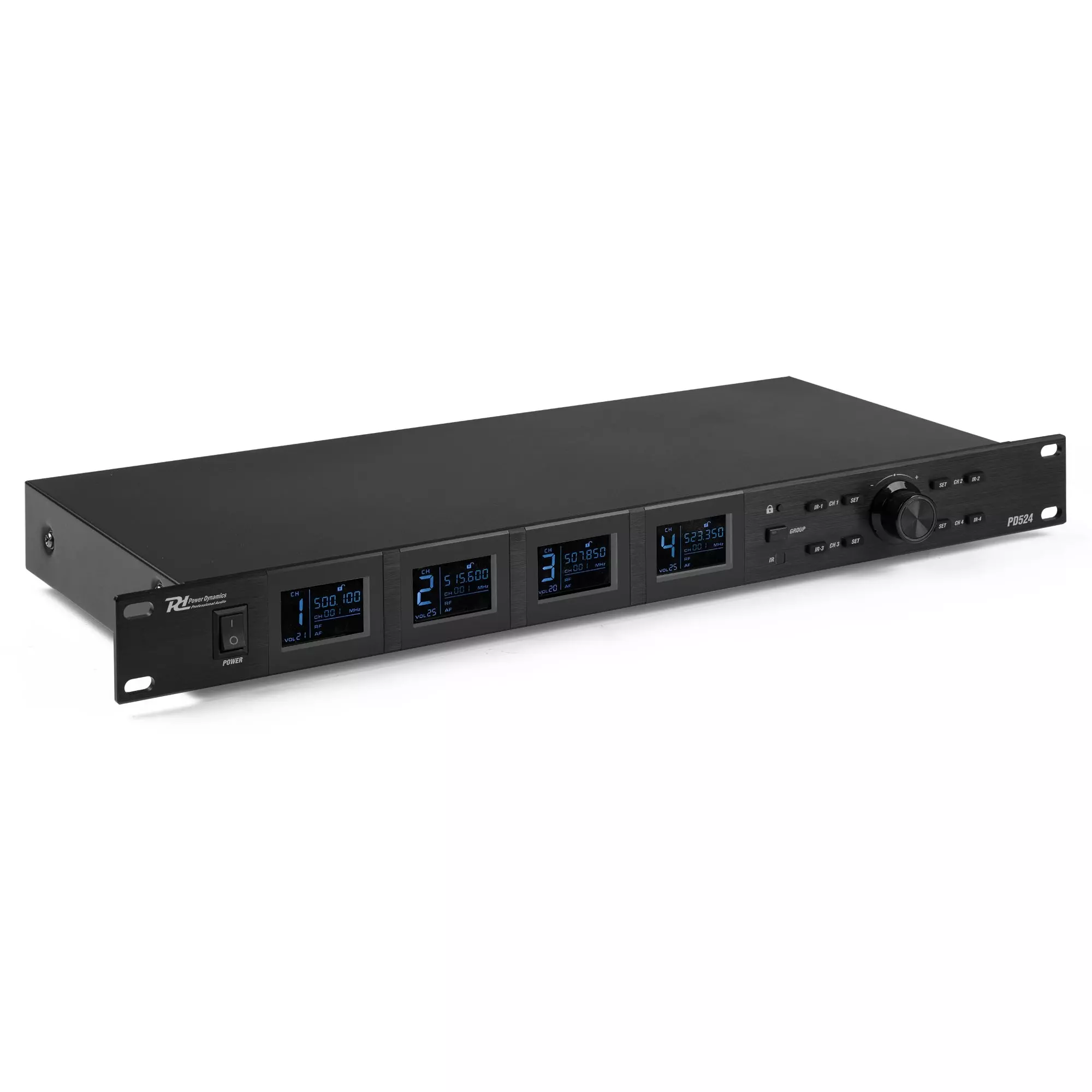

• Suitable for 19 “rack

SPECIFICATIONS:

• Product colour: Black
• Output connections: USB, XLR (3-pin)
• Microphone channels: 100 channels
• Frequency: 500 – 530 MHz
• Frequency response: 50Hz – 18,000Hz
• Sensitivity: -108dBm @ 12dB
• THD: <0.5%
• Microphone type: Condenser
• Batteries: 3.7V (18650 Li-ion cell)
• Power supply: 100-240VAC 50/60Hz (12V Adapter)
• Power consumption: 0.163 – 0.088A
• Dimensions (L x W x H): 253 x 480 x 45mm
• Weight: 4.55 kg
