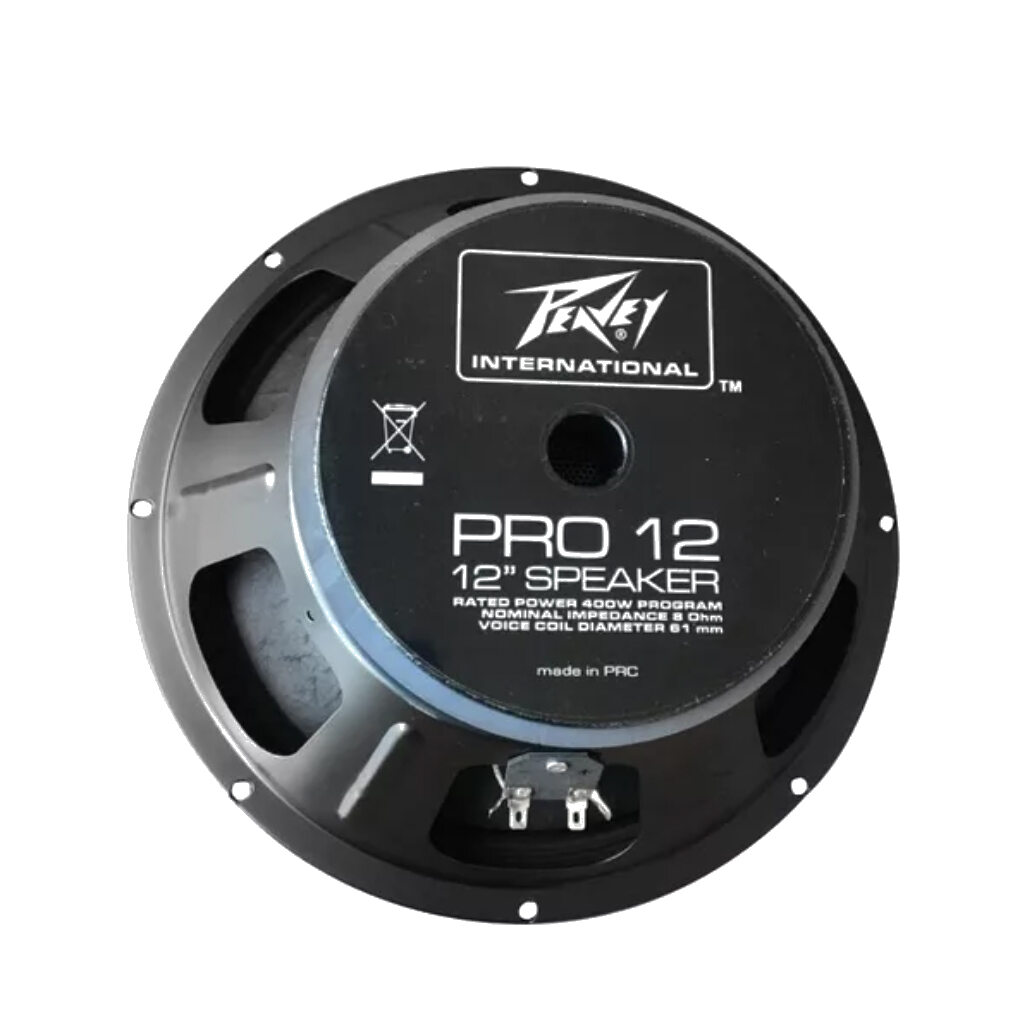

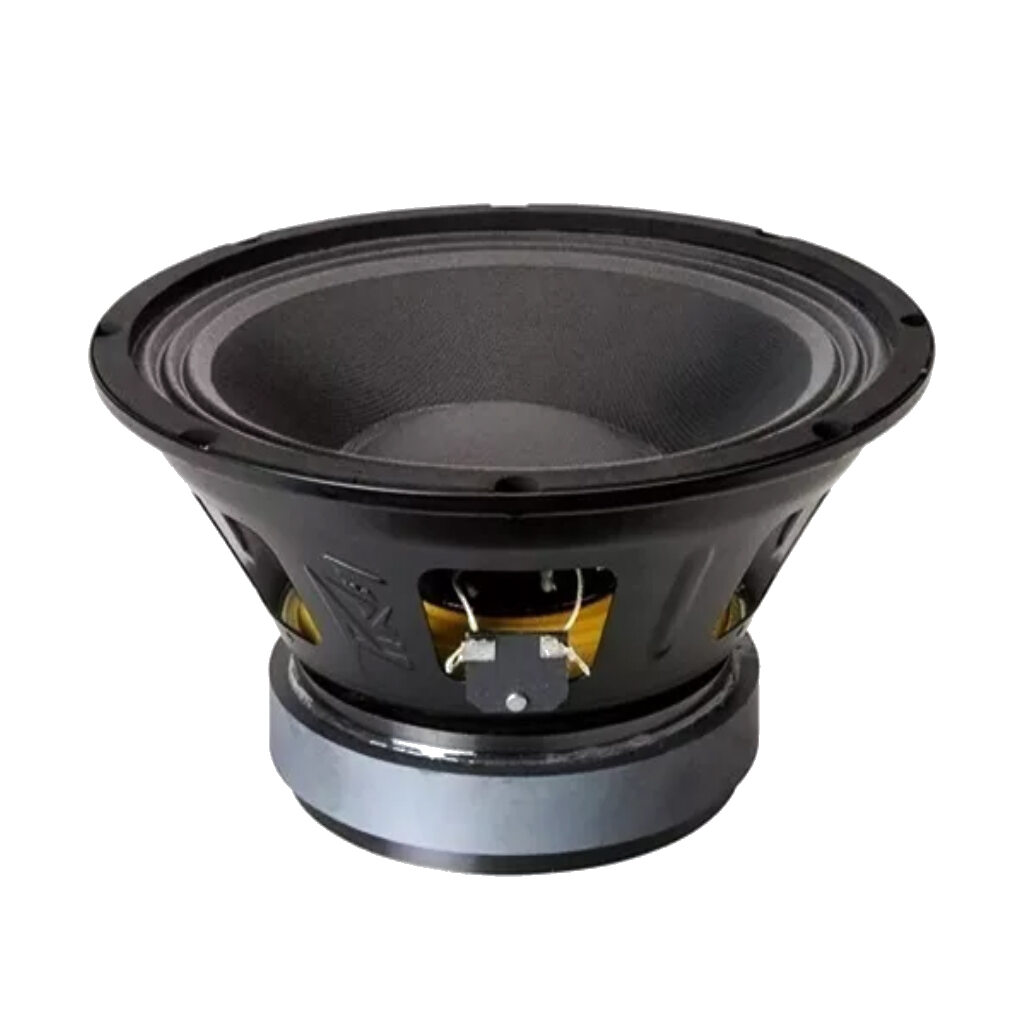

Pro Series 12 Speaker
PRO 12
Impedance: 8 Ohms
Power capacity: 800 W Peak 400 W Program 200 W Continuous
Sensitivity: 94.3 dB / 1 W 1 m
Usable freq. range: 50 Hz ~ 4 kHz
Cone: Kevlar® impregnated cellulose
Voice coil diameter: 2.375″ / 60.3 mm
Voice coil material: 2 layers, thermally bonded copper wire, Kapton® former, Nomex® stiffener
Net weight lb. / kg: 9.7 lbs. / 4.4 kg
Znom (ohms) 8
Revc (ohms) 6.00
Sd (Square Meters) 0.053
BL (T/M) 12.36
Fo (Hz) 48.4
Vas (liters) 86.4
Cms (uM/N) 219.7
Mms (gm) 49.10
Qms 3.84
Qes 0.588
Qts 0.510
Xmax 2.5
Le (mH) 0.72
SPL (1W 1m) 94.3
No (%) 1.73%
Vd (cu. in. / ml) 16.2 / 266
Pmax (Watts pgm.) 400
Disp (cu. in. / ml) 73 / 1192
12″
Weight Unpacked: 9.92 lb(4.5 kg)
Weight Packed: 12.13 lb(5.5 kg)
Width Packed: 13.125″(33.3375 cm)
Height Packed: 14″(35.56 cm)
Depth Packed: 6.75″(17.145 cm)
