Voice Coil Cooling: Ferrofluid
Shipping Weight: 38 oz.
Net Weight: 33.6 oz.
Horn Coupling Threads: Standard 1 3/8″ / 18″
Horn Coupling Diameter: .938″ (23.8 mm)
Dimensions: 3.54″ (90 mm) diameterx 2.40″ (61 mm) depth
Flux Density: 11,500 gauss (1.15T)
Voice Coil Material: Edge-wound ribbon withhigh temp Kapton bobbin
Voice Coil Diameter: 1.4″ / 34.4 mm
Diaphragm: Commercially pure titanium
Lowest Recommended Crossover: 2,000 Hz at 12 dB / Octave
Recommended Crossover: 1,800 Hz at 12 dB / Octave
Frequency Response: 1.5 kHz to 20 kHz
Nominal Efficiency: 30%
Sensitivity: 104 dB SPL 1 Watt at 1 meterOn-axis on 90º H x 45º V horn
Power Capacity 1000 Hz to 20,000 Hz: 120 W peak60 W program30 W continuous
DC Resistance: 6.8 Ohms
Minimum Impedance: 7.1 Ohms
Nominal Impedance: 8 Ohms
Throat Parameter: .938″ / 23.8 mm
1.4″

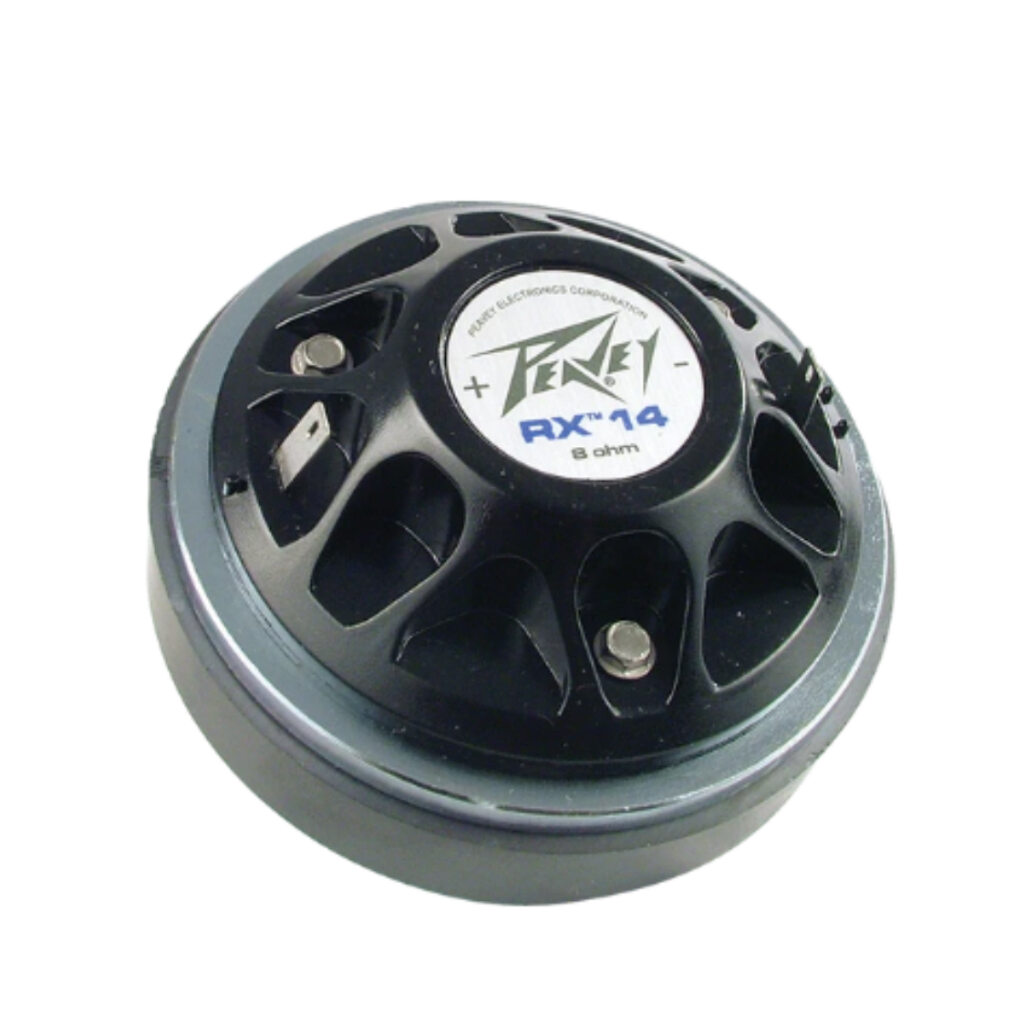

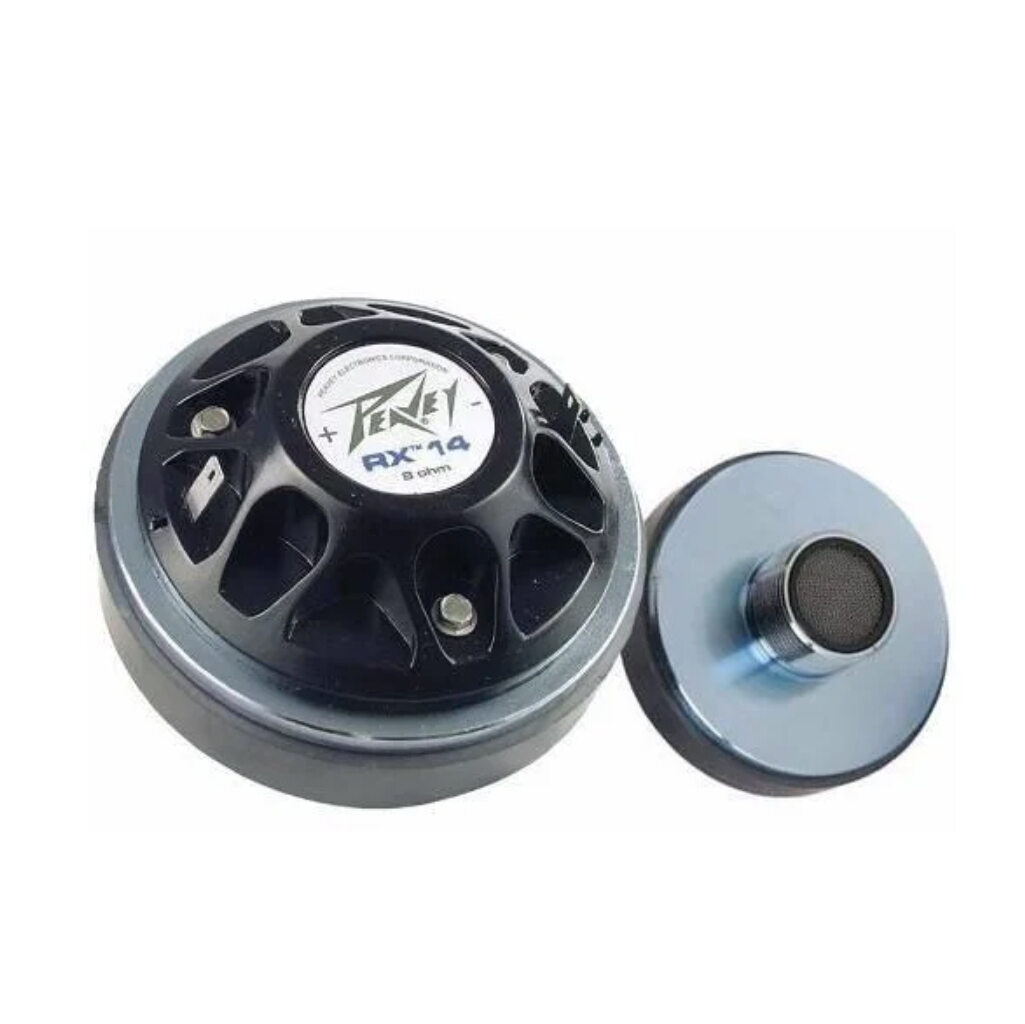

Peavey RX 14 compression driver
R995.00
high-frequency compression driver designed for professional audio applications
Availability: In stock
| Weight | 1.35 kg |
|---|---|
| Dimensions | 11.43 × 9.02 cm |
