PDM PD504H QUAD HANDHELD MICROPHONE UHF 826.300/831.200MHz/863.000/865.000MHz

This impressive sounding Power Dynamics UHF 4 microphone wireless system allows you to operate 4 microphones at the same time. Each microphone is coded allowing for quick microphone identification making the job of your sound man to make adjustments while the mics are being used on stage super easy. Excellent sound quality for vocal and PA applications.

FEATURES:

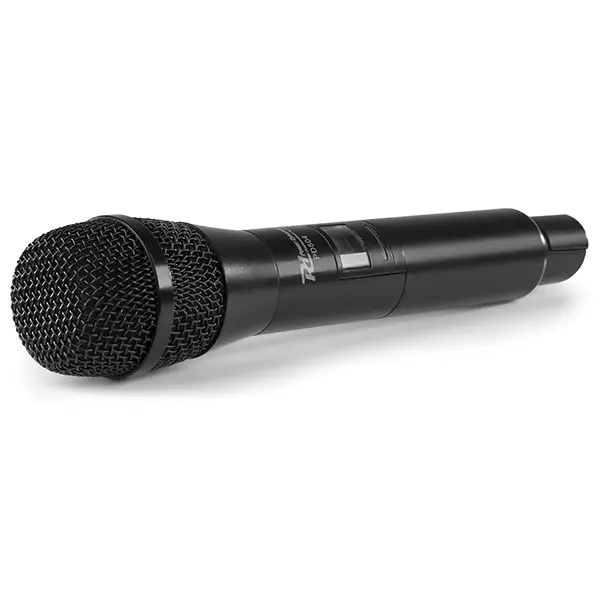

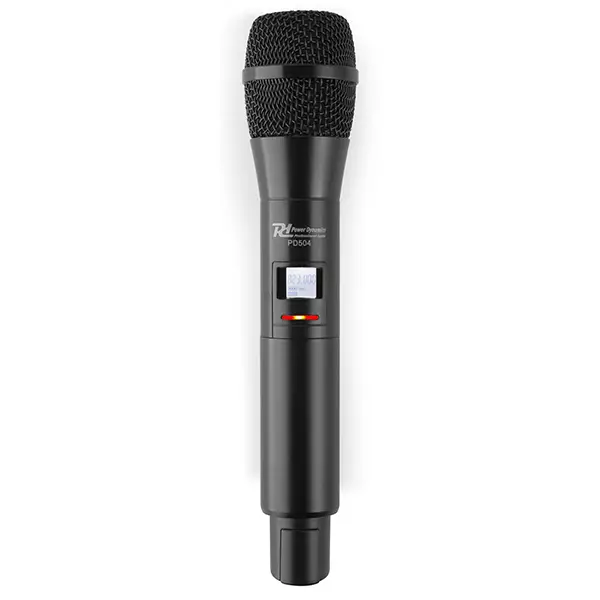

• 4x Handheld microphones with mute function
• 4x 50 Selectable non-interfered UHF channels
• IR data transmission for channel selection

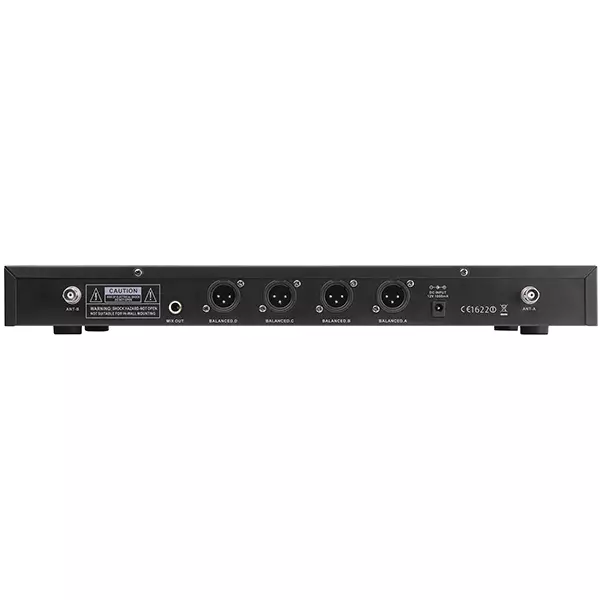

• 4x balanced XLR outputs
• CPU controlled
• PLL oscillator
• Transmitters with display showing the frequency and battery low indication
• Equipped with Dynamic LCD

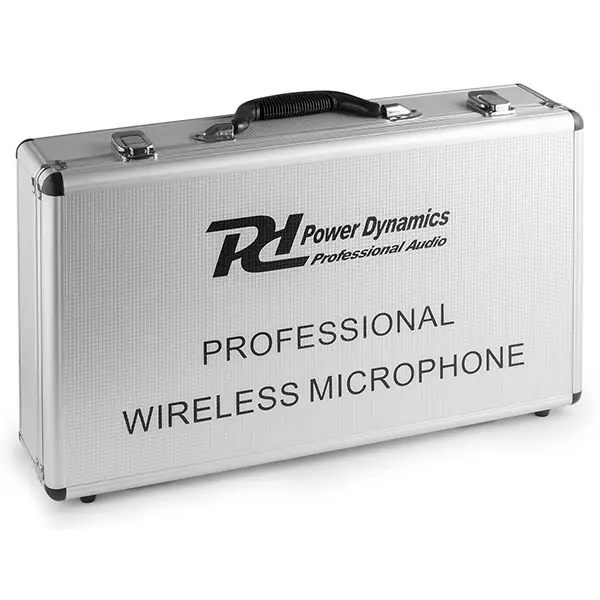

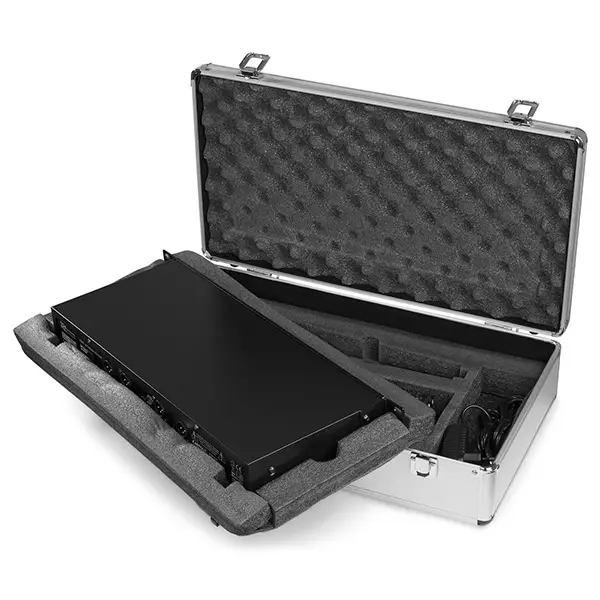

• Supplied in aluminium carrying case
• Including 19″ brackets

SPECIFICATIONS:

• Output Connections: XLR (3-pin)
• Frequency Range: 826.300 – 831.200 MHz, 863.000 – 865.000 MHz
• Frequency Response: 60 – 18.000 Hz
• Frequency stability: 0.0015%
• RF Output: <10mW
• Signal-to-noise ratio: >97dB
• THD: <1%
• Batteries: 3V (2x AA)
• Power Supply: 100-240VAC 50/60Hz (12V Adapter)
• Dimensions:Receiver: 235 x 420 x 44mm
• Dimensions:Microphone: 51 x 250mm
• Weight: 6kg
• Weight:Receiver: 1.7kg
• Weight:Microphone: 0.4kg
