Milan M15B

The 2,200-Watt MILAN M15B is a powered portable band pass 15″ subwoofer that is designed for maximum bass extension for both portable and permanent install applications. M15B’s discrete inputs are equipped with balanced, combination ¼ ” jack/XLR connectors and a shared Level control, making them ideal for a wide range of music sources, from mixing consoles, low impedance microphones, guitars and keyboards.

Key Features

• Band pass powered subwoofer for portable PA and installation applications
• 2,200 Watt power featuring Klark Teknik Class-D technology
• High excursion 15″ low-frequency driver with 4″ voice coil and double suspension
• Bass boost and polarity switch for accurate low-frequency system integration
• Birch plywood enclosure with hard-wearing semi-matt black paint finish
• Rugged powder-coated perforated steel mesh grille
• 36 mm pole mount to support satellite speaker
• Plated steel castors with rubber tyres

Bandpass Enclosure Design

Bandpass enclosures are extremely efficient, creating maximum bass output within a specific frequency range by increasing the acoustic load presented to the driver. The low distortion bandpass design utilised in the M15B reinforces the bass musical instrument frequencies, and steep cut-off slopes ensure an effective acoustic transition for use with MILAN Series full-range loudspeakers. A typical application could consist of an M15B providing the low-frequency bass extension for one, or two MILAN Series top cabinets.

Class-D – Massive Power, Perfect Sound

Thanks to our revolutionary Class-D amplifier technology, we are able to provide 2,200 Watts of output power with incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology makes it possible to design and build extremely powerful products that are significantly lighter in weight than their traditional counterparts while using less energy and protecting the environment. The lightweight Switch Mode Power Supply, coupled with the industry-leading Klark Teknik Digital Signal Processing (DSP) module, provides dynamic equalisation and sophisticated limiting functions, ensuring optimal performance and long-term reliability.

Custom-Engineered Drivers

Powerful, high-efficiency Class-D amplifiers and Switch Mode Power Supply technology coupled with state-of-the-art DSP functionality sounds very impressive – but what about the part of the system you actually hear? We are known internationally for making some of the best-sounding speaker systems in the world, so we take our drivers (woofers and tweeters) very seriously. Our LF and HF drivers are designed specifically for each application – it is what sets us apart from the competition. When you buy a Turbosound loudspeaker, you can rest assured the high-excursion 15″ LF driver inside has been engineered to perform flawlessly in conjunction with every other element for truly professional results. The MILAN M15B outputs massive quantities of tight and articulate bass – and works seamlessly with all MILAN Series loudspeakers.

Integrated Control Center

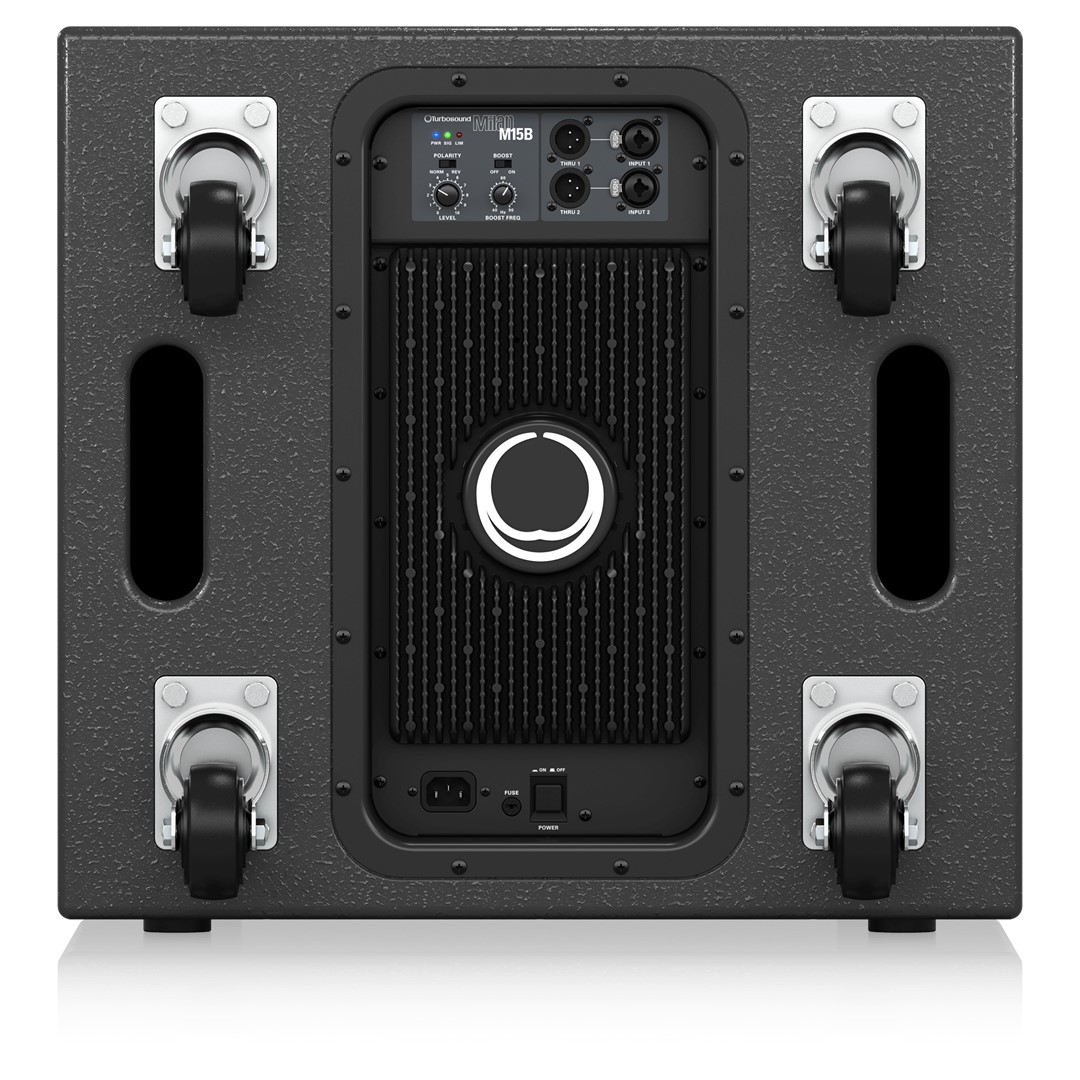

The onboard control panel features a subwoofer Level control, a polarity switch for proper phasing with your loudspeakers, and a switchable Boost filter (set at 100 Hz), which ensures correct integration with your system. An additional filter allows the selection of Speech (for enhanced voice intelligibility), or Music for the broader frequency range required for the high-fidelity reproduction of musical content. Convenient XLR Thru connectors send both input signals to your powered full-range loudspeakers, or to additional powered subwoofers.

Built for Durability and Versatility

The M15B’s enclosure consists of solid birch plywood with a hard-wearing semi-matt black paint finish and is ribbed internally to eliminate resonances and minimize vibration. Plated steel castors with rubber tyres are provided for easy transport, and the standard pole-mount socket allows powered loudspeakers to be mounted, either vertically or raised higher and angled down to optimise audience coverage. Mains power is connected via a non-locking IEC socket with an integrated fuse holder. The illuminated front badge can be operated in one of three modes: permanently on; permanently off; or to indicate the action of limiting.

Rock-Solid Performance

Designed to provide exceptional performance for travelling musicians, houses of worship, banquet facilities, night clubs – and a host of other venues, the 2,200-Watt MILAN M15B puts touring-grade sound quality into a scalable loudspeaker system that is supremely portable and versatile. See your authorised dealer, or place your M15B order online today – and let your audience enjoy the Turbosound difference!

General Specifications

Components

• 1 x 15″ LF driver

Connectors

•  Input: 2 x female XLR wired pin 2 hot
• Thru: 2 x male XLR wired pin 2 hot
• IEC mains connector with integrated fuseholder

Controls

• Level, Polarity, Boost, Boost Frequency

System Data

• Frequency Range
  • 45 Hz–100 Hz ±3 dB
  • 35 Hz–150 Hz -10 dB
• Max SPL (peak): 134 dB (half space)
• Boost Frequency: +6 dB @ 40 Hz–90 Hz, Q=1

Indicators

• Power LED: Blue
• Signal LED: Green
• Limit LED: Red

Circuit Protection

• Amplifier Protection: Full short circuit, thermal, overcurrent, DC

LF/HF Driver

• Max Output Power: 2200 W

Audio Inputs

• Input Sensitivity: +4 dBu @ centre position for full-rated power
• Input Impedance: 10 kO unblanced, 20 kO balanced

Power Supply, Voltage (Fuses)

• USA / Canada: 100–120 V~, T 12 A H 250 V
• UK / Australia / Europe: 220–240 V~, T 6.3 A H 250 V
• China: 220–240 V~, T 6.3 A H 250 V
• Japan: 100–120 V~, T 12 A H 250 V
• Power consumption@ 1/8 max power: 280 W

Construction / Dimensions / Weight

• Construction: Birch plywood, screwed and glued
• Dimensions (WxDxH): 530mm x480mm x 495mm / 20.9″ x 18.9″ x 19.5″
• Net Weight: 37kg / 81.4lbs
