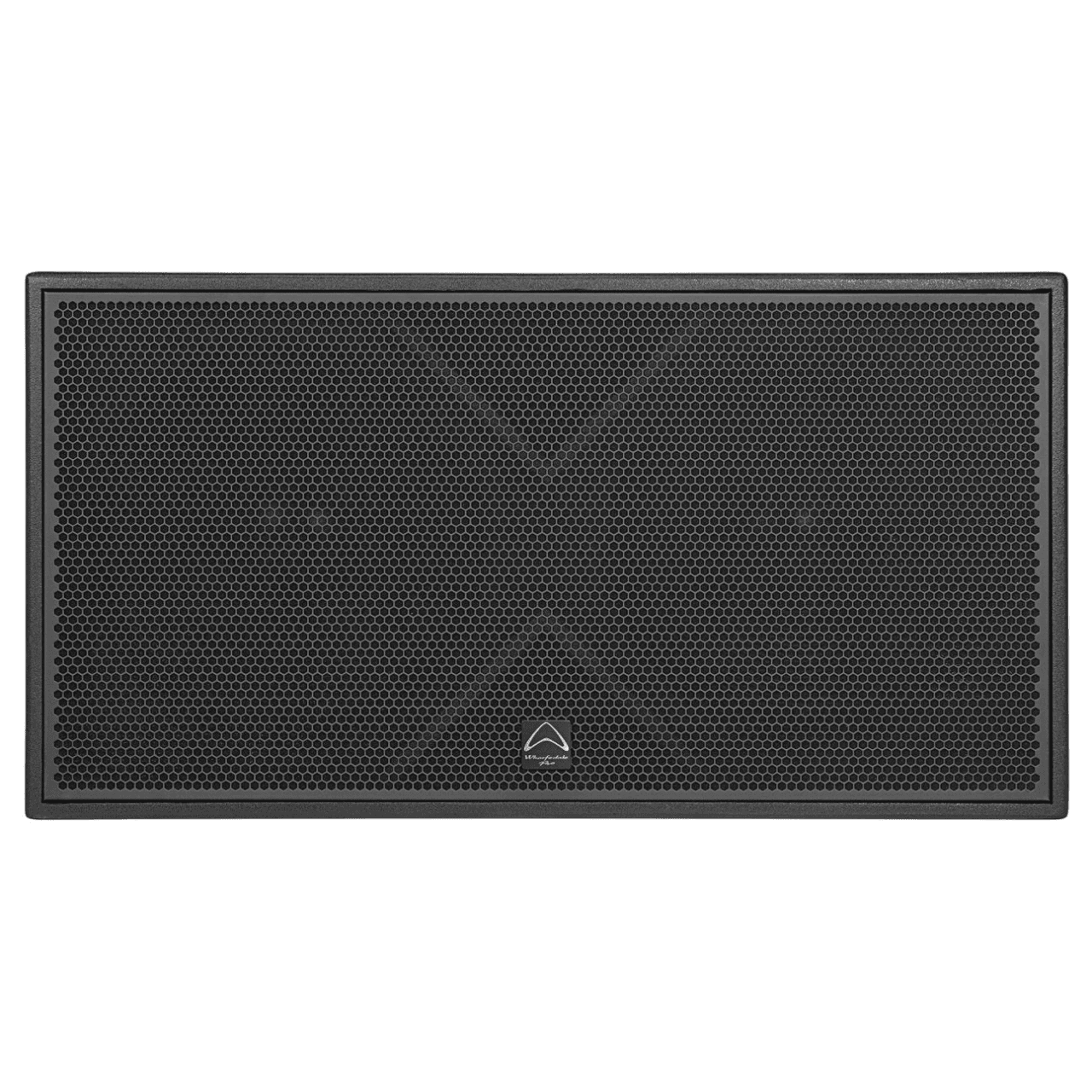

The WLA-218BA Active Line Array

Key Features

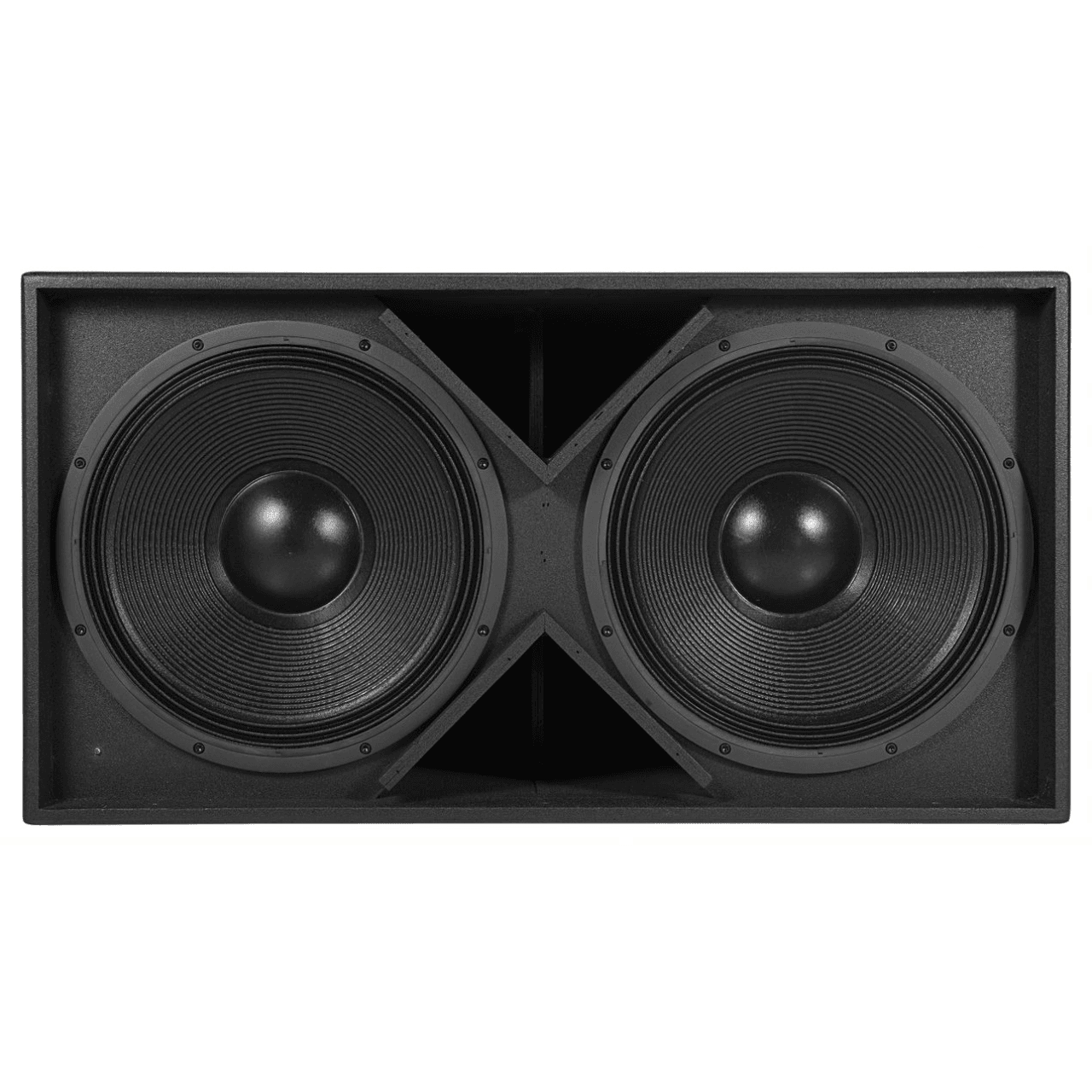

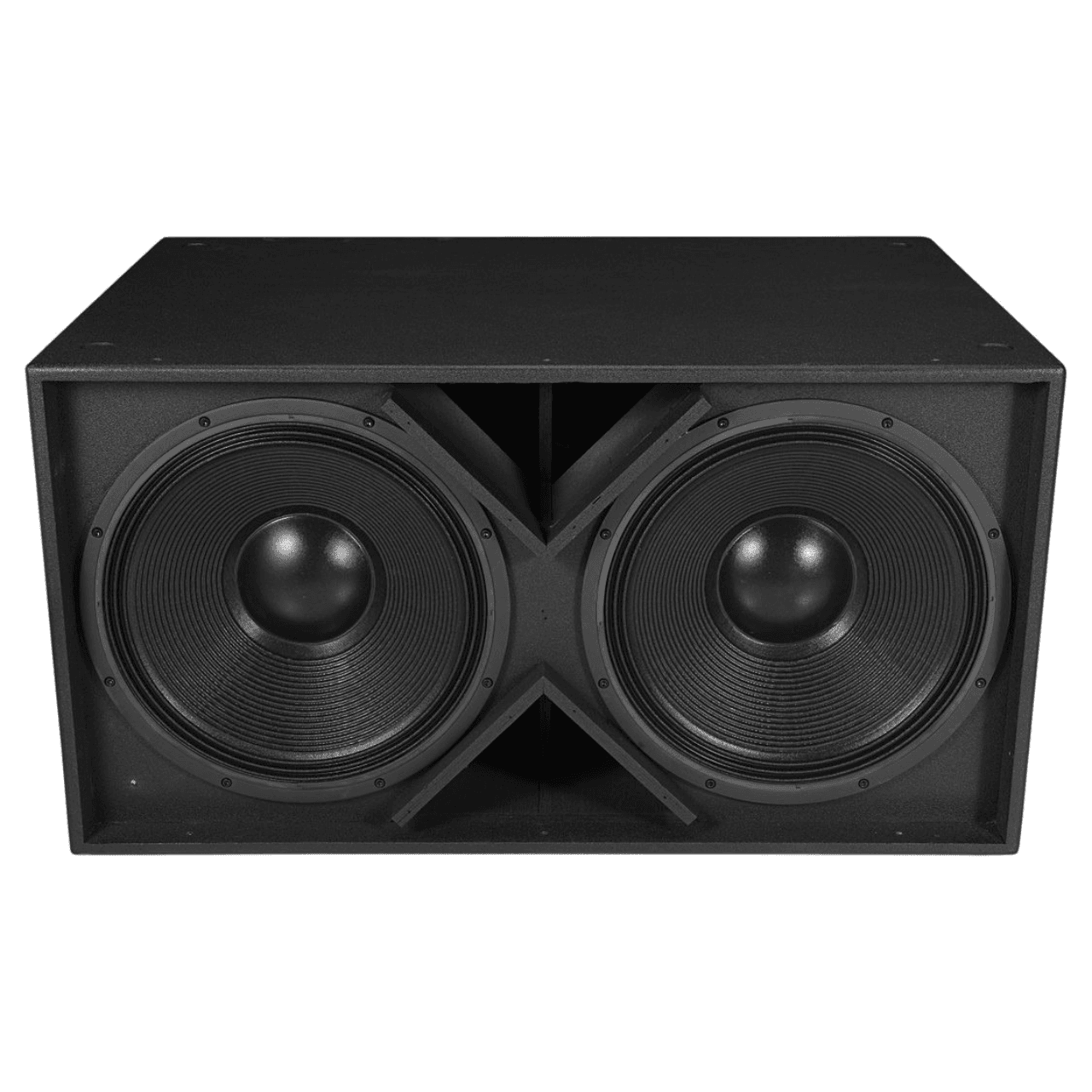

Dual 18″ LF drivers with 4.0″ voice coils
148 dB Max SPL @ 1 meter
18 mm Birch Plywood construction
2000 watts Continuous
4000 watts Peak
8 DSP presets including FIR

General Specifications

System Type: Active 2×18 Subwoofer
Frequency Response (+ / -3 dB): 30 Hz-100 Hz
Frequency Range (-10 dB): 25 Hz-150 Hz
Loudspeaker Sensitivity @ 1 W / 1 m): 109 dB
Maximum SPL (peak)(@1 m): 148 dB
Signal Processing: DSP based,8 presets resident in Input Module
Preset list
- A) 1 SPKR 80 Hz LPF
- B) 1 SPKR 100 Hz LPF
- C) >2 SPKR 80 Hz LPF
- D) >2 SPKR 100 Hz LPF
- E) CARDIOID AUDIENCE
- F) CARDIOID STAGE
- G) CUSTOM
- H) CUSTOM
Amplifier Design: Class D
Power Rating: 4000 W Peak / 2000 Continuous
Power On Protection: Power switch on/off mute
Thermal Protection: Amplifier Shut Down / Auto Reset
Low Line Voltage Shut Down: 80% Nominal Line Voltage
Driver Protection: Independent L/ H Limiters and DC
DC and Short Protection: Yes
Limiter Indicator: Red LED
Signal Indicator: Green LED
Power/Active Indicator: White LED
Find Function Indicator: Blue LED
Input Sensitivity: +4 dBu
Maximum Input Level: +18 dBu
Input Impedance (Balanced): 10 KΩ
AC Power details – Power Supply: High-Efficiency Switching Mode Power Supply
Connectors
- Input Connector: XLR 1/ 4〞Combo jack
- Link Connector: Balanced XLR pin Connector
UPDATE: USB Type B
NETWORK (RS485): RJ45
AC Power Options: AAC100–240 V~,50/60 HZ
AC Input Connector: powerCON
AC Loop Through Connector: powerCON
Enclosure Material and Finish: 18 mm Plywood
Color Options: Black Rhino Paint
Grille Material & Finish: 1.5 Steel
Dimensions (WxDxH): 1065mm X 756mm X 560mm / 41.9″ X 129.8″ X 22.0″
Net Weight: 92.04kg / 202.4lbs

Price-Flex

Price Flex

Name: Wharfedale Pro WLA-218BA
Brand: Wharfedale Pro
SKU: WHAR-WLA 218BA SUB
Availability: InStock
