1200W Power Amplifier

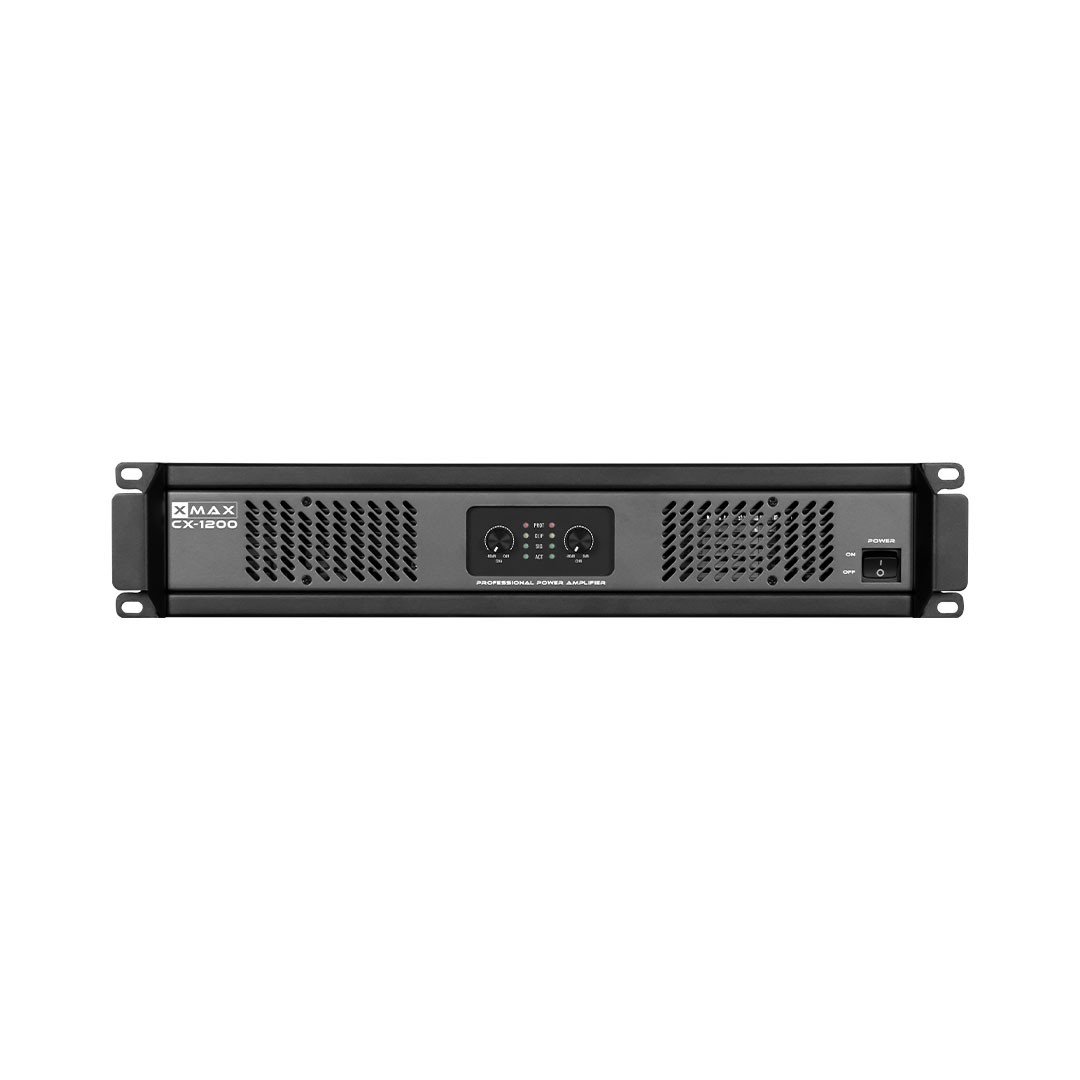

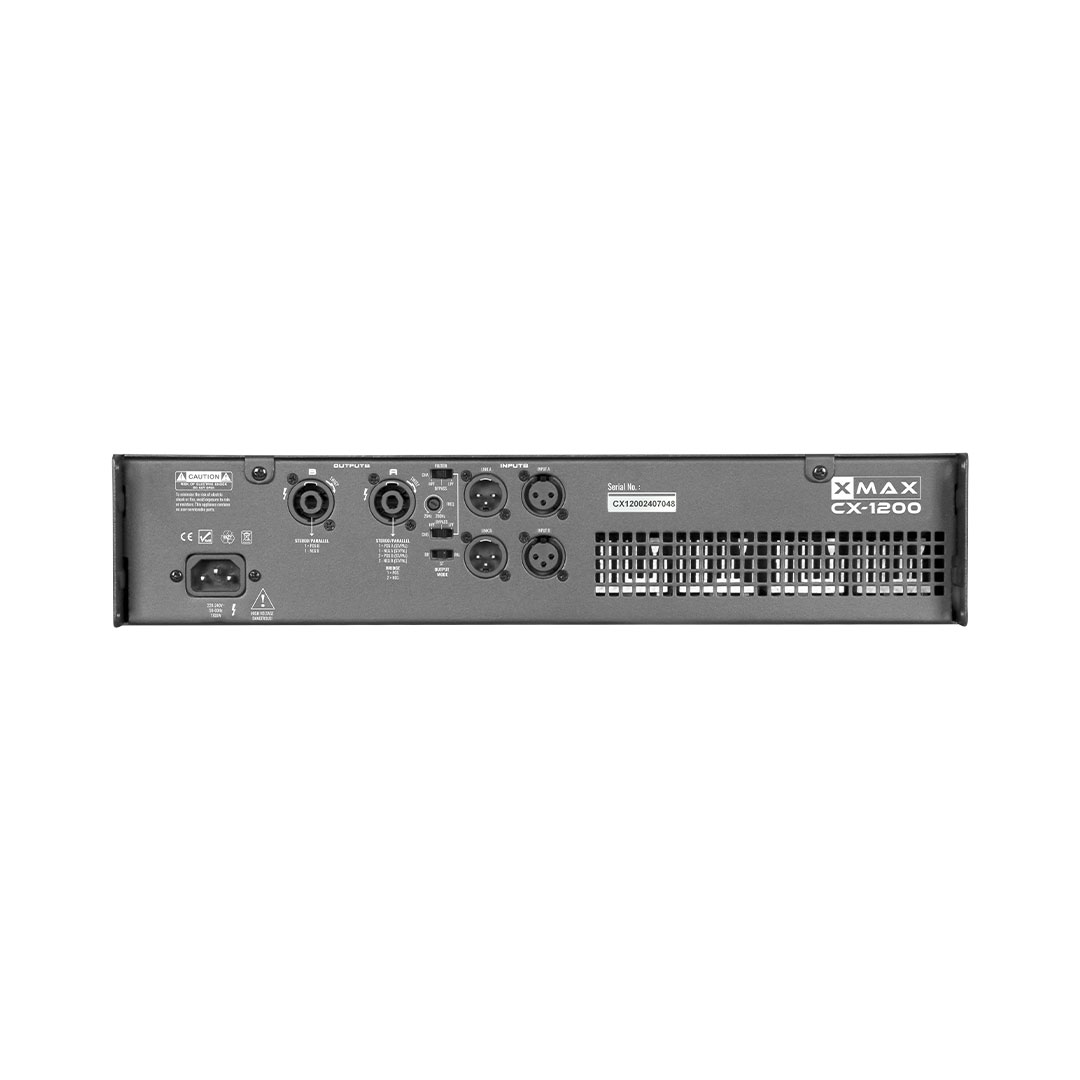

The CX-1200 is a 2-channel, 19″ 2U rack-mountable power amplifier with front panel controls, and LED indicators for signal, limit and protection, offering a low cost alternative with maximum output. Speakon, XLR inputs and link-thru outputs are located on the rear panel. A filter switch is available for both channels, and a frequency control and output mode switch for stereo, parrallel input or mono bridge mode.

Technical Specifications
Maximum Power Output: 2 x 400W RMS/8ohm – Stereo/Parallel mode
2 x 600W RMS/4ohm – Stereo/Parallel mode
1 x 1200W RMS/8ohm – Mono Bridge Mode
Output Connections: Speakon and binding
Frequency Response: 20Hz-20kHz, ± 1dB
Protection: Soft start, short circuit, limiter, DC fault, AC line fuse, thermal cut
Cooling System: Airflow from front to rear
AC Mains Power Supply: IEC
Weight: 10,5kg
Dimensions (W x D x H): 483 x 356 x 88mm
