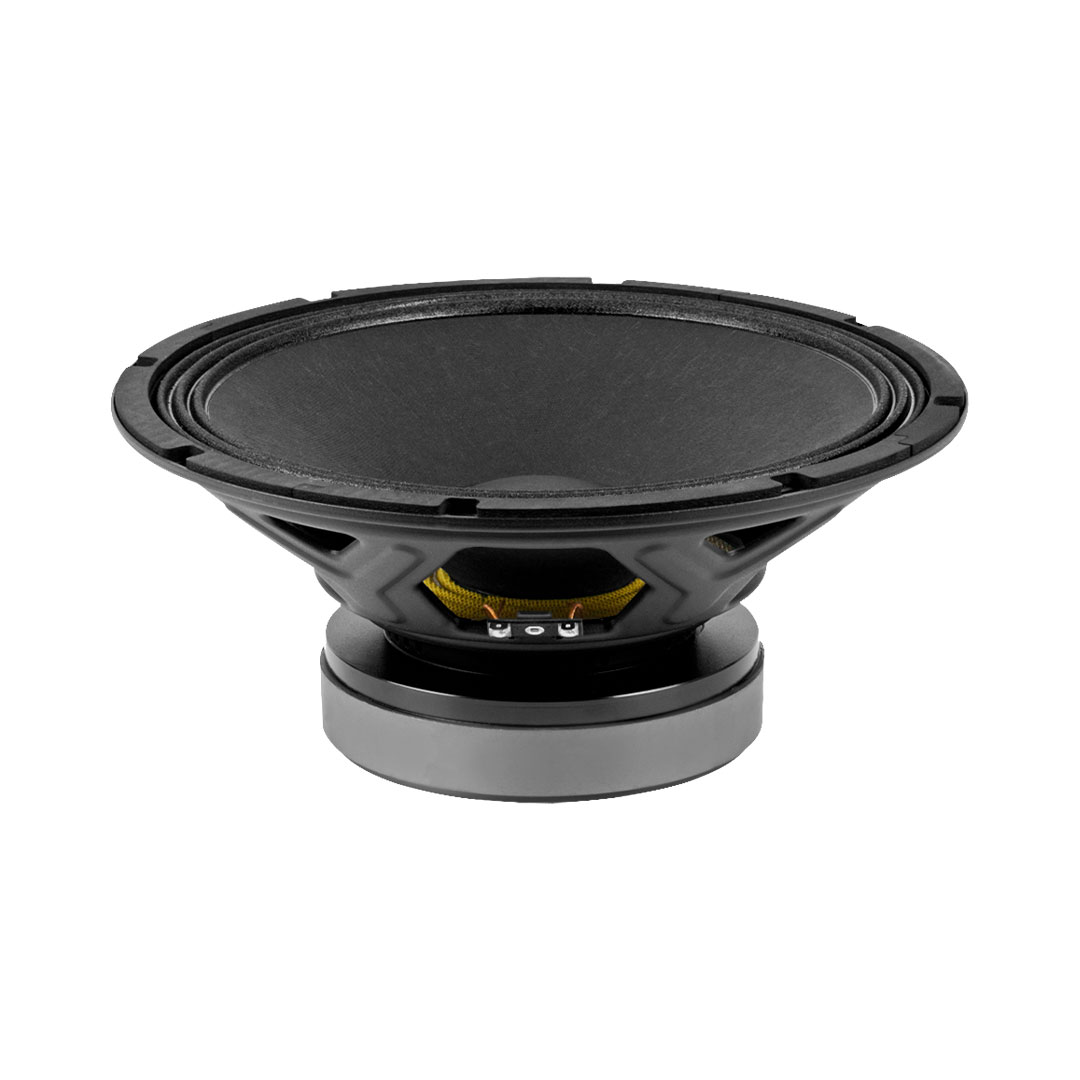

12MCS500 – Low & mid frequency transducer

The Beyma 12MCS500 is a high-efficiency professional loudspeaker designed for demanding two- or three-way PA systems and line array applications. It delivers 1,000 W programme power handling via a 2.5-inch copper wire voice coil and Beyma’s Malt Cross® cooling system, which reduces power compression losses and ensures stable performance. A high sensitivity of 98 dB at 1 W/1 m is combined with an FEA-optimised magnetic circuit and an aluminium demodulating ring for clean, low-distortion output. The optimised pressed steel frame and weatherproof cone treatment on both sides provide long-term reliability in professional environments.

Technical Specifications
Nominal diameter: 300 mm 12 in
Rated impedance: 8 Ω
Minimum impedance: 7.3 Ω
Power capacity: 500 W AES
Program power: 1000 W
Sensitivity: 98 dB 1W / 1m @ ZN
Frequency range: 65 – 5000 Hz
Voice coil diameter: 63.5 mm (2.5”)
BI factor: 17.6 N/A
Moving mass: 0,059 kg
Voice coil length: 19.5 mm
Air gap height: 9.5 mm
X damage (peak to peak): 40 mm
