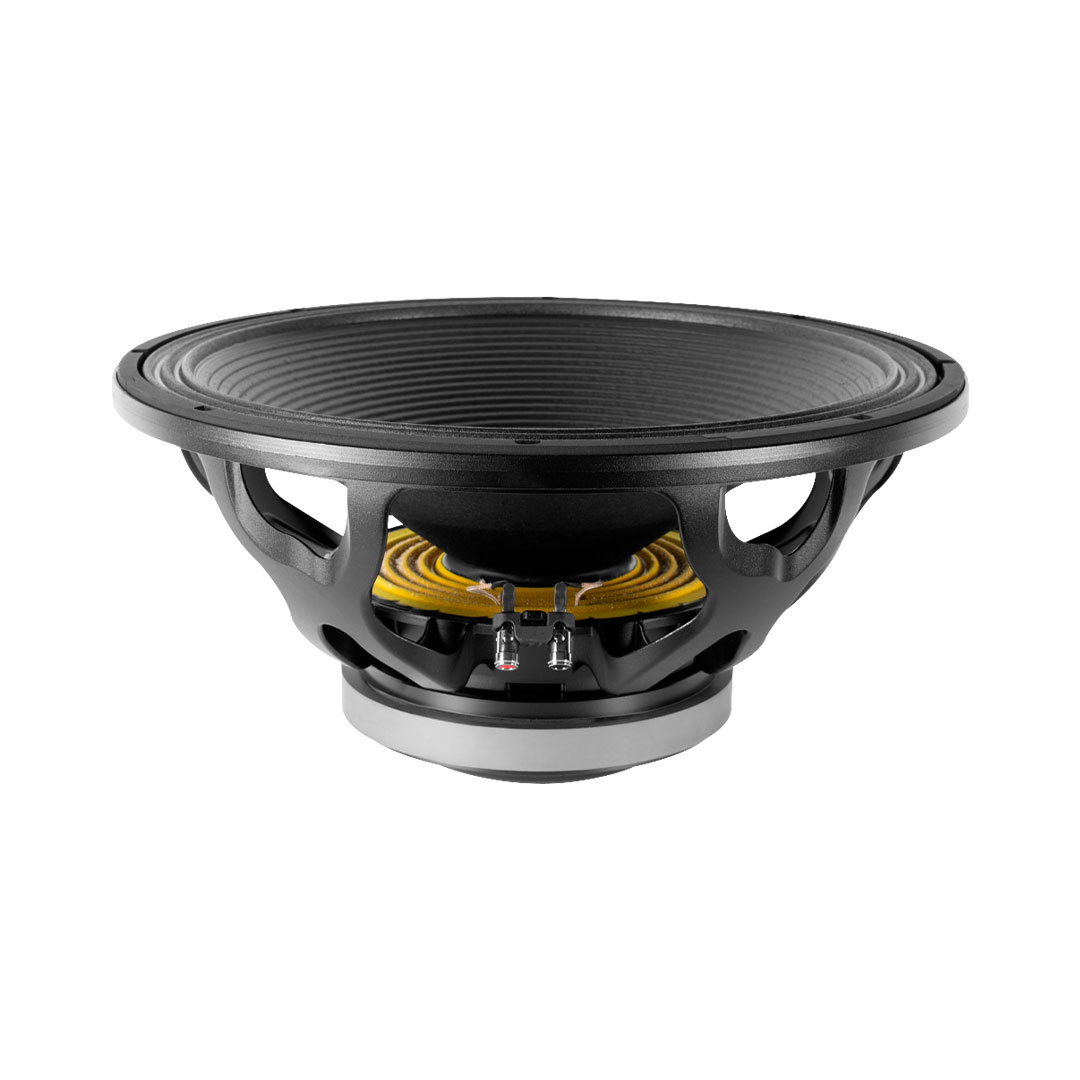

18LEX1200Fe– Low frequency transducer

The Beyma 18LEX1200Fe is a high-power, low-distortion 18-inch subwoofer engineered for demanding professional bass applications. It features Beyma’s exclusive Malt Cross® cooling system to reduce power compression losses and ensure stable output at high levels, combined with a high sensitivity of 97 dB at 1 W/1 m. An FEA-optimised ceramic magnetic circuit, aluminium demodulating ring, ultra-low air noise design, and optimised linear behaviour deliver clean and controlled low frequency performance. The weatherproof treated cone, double silicone spider, and robust 4-inch DUO double layer in and out copper voice coil support extended controlled displacement of ±11 mm Xmax and a 48 mm peak-to-peak excursion, making it ideal for direct radiation and band-pass subwoofer applications.

Technical Specifications
Nominal diameter: 460 mm (18”)
Rated impedance: 8 Ω
Minimum impedance: 5.8 Ω
Power capacity: 1200 W AES
Program power: 2400 W
Sensitivity: 97 dB 1W / 1m @ ZN
Frequency range: 40 – 1000 Hz
Recom. enclosure: Vb = 172 l
(Bass/reflex design): Fb = 42 Hz
Voice coil diameter: 101.6 mm (4”)
BI factor: 23.2 N/A
Moving mass: 200 g
Voice coil length: 27 mm
Air gap height: 12 mm
X damage (peak to peak): 48 mm
