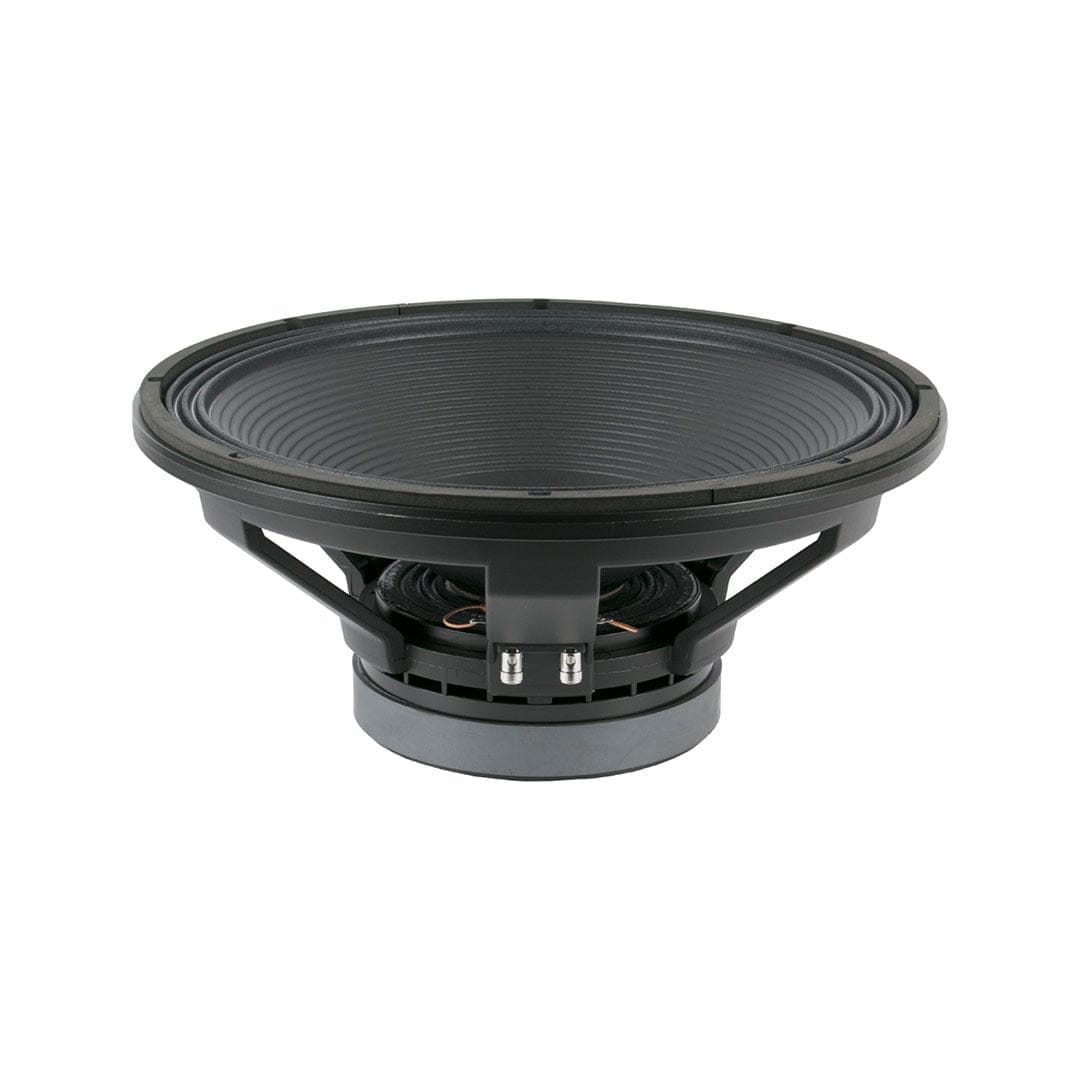

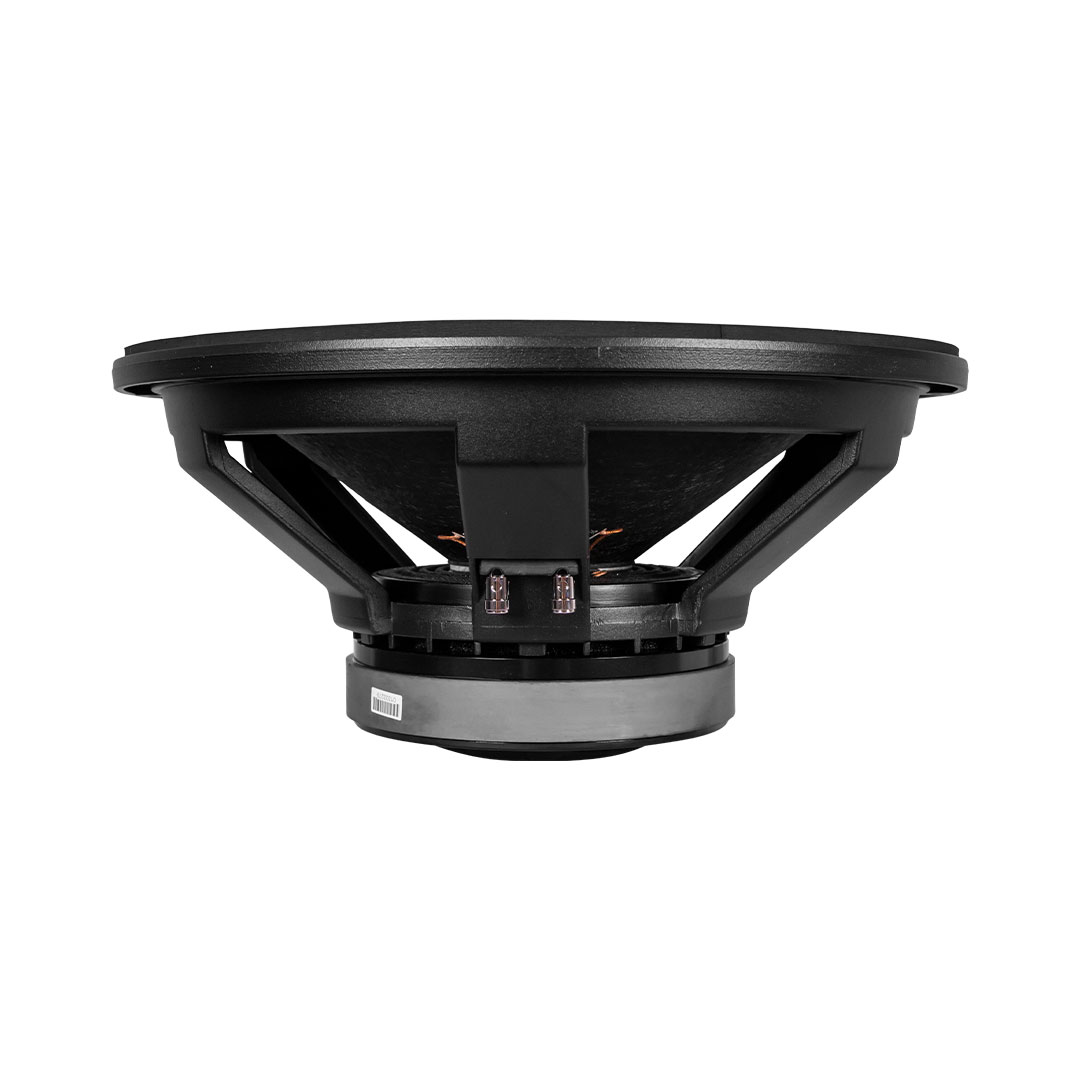

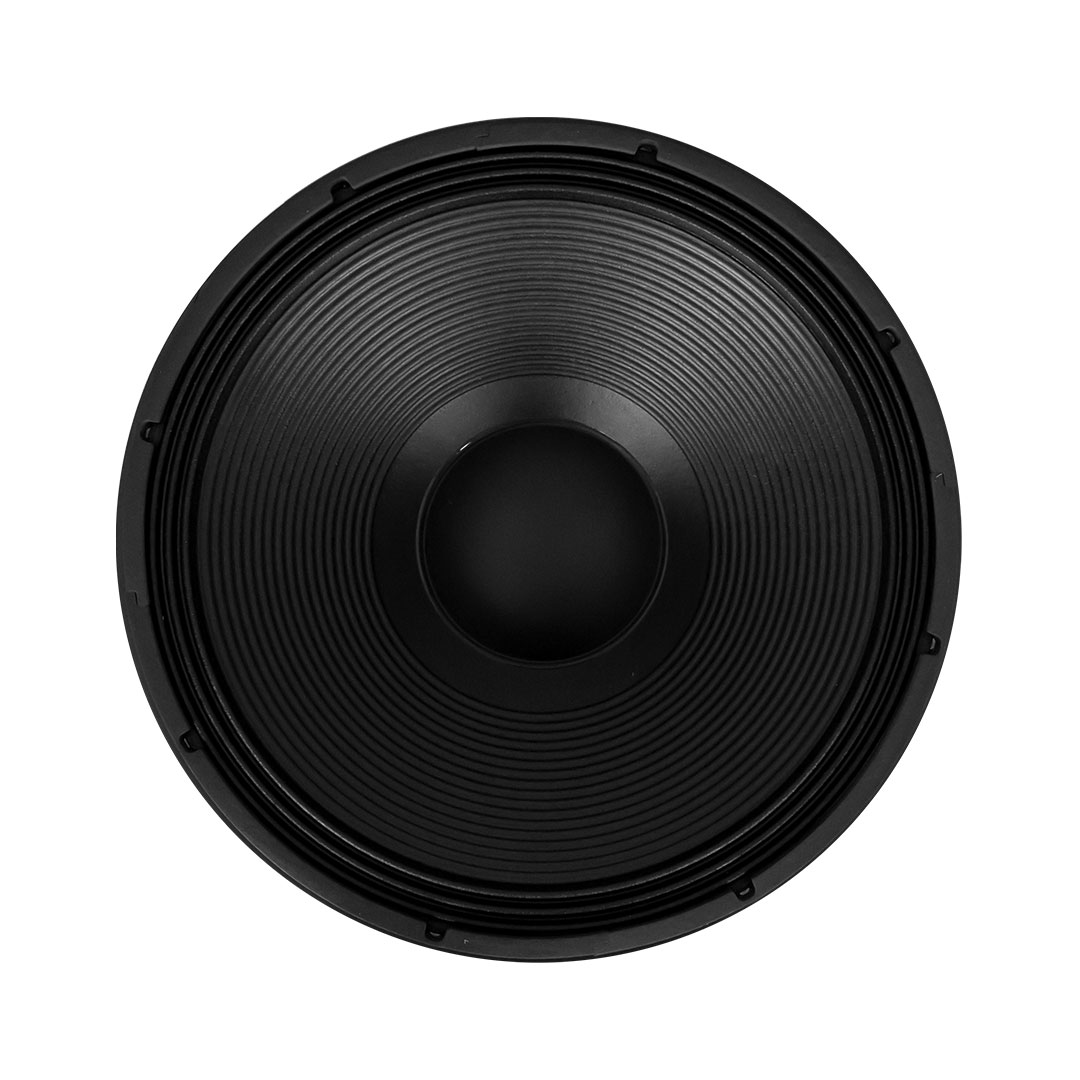

18P1000Fe V2 – Low frequency transducer

The Beyma 18P1000Fe V2 is a high-power 18 inch loudspeaker engineered for demanding low frequency applications requiring strong output and precise control. It delivers an impressive 2,400 W programme power handling through a robust 4 inch copper voice coil, ensuring high efficiency with low power compression losses. A high sensitivity of 98 dB at 1 W/1 m is supported by an FEA-optimised magnetic circuit for accurate and controlled performance. The weatherproof cone treatment on both sides, durable CONEX spider, and high excursion capability with ±8 mm Xmax provide extended low frequency response and reliable operation under high power conditions.

Technical Specifications
Nominal diameter: 460 mm (18”)
Rated impedance: 8 Ω
Minimum impedance: 5.5 Ω
Power capacity: 1200 W AES
Program power: 2400 W
Sensitivity: 98 dB 1W / 1m @ ZN
Frequency range: 30 – 2000 Hz
Recom. enclosure: Vb = 180 l
(Bass/reflex design): Fb = 42 Hz
Voice coil diameter: 101.6 mm (4”)
BI factor: 26.8 N/A
Moving mass: 0.221 kg
Voice coil length: 21 mm
Air gap height: 12 mm
X damage (peak to peak): 52 mm
