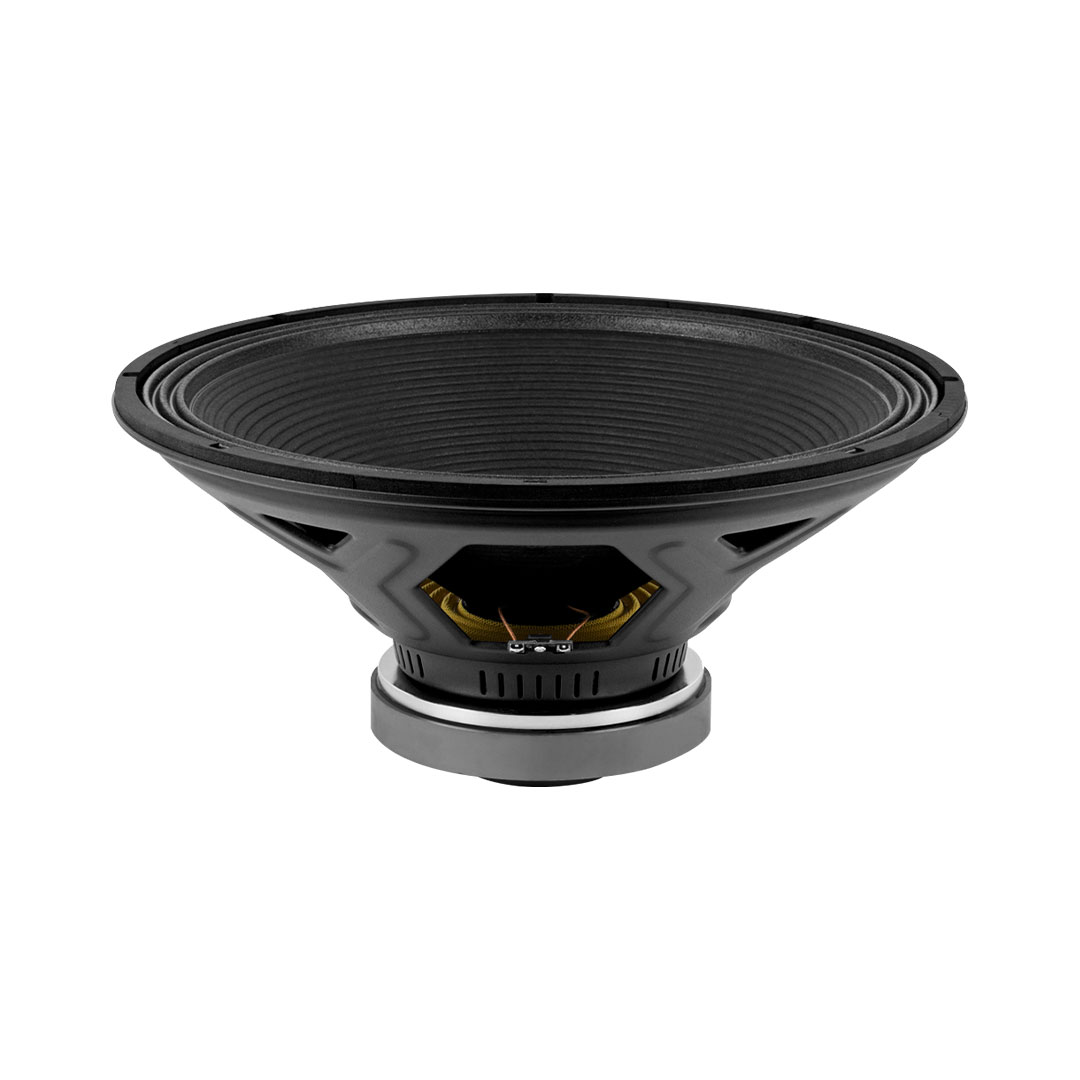

18WRS600– Low frequency transducer

The Beyma 18WRS600 is a low-distortion 18 inch subwoofer designed for high-output direct radiation subwoofer applications. It delivers 1,200 W programme power handling and incorporates Beyma’s exclusive Malt Cross® cooling system to minimise power compression and maintain consistent performance. With a high sensitivity of 97 dB at 1 W/1 m, an FEA-optimised ferrite magnetic circuit, and an ultra-low air noise design, it provides clean and controlled low frequency reproduction with optimised linear behaviour. The weather-resistant treated cone, 3 inch copper voice coil, and optimised pressed steel frame support extended controlled displacement of ±8.5 mm Xmax and a 53 mm peak-to-peak excursion for reliable operation under demanding conditions.

Technical Specifications
Nominal diameter: 460 mm (18”)
Rated impedance: 8 Ω
Minimum impedance: 6.5 Ω
Power capacity: 600 W AES
Program power: 1200 W
Sensitivity: 97 dB 1W / 1m @ ZN
Frequency range: 35 – 1000 Hz
Voice coil diameter: 76.2 mm (3”)
BI factor: 19 N/A
Moving mass: 0,178 kg
Voice coil length: 21.5 mm
Air gap height: 9.5 mm
X damage (peak to peak): 53 mm
