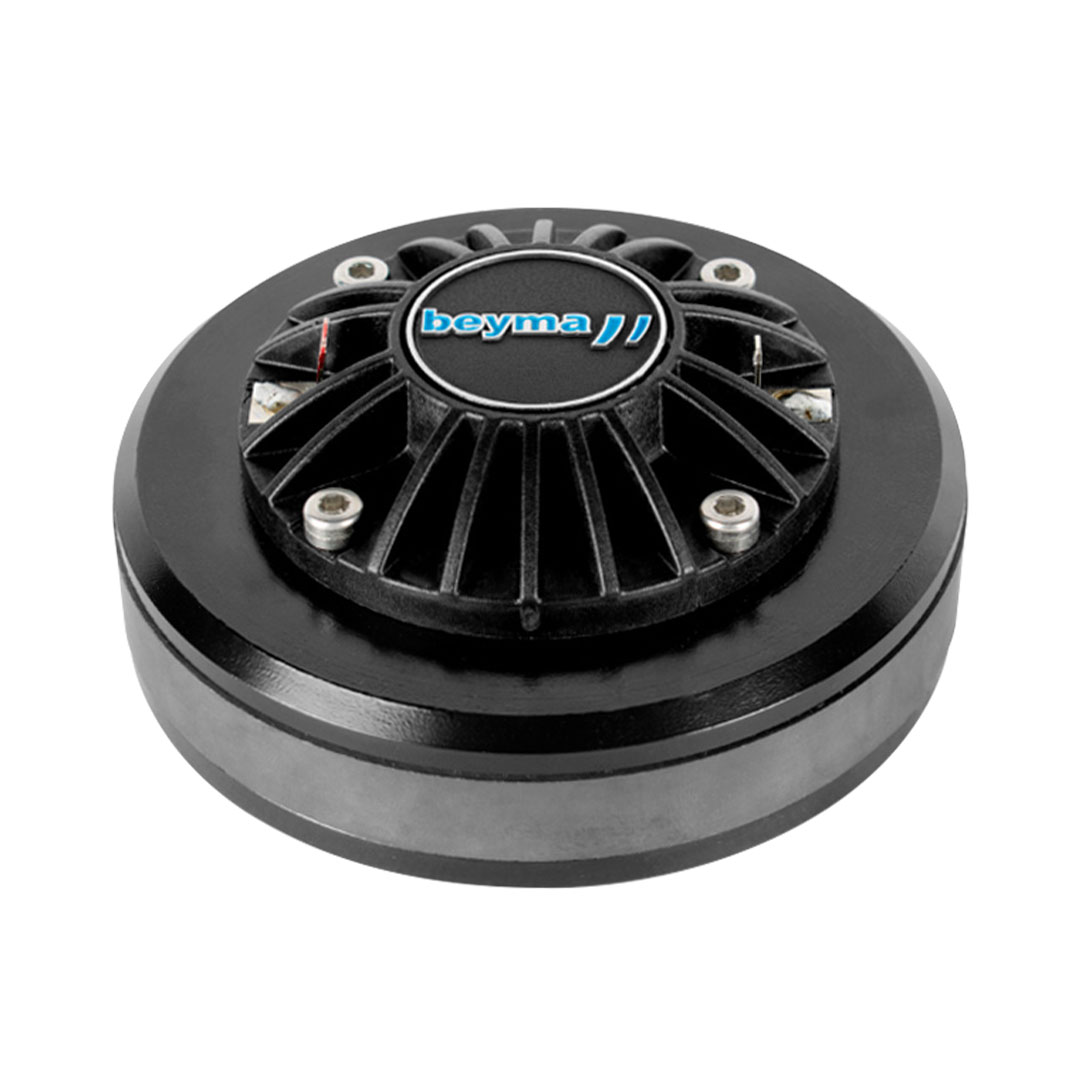

CD-151Fe/PT – Compression driver

The Beyma CD-150Fe/PT is a next-generation, high-performance 1” compression driver designed for superior sound quality and efficiency. It features Deplocex® technology for enhanced thermal dissipation, reduced power compression, and higher power handling, along with a 1.5” copper-clad aluminium voice coil on a Kapton former, delivering up to 140 W program power above 1.8 kHz with 110 dB sensitivity. Incorporating VPEQ® technology and an Advanced Polyester annular ring design optimized via F.E.M. analysis, the driver achieves a linear, extended frequency response with minimized resonances. Additionally, a copper shorting cap ensures low distortion and consistent performance, while the F.E.M.-optimized ceramic magnetic circuit provides precision and reliability for professional audio applications.

Technical Specifications
Throat diameter: 25.4 mm (1”)
Rated impedance: 8 Ω
Minimum impedance: 5.3 Ω
D.C. resistance: 4.5 Ω
Power capacity: 70 W AES above 1.8 kHz
Program power: 140 W above 1.8 kHz
Sensitivity: 110 dB 1 W / 1 m @ ZN coupled to TD-164
Frequency range: 0.9 – 20 kHz
Recommended crossover: 1.8 kHz or higher (12 dB / oct min.)
Voice coil diameter: 38.1 mm (1.5”)
Flux density: 1.6 T
BI factor:  6 N/A
