Beyma CP-755Ti
OUT OF STOCK
R0
Availability: Out of stock

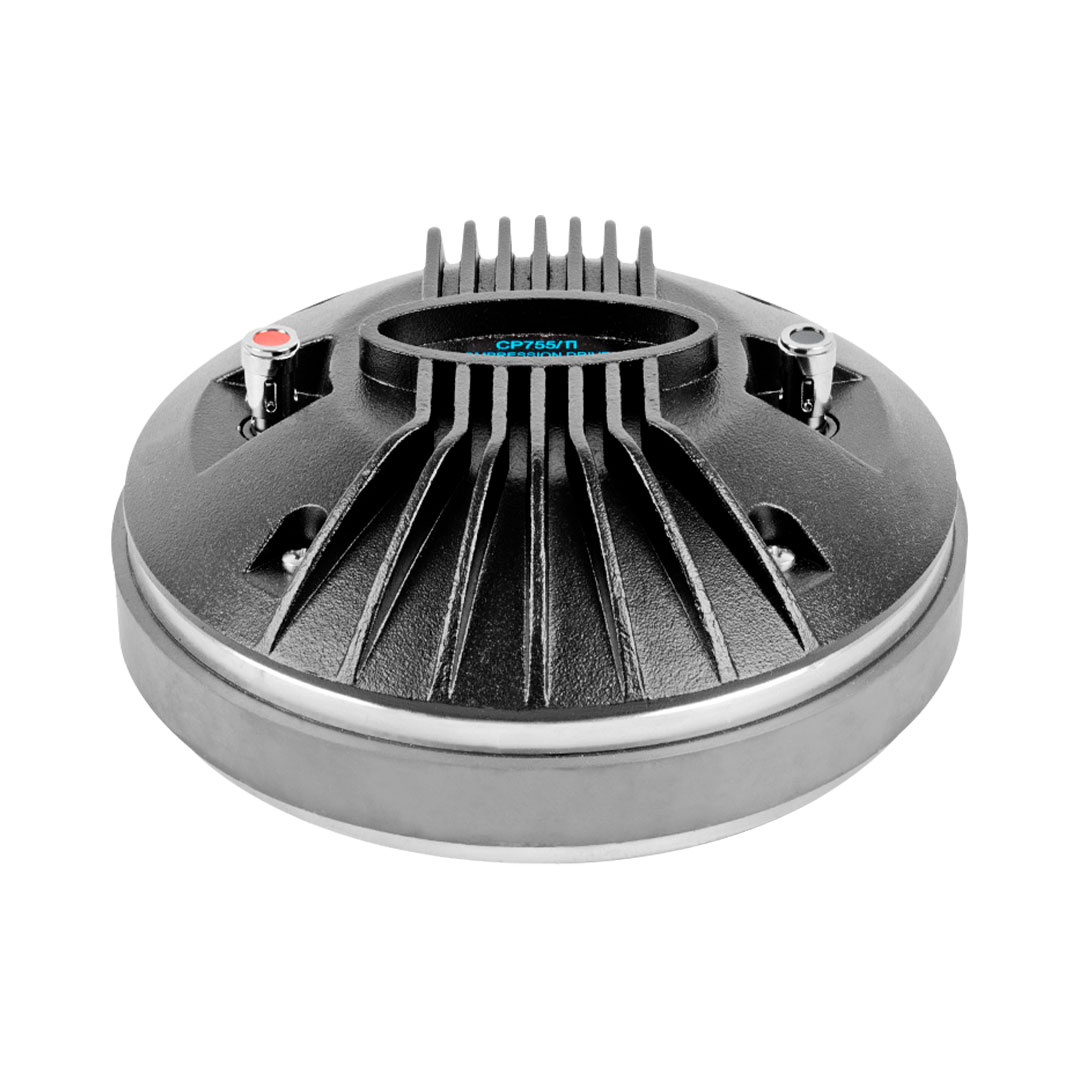

CP-755Ti – Compression driver
This high frequency compression driver features a composite structure diaphragm. It has a Mylar surround to provide damping and avoid resonant peaks typical of metal surrounds. The dome is made of pure titanium, with its unique mechanical properties. This diaphragm combined with a new optimized phasing-plug and a copper ring, results in an extremely smoothed and extended high frequency response.
Technical Specifications
Throat diameter: 36 mm (1.4”)
Rated impedance: 8 Ω
Minimum impedance: 7.3 Ω @ 3.5 kHz
D.C. resistance: 5.5 Ω
Power capacity: 70 W AES above 0.8 kHz; 90 WAES above 1,5 kHz
Program power: 140 W above 0,8 kHz; 180 W above 1,5 kHz
Sensitivity: 110 dB 1W / 1m @ ZN coupled to TD-565 horn
Frequency range: 0,6 – 20 kHz
Recommended crossover: 0,8 kHz or higher (12 dB/oct min.)
Voice coil diameter: 72,2 mm (2,8”)
Magnetic assembly weight: 6,5 kg; 14,3 lb
Flux density: 1.875 T
BI factor: 10 N/A
