The SONAR Xi models are fullrange speakers designed for use as a stand-alone speaker, in front PAs, as stage monitors and as very powerful mid-high units in subwoofer-and-satellite systems. Their elegant yet robust polymer enclosures are tough enough to withstand years of hard wear on the road. A steel grille with acoustic foam backing protects the loudspeakers from knocks, dust and splashed water.

The SONAR 110 Xi is an extremely compact active speaker that comes into its own as a full-range speaker, as an inconspicuous stage monitor or as a satellite in combination with a subwoofer. Powerful components and meticulous HK Audio acoustic engineering guarantee a rich and powerful sound.

SONAR 110 Xi offers three input channels: two for microphone or line signals plus one AUX channel, which receives analogue signals as well as via Bluetooth 5.0. Music can be streamed in stereo to two SONAR Xi speakers via Bluetooth TWS (True Wireless Stereo). The volume and 3-band EQ for each channel can be adjusted intuitively using the rotary control and colour display. Thanks to the free SONAR REMOTE app (for iOS and Android), all functions can also be controlled remotely for added convenience.

General Specifications

• Max. SPL Peak @ 10 % THD:  123 dB half space
• Frequency Response -10 dB:  59 Hz – 20 kHz
• Amplifier Output (Peak Power):  800 W
• Active Protection Circuits:  RMS and peak limiter
• Low/Mid Speaker:  1 X 10″, 2″ voice coil
• HF driver:  1″, 1″ voice coil
• Horn characteristics:  90° X 60° CD horn
• Display:  Colour display

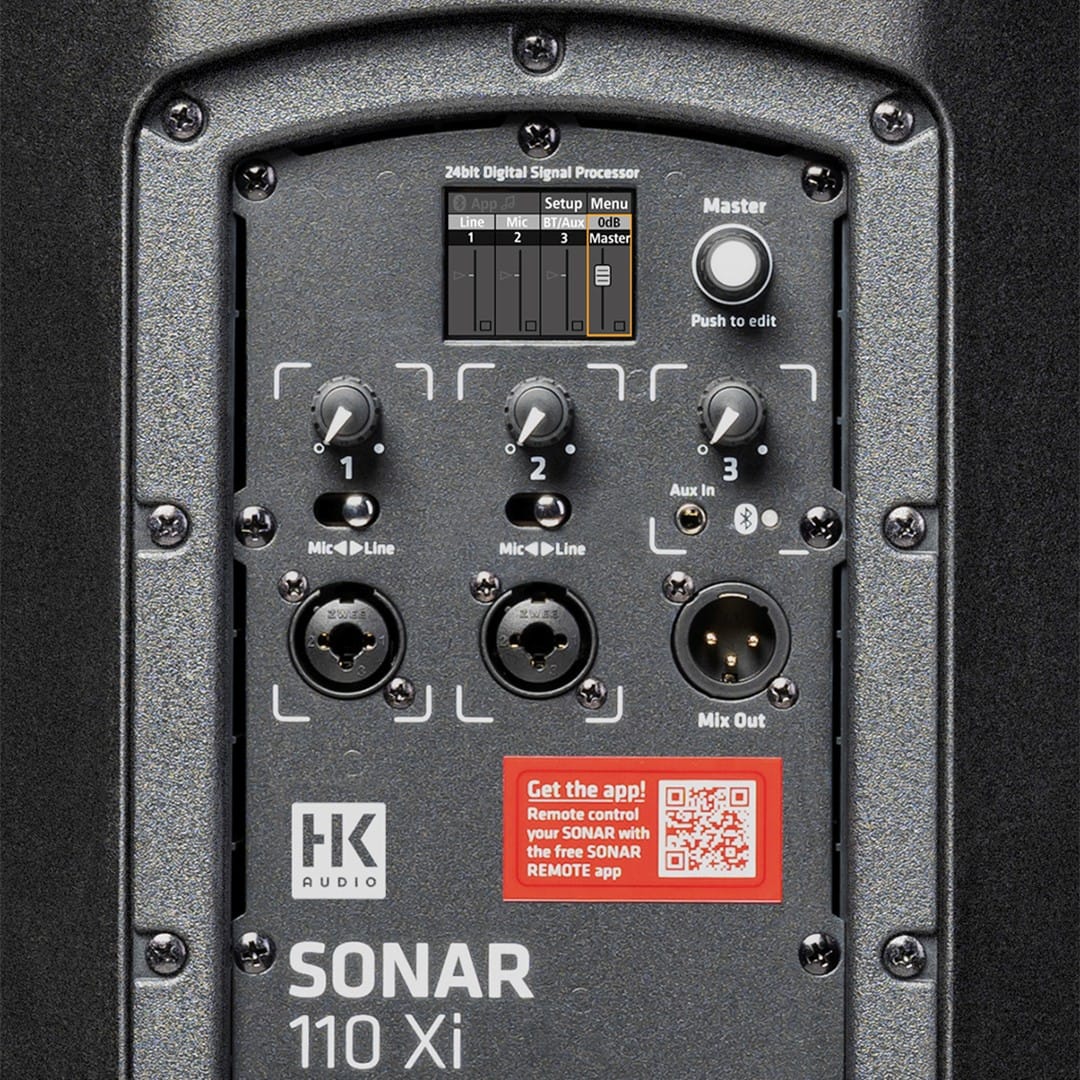

• Audio Inputs:  2X XLR/jack combo balanced, 1 x Aux In mini jack
• Audio Outputs:  1X XLR XLR Mix Out balanced
• Sensitivity Switch:  Mic/Line
• Sound Modes:  Live/DJ/Monitor
• Setup Modes:  External sub
• Bluetooth:  5.0
• Delay:  0-10 meter
• Pole Mount:  TiltUnit 0°/7.5°
• Rigging Points:  3X M10
• Carrying Handles:  1, SingleGrip
• Housing:  Moulded plastic
• Finish:  Black
• Front grille:  Metal grille backed with black acoustic foam
• Dimensions (WxHxD):  31cm X 53.5cm X 30cm
• Weight:  11.5 kg / 25.4 lbs
