HH TNA-2120SA

0 customer reviews
Check stock before ordering
View details

R0.00

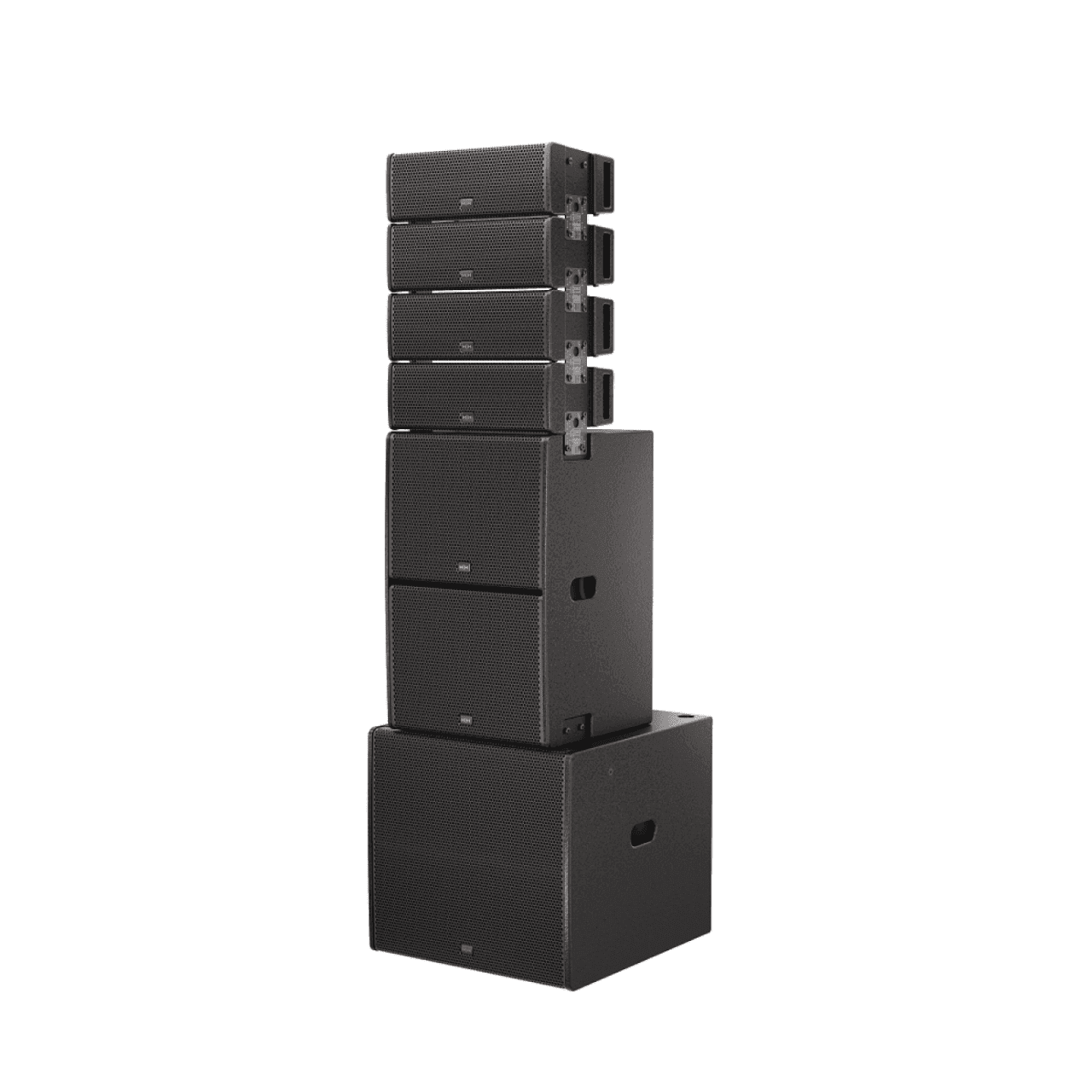

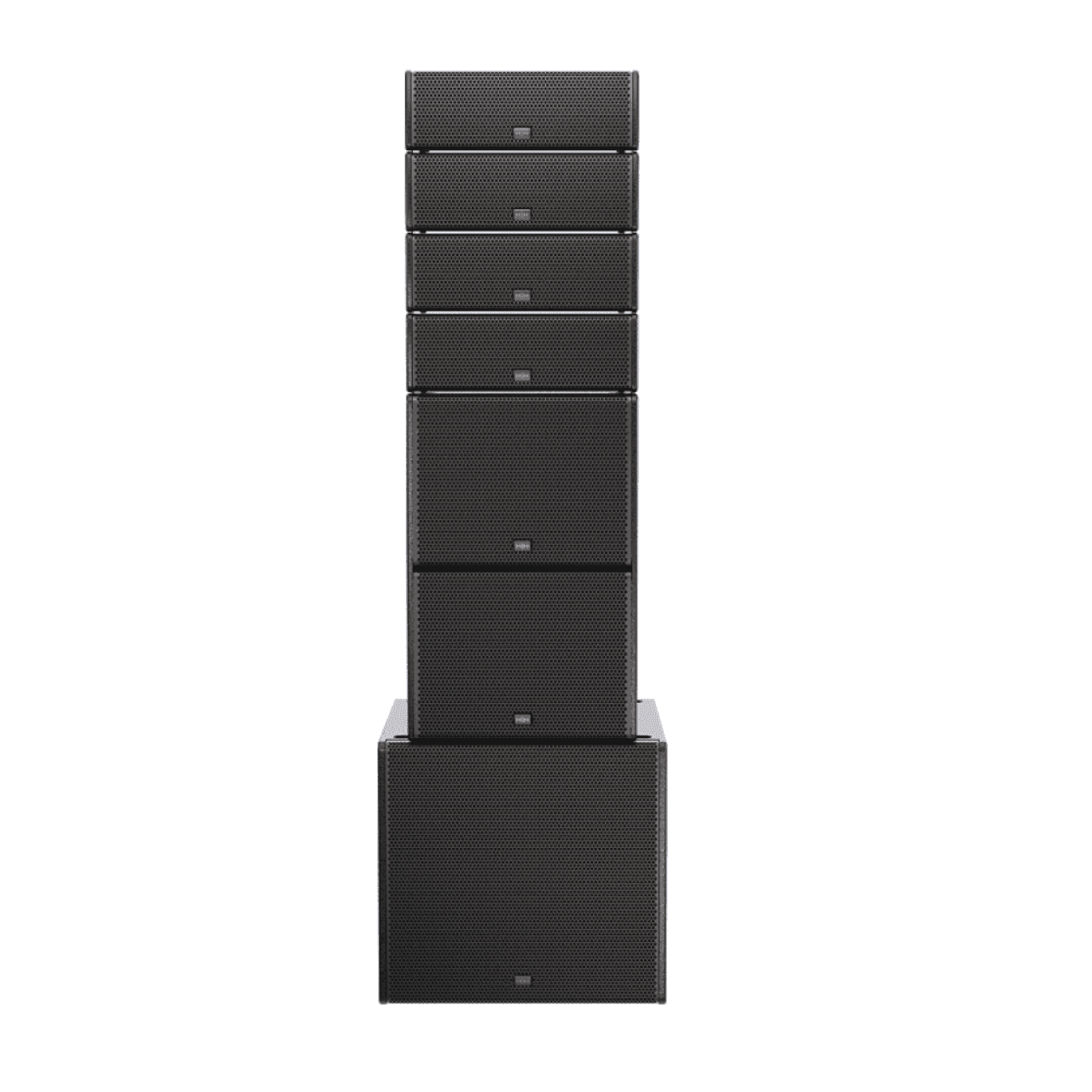

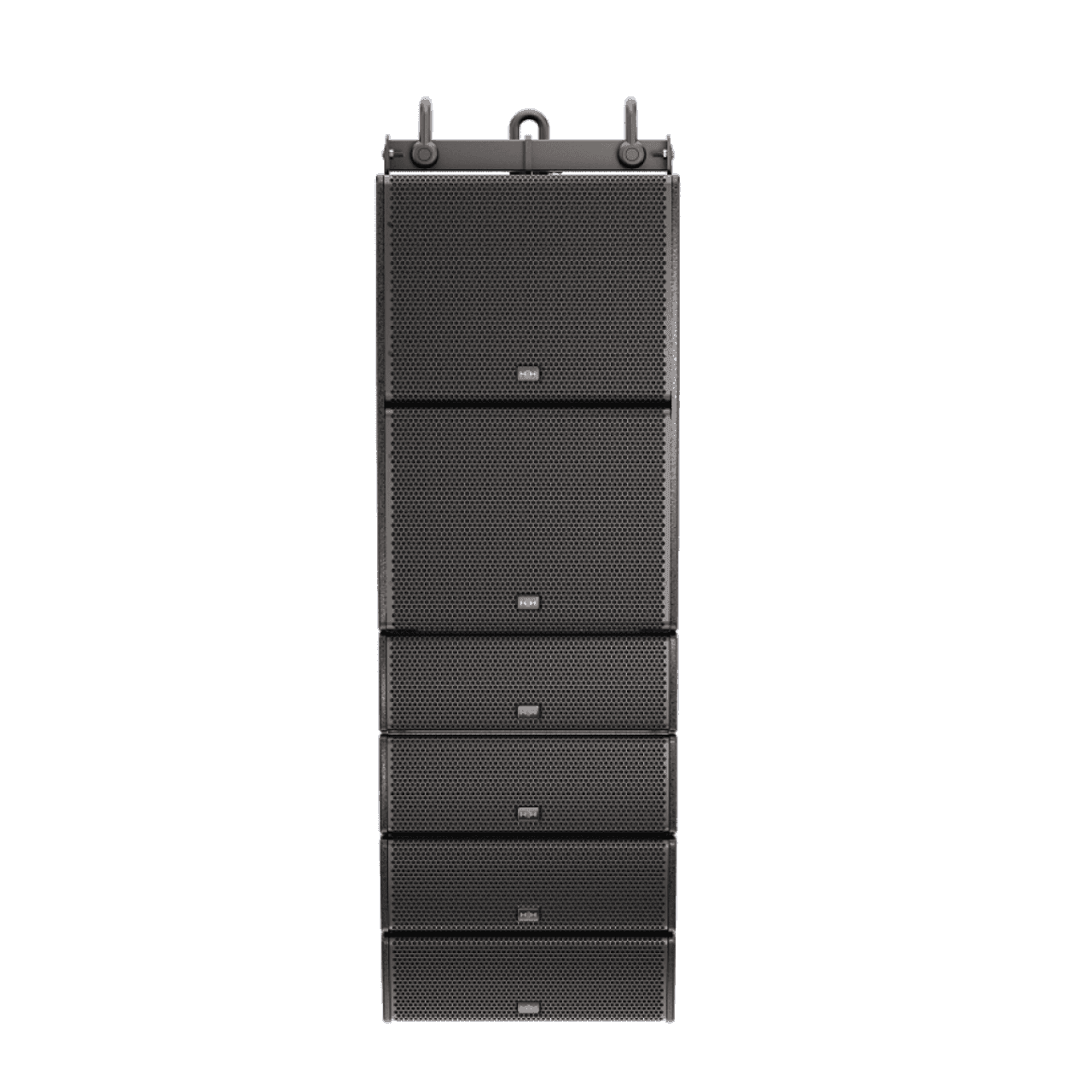

The TNA-2120SA is a multi-channel active subwoofer for powering a complete TNA line array system.

Availability: Out of stock

Add to quote
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Categories: Brand:

Product Description

The TNA-2120SA is a multi-channel active subwoofer for powering a complete TNA line array system. The TNA-2120SA features two high-power 12-inch low-frequency woofers with exceptionally high output. The TNA-2120SA active subwoofer houses three channels of high-performance amplification and cutting-edge built-in DSP presets. As a modular system, the TNA-2120SA is capable of powering up to 6 x TNA-2051 line array satellite cabinets. With Integrated rigging hardware, an optional suspension bracket, and dolly board, the TNA-2120SA can be installed quickly and easily. The TNA-2120SA offers a max SPL of 137dB and offers a frequency response as low as 35Hz. When combined upto six TNA-2051’s, the TNA-2120SA offers an ideal venue installation or point source solution without the extra expense of rack amplifiers and processors. Ideal for venues, schools, sports, gyms, hotels, and more.

Specifications

  • System Type:  2 x12-inch Active Subwoofer, Bass Reflex, with Three channel internal amplifier (Two HF Amplifier Channels for external satellites)
  • Frequency Response (-10):  52Hz – 200Hz
  • Frequency Response (-3):  52Hz – 150Hz * Tuned with internal DSP Presets
  • LF Driver:  2 x 12-inch HH-designed high-performance driver
  • Max SPL:  134dB continuous, 137dB Peak
  • Power:
    • System Amplifier Power Rating: 4800W Peak, 2400W Continuous, 1200W RMS
    • Subwoofer Amplifier Power Rating: 2400W Peak, 1200W Continuous, 600W RMS
    • Satellite Amplifier Power Rating: Two Channels of 1200W Peak, 600W Continuous, 300W RMS
  • Inputs:  Balanced XLR Connector
  • Outputs:  1 x Balanced XLR Link Out, 1 x Balanced XLR Sub out with 2 way/3 way mode switch and Ground Lift Switch. 2 x locking speakon connectors for external TNA-2051 cabinets
  • Indicators:  Power, Mute/Protect, Clip Indicator, Preset Mode
  • DSP:  56bit DSP controlling Crossover, EQ, phase, and time optimization for array cabinets. Six built-in DSP presets for typical use cases
  • Protection:  Comprehensive protection and clip-free limiting + clip indicator
  • Controls:  Master Volume, DPS Preset Switch
  • Input Impedance (Bal/Unbal):  22K Balanced, 10K unbalanced
  • Cabinet:  15mm Plywood
  • Grille:  1.5mm Thickness, Hexagonal mesh
  • Mounting Points:  8 x M8 fixings for included metal side brackets, and optional TNA-BRK1 flying bracket assembly
  • Finish:  Painted Black (White finish optional, subject to MOQ)
  • Accessories:  TNA-DF1 – Dolly frame
  • Mounting Bracket:  TNA-BRK1
  • Unit Dimensions:  (Hwd) 730 x 475 x 460mm, 28.7″ x 18.7″ x 18.1″
  • Unit Weight:  36.7Kg, 80.9 lbsCarton Dimensions (Hwd) 910 x 610 x 580mm, 35.8″ x 24″ x 22.8″ , 0.322 M3
  • Packed Weight:  42.8Kg, 94.4 lbs
